Domus Lighting LED Profiles Domus Nova-24 SM 24X10MM 2.5M C/W Opal Diff & Ec
Domus Nova-24 SM 24X10MM 2.5M C/W Opal Diff & Ec
Domus Nova-24 SM 24X10MM 2.5M C/W Opal Diff & Ec
Domus Lighting LED Profiles Domus Nova-24 SM 24X10MM 2.5M C/W Opal Diff & Ec
Domus Nova-24 SM 24X10MM 2.5M C/W Opal Diff & Ec
Domus Nova-24 SM 24X10MM 2.5M C/W Opal Diff & Ec
Loading... + Add to wishlist - Remove from wishlist
Domus Lighting
SKU: 22957

Domus Nova-24 SM 24X10MM 2.5M C/W Opal Diff & Ec

Colour: Aluminium
$50.95
$50.95
Product Description
Product Description
x

The Domus NOVA-24 SM is a surface-mounted aluminium LED profile — 2.5 m, with a flat opal PMMA diffuser and end caps, in three finishes, cut to length.

⭐ What does “24 × 10 mm” actually measure? It depends on the range.

⭐ We checked three Domus profile families against their published dimensions, and the convention changes:

Range Title says Published dimension ⭐ So the title is…
Micro 8 × 9 mm Profile W 10.9 × H 9.1 mm ⭐ the CHANNEL — ⚠ the profile is 2.9 mm wider
Nova-17 17 × 7 mm Surface profile W 17 × H 8 mm ⭐ the PROFILE — ⭐ the width matches exactly
⭐ Nova-24 (this) 24 × 10 mm W 23.5 × H 11 mm ⚠ near the profile, but neither exactly
  • ⭐ So the number in a Domus profile title is not a reliable guide to what you need to rout. ⚠ On the Micro it is the space inside; on the Nova-17 it is the fitting itself. ⭐ Those are different numbers with different consequences.
  • ⭐ The practical rule that always holds: never rout to a title number. ⭐ Ask for the actual profile dimension, and add your working tolerance.
  • ⭐ On a SURFACE profile like this one the stakes are much lower — ⭐ you are not cutting anything, so a millimetre of uncertainty costs nothing. ⚠ It is the recessed versions where this matters.
✅ One thing this range does get right

⭐ Its length is unambiguous. ⭐ The title says 2.5 m and the order code in its own body is LP-2410-SM-2.5M — ⭐ they agree. ⚠ That is not true of the Nova-17 recessed listings, which say 2.5 m in the title and carry a 3M order code. ⭐ So on the Nova-24 you can plan the run with confidence.

⭐ Why 2.5 m rather than 3 m

⚠ Domus does not say. ⭐ A plausible reason is weight and handling: at 24 mm wide and 11 mm deep this is a heavier extrusion than the Nova-17, and a longer stick of it is more prone to bending in transit and on site. ⭐ Offered as reasoning, not fact. ⭐ What matters practically is the joint count: a 5 m run is two pieces either way, but a 6 m run is three at 2.5 m and two at 3 m.

⛔ It does not light up on its own

⛔ No strip, no driver. ⭐ “C/W Opal Diff & Ec” is the diffuser and end caps. ⭐ Designed for the Domus IP54 strip range.

✅ The specification
Specification Value
Installation ⭐ Surface mounted — no groove required
Length ⭐ 2.5 m — title and order code AGREE
Nominal size 24 × 10 mm — ⚠ published as W 23.5 × H 11
Diffuser Flat opal PMMA

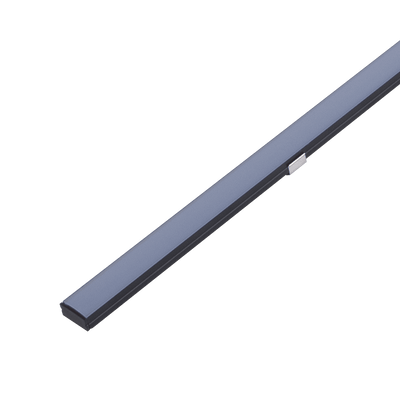

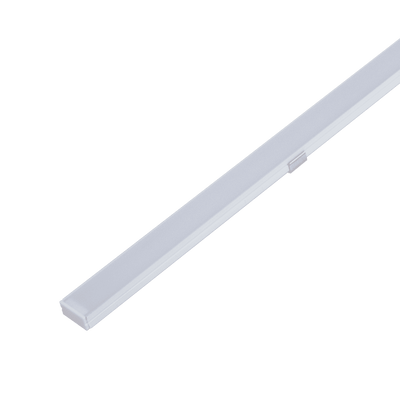

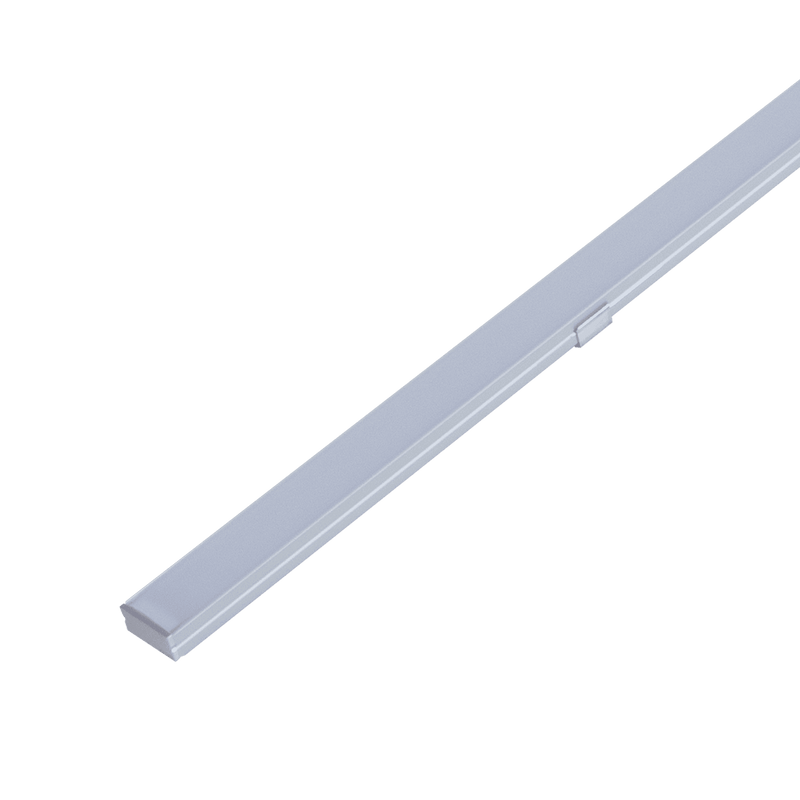

Material / finish Extruded aluminium — aluminium, black or white
Compatible strip Domus IP54 range — ⛔ not included
⛔ Driver ⛔ Not included
Supplied with End caps
Order code ⭐ LP-2410-SM-2.5M
⛔ Made to order, cut to length

No lead time is published. Call our team to confirm. ⭐ We will.

Where it works
  • Under-bench, shelving and pelmets — ⭐ where a wider strip suits.
  • ⭐ Retrofit — ⭐ no routing, so the width uncertainty costs nothing.
  • Runs to 2.5 m in one piece.
  • ⛔ Not on a bowed run — ⚠ the wave will show.
  • ⛔ Not without a strip and driver.
Specifying it

Surface-mounted LED strip profile, 2.5 m, nominal 24 × 10 mm (published W 23.5 × H 11). Flat opal PMMA diffuser and end caps. Extruded aluminium in aluminium, black or white. Cut to length. For the Domus IP54 strip range. Order code LP-2410-SM-2.5M. ⭐ THE NUMBER IN A DOMUS PROFILE TITLE MEANS DIFFERENT THINGS IN DIFFERENT RANGES — on the Micro it is the CHANNEL (8×9 against a 10.9mm profile); on the Nova-17 it is the PROFILE (17mm exactly); here it is near the profile but neither exactly. ⭐ NEVER ROUT TO A TITLE NUMBER. ✅ On this surface version that costs nothing, since you cut nothing. ✅ And its length is unambiguous: title and order code agree at 2.5m.

Supplied and supported by Lights For You.

Questions
What does "24 x 10mm" actually measure?

Not what you would assume, and not the same thing across ranges. We checked three Domus profile families: on the Micro, "8x9mm" is the channel and the profile is 10.9mm wide. On the Nova-17, "17x7mm" is the profile — the surface width is exactly 17mm. On this Nova-24, the published figures are 23.5 x 11mm, which is near the profile but neither number exactly.

So what should I rout to?

Never a title number. Ask for the actual profile dimension and add your working tolerance. On this surface-mounted version the stakes are low — you are not cutting anything, so a millimetre of uncertainty costs nothing. It is the recessed versions where this matters, because a groove cannot be un-cut.

Is the 2.5m length reliable?

Yes, and that is worth saying because it is not true everywhere in this family. The title says 2.5m and the order code in its own body is LP-2410-SM-2.5M — they agree. The Nova-17 recessed listings say 2.5m in the title and carry a 3M order code, which is a genuine conflict. Here you can plan the run with confidence.

Why is the Nova-24 only 2.5m when the Nova-20 is 3m?

Domus does not say. A plausible reason is weight and handling: at 24mm wide and 11mm deep this is a heavier extrusion than the Nova-17 or Nova-20, and a longer stick is more prone to bending in transit and on site. That is reasoning rather than fact. What matters practically is the joint count — a 5m run is two pieces either way, but a 6m run is three at 2.5m and two at 3m.

Does it include a strip?

No, and no driver. "C/W Opal Diff & Ec" means complete with the opal diffuser and end caps. It is designed for the Domus IP54 strip range. Tell us the run lengths and we will quote all three parts together.

Why choose the Nova-24 over the Nova-17?

Width. A 24mm channel takes a wider strip than a 17mm one, which generally means more output per metre and more strip options. If the run is doing real work — lighting a bench rather than marking a line — the wider channel is the better starting point.

Does it need any preparation?

None. Surface profiles clip to the face, so they retrofit into finished joinery and can be moved if the layout changes. What they do need is a straight run — the clips hold the profile true but cannot straighten a bowed shelf, and a wave in the substrate shows in the line of light.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKUsLP-2410-SM-2.5M — 22957 Aluminium, 22958 Black, 22959 White
⭐ MICRO "8X9MM"Profile is W10.9 × H9.1 — ⭐ the title is the CHANNEL
⭐ NOVA-17 "17X7MM"Surface profile W17 × H8 — ⭐ the title is the PROFILE
⚠ NOVA-24 "24X10MM" (this)Published W23.5 × H11 — ⚠ near the profile, neither exactly
⭐ SO THE RULENEVER rout to a title number — ⭐ ask for the actual profile dimension
✅ On a SURFACE profileThe uncertainty costs nothing — ⭐ you cut nothing
✅ LENGTH IS UNAMBIGUOUS HERETitle 2.5m · order code LP-2410-SM-2.5M — ⭐ they AGREE
⚠ Unlike the Nova-17 recessedWhich says 2.5m in the title and 3M in the code
⭐ Why 2.5m not 3m⚠ Domus does not say — ⭐ plausibly weight and handling on a heavier extrusion
⭐ Joint countA 5m run is two pieces either way — ⚠ a 6m run is three at 2.5m, two at 3m
⛔ Strip / driverNeither included — Domus IP54 strip range

Variant specifications

RangeTitlePublishedTitle means
Micro8 × 9W10.9 × H9.1⭐ The CHANNEL
Nova-1717 × 7W17 × H8⭐ The PROFILE
⚠ Nova-2424 × 10W23.5 × H11⚠ Neither exactly
