Domus Lighting LED Profiles Domus Nova-17 REC 17X7MM 2.5M C/W Opal Diff & Ec
Domus Nova-17 REC 17X7MM 2.5M C/W Opal Diff & Ec
Domus Nova-17 REC 17X7MM 2.5M C/W Opal Diff & Ec
Domus Lighting LED Profiles Domus Nova-17 REC 17X7MM 2.5M C/W Opal Diff & Ec
Domus Nova-17 REC 17X7MM 2.5M C/W Opal Diff & Ec
Domus Nova-17 REC 17X7MM 2.5M C/W Opal Diff & Ec
Loading... + Add to wishlist - Remove from wishlist
Domus Lighting
SKU: 22107

Domus Nova-17 REC 17X7MM 2.5M C/W Opal Diff & Ec

Colour: Aluminium
$28.95
$28.95
Product Description
Product Description
x

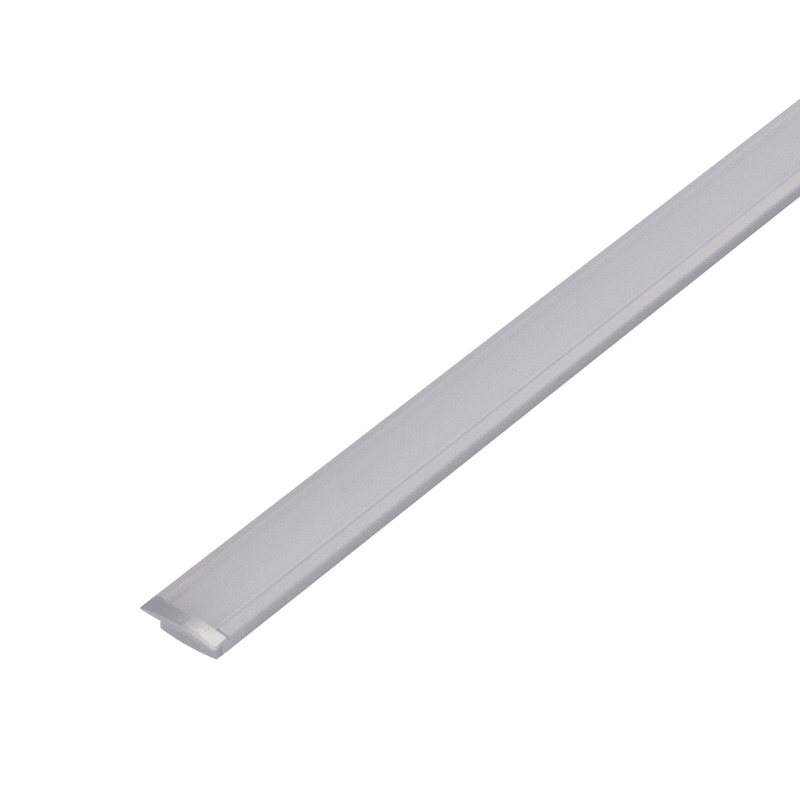

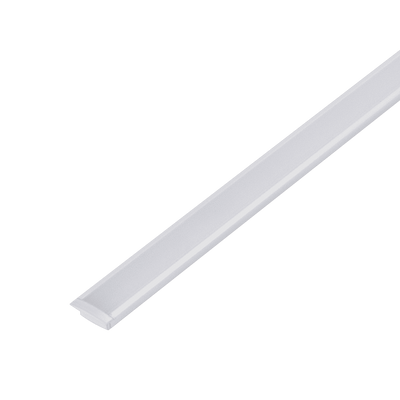

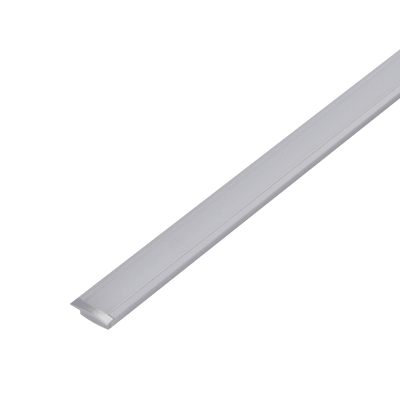

The Domus NOVA-17 REC is a recessed aluminium LED profile — 17 × 7 mm channel, supplied with an OPAL PMMA diffuser and end caps, in three finishes, cut to length.

⭐ It takes IP54 strip — and that is worth understanding
  • ⭐ Domus states the LP-1707 is designed for its IP54 strip range. ⚠ That is a different family from the Micro profile's PLEX-MICRO — ⭐ so a strip bought for one does not necessarily suit the other. ⭐ The channel here is 17 mm wide against the Micro's 8 mm, so a Micro strip would rattle around in it.
  • ⭐ IP54 on a strip means dust-protected and splash-protected. ⭐ It is not a wet-area rating — ⚠ IP54 will not survive a shower or an outdoor position — ⭐ but it does mean the strip tolerates the conditions in a kitchen, a laundry or a bathroom vanity where an unrated strip would corrode.
  • ⭐ And the profile itself adds protection. ⭐ Domus's own reason for the diffuser is that it “keeps LEDs free from foreign objects and vapours which may damage the LEDs” — ⭐ so a profile plus an IP54 strip is meaningfully more durable in a kitchen than a bare strip stuck under a shelf. ⚠ The assembly is not itself IP-rated, and Domus does not claim it is.
⭐ Opal, and where it beats the black version

⭐ Opal gives more output and an even, milky line — ⭐ which is what you want where the run is doing real work. ⭐ Under a bench, in a wardrobe, along a stair, opal is the right answer ⚠ because you are trying to see, not to make a feature. ⭐ The black-diffuser version of this same profile exists for the opposite case — ⭐ a dark ceiling where the off state matters more than the output.

⛔ Two things it does not come with, and one conflict
  • ⛔ No strip and no driver. ⭐ “C/W Opal Diff & Ec” is the diffuser and end caps.
  • ⛔ The title says 2.5 m; the order code in its own body is LP-1707-RC-O-3M. ⭐ On a cut-to-length product that decides the number of joints in a run. ⭐ Ask us.
✅ The specification
Specification Value
Installation Recess mounted
Strip channel 17 × 7 mm — ⭐ over twice the Micro's width
Profile 23 mm across the flange, 8 mm high
Diffuser ⭐ Flat OPAL PMMA
Material / finish Extruded aluminium — aluminium, black or white
⛔ Maximum length ⛔ 2.5 m or 3 m — ⚠ the listing says both
Compatible strip ⭐ Domus IP54 range — ⛔ not included
⛔ Driver ⛔ Not included
⛔ Assembly IP rating ⛔ Not claimed — ⭐ the strip is IP54; the assembly is not rated
⛔ Made to order, cut to length

No lead time is published. Call our team to confirm. ⭐ We will.

Where it works
  • Under-bench and task runs — ⭐ where output matters.
  • Kitchens, laundries and vanities — ⭐ where IP54 strip earns its place.
  • Stairs, shelving and wardrobes.
  • ⛔ Not in a shower or outdoors — ⚠ IP54 is splash, not wet-area.
  • ⛔ Not without a strip and driver.
Specifying it

Recessed LED strip profile, 17 × 7 mm channel, 23 mm across the flange. Flat opal PMMA diffuser and end caps. Extruded aluminium in aluminium, black or white. Cut to length. For the Domus IP54 strip range. Order code LP-1707-RC-O. ⭐ IT TAKES IP54 STRIP — a different family from the Micro profile's PLEX-MICRO, and the 17 mm channel is over twice as wide, so a strip bought for one does not suit the other. ⭐ IP54 means dust and splash protected: enough for a kitchen, a laundry or a vanity, ⛔ NOT enough for a shower or outdoors. ⚠ The assembly is not itself IP-rated and Domus does not claim it is. ⛔ Title says 2.5m; its order code says 3M.

Supplied and supported by Lights For You.

Questions
What strip does this take?

The Domus IP54 strip range, which Domus names specifically. That is a different family from the Micro profile's PLEX-MICRO, so a strip bought for one does not necessarily suit the other — the channel here is 17mm wide against the Micro's 8mm, so a Micro strip would rattle around in it. Tell us the run and we will quote the profile, strip and driver together.

What does IP54 mean on a strip?

Dust-protected and splash-protected. It is not a wet-area rating — IP54 will not survive a shower or an outdoor position — but it does mean the strip tolerates the conditions in a kitchen, a laundry or a bathroom vanity, where an unrated strip would corrode over time.

Does the profile add protection?

Yes, and Domus says so directly: its stated reason for the diffuser is that it keeps the LEDs free from foreign objects and vapours which may damage them. So a profile plus an IP54 strip is meaningfully more durable in a kitchen than a bare strip stuck under a shelf. Note the assembly is not itself IP-rated and Domus does not claim it is.

Opal or black diffuser?

Opal where the run is doing real work — under a bench, in a wardrobe, along a stair — because you are trying to see rather than to make a feature, and opal gives more output and an even milky line. The black-diffuser version of the same profile exists for the opposite case: a dark ceiling where the off state matters more than the output.

Is it 2.5 metres or 3?

The listing says both. The title says 2.5m and the order code in its own body is LP-1707-RC-O-3M. On a cut-to-length product that decides how many joints a run needs, which is worth settling before you commit to a layout. Ask us and we will confirm with Domus.

Does it include a strip or driver?

Neither. "C/W Opal Diff & Ec" means complete with the opal diffuser and end caps only. Both the strip and the driver are separate purchases, and the driver needs somewhere accessible to live — it is the part that fails first, so a sealed cavity is the wrong place for it.

How does it compare with the Micro profile?

It is a bigger channel for a different strip. The Micro is 8 x 9mm for PLEX-MICRO; this is 17 x 7mm for the IP54 range. Wider means more strip options and generally more output per metre; shallower at 7mm means less depth to recess. Choose by which strip you actually want, not by the profile.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKUsLP-1707-RC-O — 22107 Aluminium, 22108 Black, 22109 White
⭐ COMPATIBLE STRIPDomus IP54 range — ⚠ a DIFFERENT family from the Micro's PLEX-MICRO
⭐ And the channel is 17mm⚠ Over twice the Micro's 8mm — ⭐ a Micro strip would rattle in it
⭐ IP54 meansDust-protected and SPLASH-protected
✅ Enough forA kitchen, a laundry, a bathroom vanity — ⭐ where unrated strip corrodes
⛔ NOT enough forA shower or an outdoor position
⭐ The profile adds protection tooDomus: it "keeps LEDs free from foreign objects and vapours"
⚠ But the ASSEMBLY is not IP-rated⭐ And Domus does not claim it is
⭐ Opal vs the black versionOpal = more output, even line — ⭐ for runs doing real work
⛔ Maximum length2.5m or 3m — ⚠ the title and its own order code disagree
⛔ Strip / driverNeither included
⭐ Channel / profile17 × 7mm channel · 23mm across the flange, 8mm high

Variant specifications

ProfileChannelStrip family
⭐ Nova-17 (this)17 × 7mm⭐ Domus IP54
Micro8 × 9mmPLEX-MICRO
⚠ Interchangeable?⛔ No⭐ Choose by the strip
