Product Description
Product Description
x

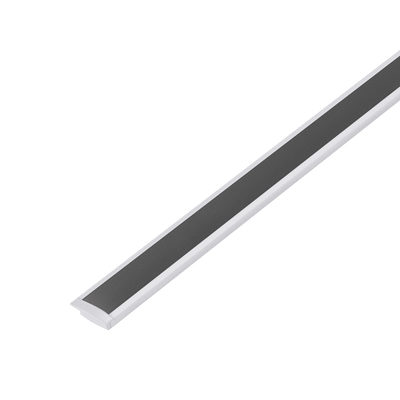

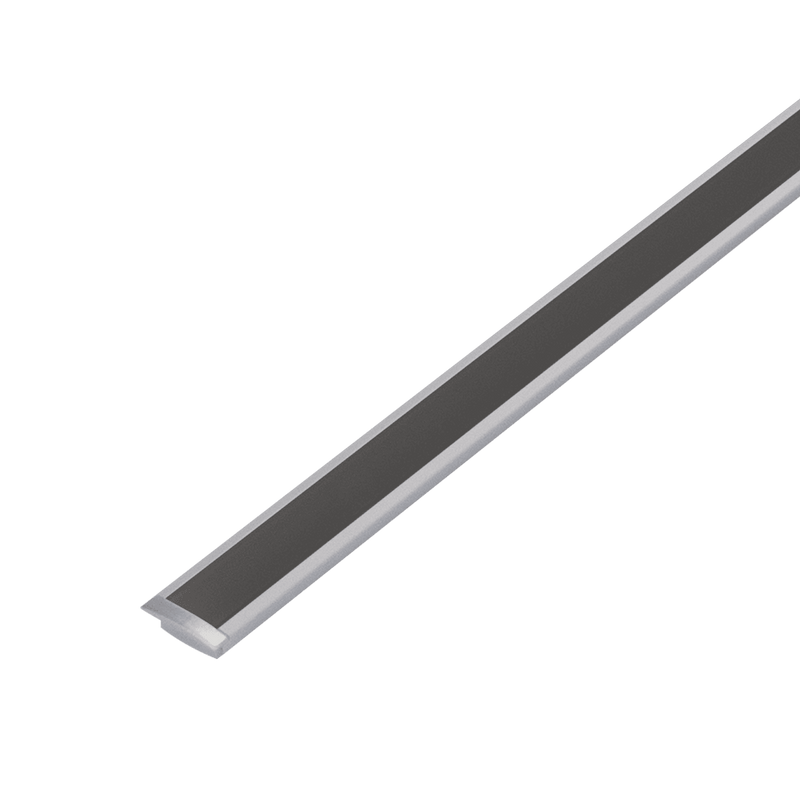

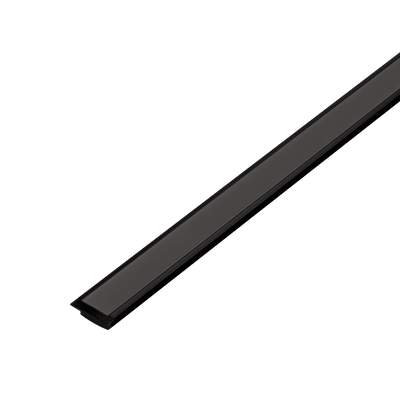

The Domus NOVA-17 REC is a recessed aluminium LED profile — 17 × 7 mm channel, supplied with a BLACK PMMA diffuser and end caps, in three finishes, cut to length.

⛔ Is it 2.5 metres or 3 metres? The listing says both.
  • ⭐ The title says 2.5 m. ⛔ The order code inside its own description is LP-1707-RC-B-3M. ⚠ The sibling opal listing does the same thing.
  • ⭐ On a cut-to-length product this is not a detail. ⭐ The maximum continuous length decides how many joints a run needs — ⭐ and on a continuous lit line a joint is the thing the eye finds.
  • ⭐ Worked example: a 5.5 m run. ⚠ At 2.5 m maximum that is three pieces and two joints. ⭐ At 3 m it is two pieces and one joint. ⭐ The difference is visible from across a room.
  • ⭐ The surface-mounted version of the same LP-1707 system is sold as 3 m with no such conflict, ⚠ which makes a genuine 2.5 m limit on the recessed version possible but unexplained. ⭐ Ask us and we will confirm before you set out the run.
⭐ Why a BLACK diffuser, and what it costs
⭐ Black diffuser (this one) Opal diffuser
Switched off ⭐ Reads as a dark line — the strip is invisible ⚠ Reads as a white line
Switched on ⚠ Lower output — the tint absorbs light ⭐ More output
In a dark ceiling ⭐ Disappears ⚠ A visible white stripe
Best for ⭐ Where the OFF state matters ⭐ Where output matters
  • ⭐ This is the choice people get wrong most often. ⭐ A strip in a dark ceiling or a black joinery reveal spends most of its life switched OFF, ⭐ and an opal diffuser is a bright white line across it all day. ⭐ The black diffuser fixes that.
  • ⚠ The cost is output, and Domus does not publish how much. ⭐ Take the black where the run is decorative or accent; ⚠ take opal where it is doing real work, such as under a bench where you actually need to see.
⛔ It does not light up on its own

⭐ “C/W Black Diff & Ec” = complete with the black diffuser and end caps — ⛔ not with a strip and not with a driver. ⭐ The LP-1707 is designed for the Domus IP54 strip range — ⚠ a different strip family from the Micro profile's PLEX-MICRO, so do not assume one carries over. ⭐ Tell us the run and we will quote profile, strip and driver together.

✅ The specification
Specification Value
Installation Recess mounted
Strip channel 17 × 7 mm
⭐ Profile width ⭐ 23 mm across the flange, 8 mm high
Diffuser ⭐ Flat BLACK PMMA
Material / finish Extruded aluminium — aluminium, black or white
⛔ Maximum length ⛔ 2.5 m or 3 m — the listing says both
Compatible strip ⭐ Domus IP54 strip range — ⛔ not included
⛔ Driver ⛔ Not included
Supplied with End caps
⛔ Made to order, cut to length

No lead time is published. Call our team to confirm. ⭐ We will.

Where it works
  • ⭐ Dark ceilings and black joinery — ⭐ where the off state matters.
  • Accent and decorative runs — ⚠ not primary task light.
  • Recessed joinery and plasterboard.
  • ⛔ Not set out for a long run until the 2.5/3 m question is settled.
  • ⛔ Not without a strip and driver.
Specifying it

Recessed LED strip profile, 17 × 7 mm channel, 23 mm across the flange, 8 mm high. Flat black PMMA diffuser and end caps. Extruded aluminium in aluminium, black or white. Cut to length. For the Domus IP54 strip range. Order code LP-1707-RC-B. ⛔ THE TITLE SAYS 2.5m AND ITS OWN ORDER CODE SAYS 3M — and on a cut-to-length product that decides how many joints a run needs. A 5.5m run is three pieces and two joints at 2.5m, or two pieces and one joint at 3m, and the difference is visible from across a room. ⭐ THE BLACK DIFFUSER IS FOR THE OFF STATE — it reads as a dark line rather than a white stripe, at the cost of output Domus does not quantify.

Supplied and supported by Lights For You.

Questions
Is it 2.5 metres or 3 metres?

The listing says both, which is why we are flagging it. The title says 2.5m and the order code inside its own description is LP-1707-RC-B-3M. The sibling opal listing does the same. Ask us and we will confirm with Domus before you set out the run.

Why does the maximum length matter?

Because it decides how many joints a run needs, and on a continuous lit line a joint is the thing the eye finds. A 5.5m run is three pieces and two joints at a 2.5m maximum, or two pieces and one joint at 3m. That difference is visible from across a room, so it is worth settling before you commit to a layout.

Why choose a black diffuser?

For the off state. A strip in a dark ceiling or a black joinery reveal spends most of its life switched off, and an opal diffuser is a bright white line across it all day. A black diffuser reads as a dark line instead, so the profile disappears until it is lit. It is the choice people get wrong most often.

What does the black diffuser cost me?

Output — the tint absorbs light, and Domus does not publish how much. So take black where the run is decorative or accent, and opal where it is doing real work, such as under a bench where you actually need to see. If the run has to do both, opal is the safer choice.

Does it come with an LED strip?

No. "C/W Black Diff & Ec" means complete with the black diffuser and end caps, not with a strip or a driver. The LP-1707 is designed for the Domus IP54 strip range — which is a different strip family from the Micro profile's PLEX-MICRO, so do not assume one carries over. Tell us the run and we will quote profile, strip and driver together.

What groove do I rout?

The strip channel is 17 x 7mm and the profile sits 23mm across the flange at 8mm high. So you rout for the body and the flange covers 23mm — which is useful, because the flange is what hides a cut that is not perfectly clean. Confirm the exact routing dimension with us before the joinery is cut.

Which finish should I choose?

Aluminium, black or white, and the useful rule is to match the substrate rather than the room. A black profile with a black diffuser in a dark ceiling disappears completely, which is usually the point of choosing black in the first place. A white profile on white plasterboard does the same in a light ceiling.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKUsLP-1707-RC-B — 21972 Aluminium, 21973 Black, 21974 White
⛔ 2.5m OR 3m? THE LISTING SAYS BOTHTitle "2.5m" · ⛔ its own order code "LP-1707-RC-B-3M"
⭐ Why it matters on a cut-to-length productIt decides how many JOINTS a run needs
⭐ Worked example — a 5.5m run⚠ At 2.5m: three pieces, two joints · ⭐ at 3m: two pieces, ONE joint
⭐ And a jointIs the thing the eye finds on a continuous lit line
⚠ The surface versionIs sold as 3m with NO such conflict — ⭐ so a real 2.5m limit is possible but unexplained
⭐ THE BLACK DIFFUSER IS FOR THE OFF STATE⭐ A dark line, not a white stripe
⚠ What it costsOUTPUT — ⛔ Domus does not publish how much
⭐ So take black forDecorative and accent runs — ⚠ take OPAL where you need to see
⛔ Strip / driverNeither included — ⭐ for the Domus IP54 strip range
⚠ A different strip familyFrom the Micro profile's PLEX-MICRO — ⭐ do not assume one carries over
⭐ Channel / profile17 × 7mm channel · ⭐ 23mm across the flange, 8mm high

Variant specifications

⭐ Black diffuserOpal diffuser
⭐ Switched OFF⭐ A dark line⚠ A white stripe
Switched on⚠ Lower output⭐ More output
Best for⭐ Accent, dark ceilings⭐ Task, under-bench
