Domus Lighting LED Profiles Domus Micro SM 8X9MM 3M C/W Opal Diff & Ec
Domus Micro SM 8X9MM 3M C/W Opal Diff & Ec
Domus Micro SM 8X9MM 3M C/W Opal Diff & Ec
Domus Lighting LED Profiles Domus Micro SM 8X9MM 3M C/W Opal Diff & Ec
Domus Micro SM 8X9MM 3M C/W Opal Diff & Ec
Domus Micro SM 8X9MM 3M C/W Opal Diff & Ec
Loading... + Add to wishlist - Remove from wishlist
Domus Lighting
SKU: 21944

Domus Micro SM 8X9MM 3M C/W Opal Diff & Ec

Colour: Aluminium
$36.95
$36.95
Product Description
Product Description
x

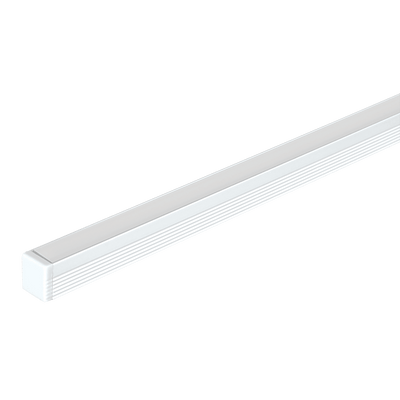

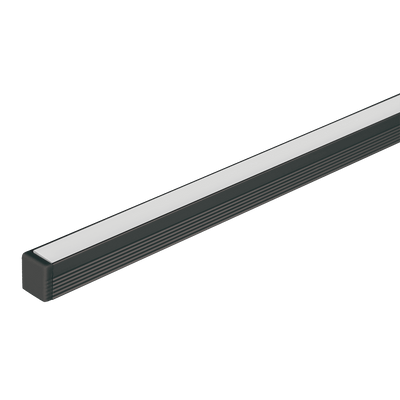

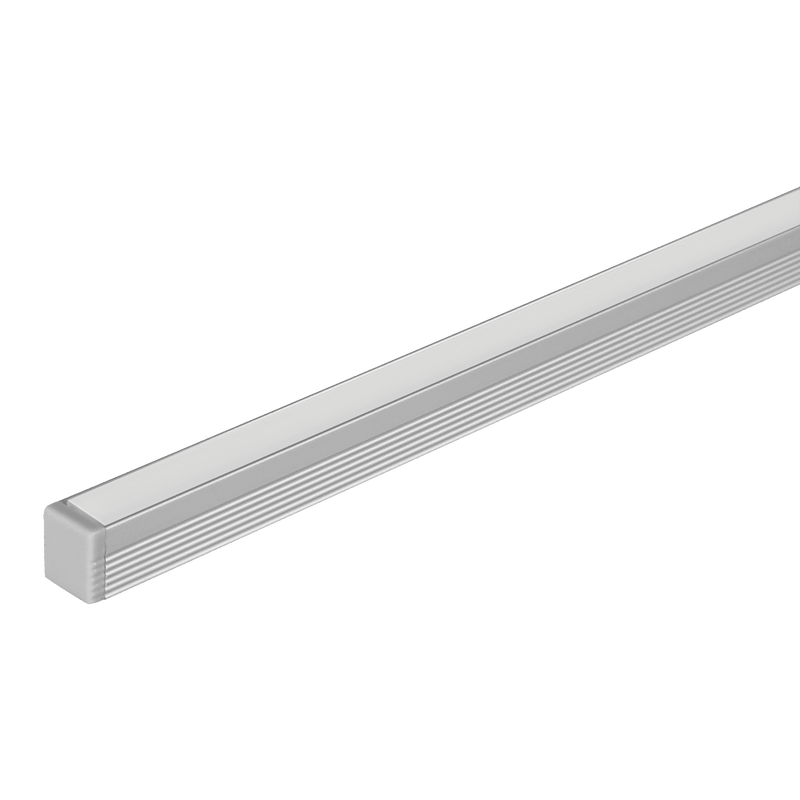

The Domus LP-0809-SM is a surface-mounted aluminium profile for LED strip — supplied with a flat opal PMMA diffuser and end caps, in three finishes, up to 3 m.

⛔⛔ It does not light up on its own

⭐ Complete with the diffuser and end caps — ⛔ not with a strip and not with a driver. ⭐ PLEX-MICRO-8W at 8 W per metre, plus a remote driver: 24 W over a full 3 m, so a 30 W driver.

⭐ Surface or recessed — the substrate decides
⭐ Surface (LP-0809-SM) Recessed (LP-0809-RC)
Preparation ⭐ None — clips to the face ⚠ A groove routed to 10.9 mm
Retrofit ⭐ Yes — into finished joinery ⛔ Practically no
Finished look Sits ~9 mm proud ⭐ Flush
If the run moves ⭐ Unclip and re-fix ⛔ The groove stays
Risk ⭐ Low ⚠ A mis-cut groove is permanent
  • ⭐ Under a bench or inside a wardrobe, nobody sees 9 mm of profile — ⭐ they see the light. ⭐ So surface is usually the sensible answer in exactly the places Domus recommends this family for, ⚠ and recessed earns its extra risk mainly on a visible face.
  • ⚠ One point that catches people: surface mounting still needs a flat, clean run. ⭐ The clips hold the profile straight, but they cannot straighten a bowed shelf — ⭐ and at 8 mm wide any wave in the substrate shows in the line of light.
✅ The specification
Specification Value
Installation ⭐ Surface mounted — no groove needed
Material / finish Extruded aluminium — aluminium, black or white
Diffuser Flat PMMA, opal
Strip channel 8 × 9 mm
Maximum continuous length 3000 mm
Supplied with End caps and mounting clips
⛔ Strip / driver ⛔ Neither included — PLEX-MICRO-8W, remote driver
⛔ Published spec block ⛔ None on this listing — ⭐ 963 chars
⛔ Made to order, cut to length

No lead time is published. Call our team to confirm. ⭐ We will.

Where it works
  • Under-bench and under-shelf — ⭐ the classic surface application.
  • Pelmets, wardrobes and laundries.
  • ⭐ Retrofit into finished joinery — ⭐ where recessed is no longer possible.
  • ⛔ Not on a bowed or uneven run — ⚠ the wave will show.
  • ⛔ Not without a strip and driver.
Specifying it

Surface-mounted LED strip profile. Extruded aluminium, aluminium / black / white. Flat opal PMMA diffuser, end caps and mounting clips. 8×9 mm strip channel, 3000 mm maximum continuous length. ⛔ NO STRIP AND NO DRIVER — PLEX-MICRO-8W at 8 W/m, remote driver required, 24 W over 3 m. ⭐ SURFACE VERSUS RECESSED IS DECIDED BY THE SUBSTRATE: surface needs no preparation, retrofits into finished joinery and can be unclipped if the run moves; recessed finishes flush but needs a 10.9 mm groove that is permanent if it is wrong. ⭐ Under a bench nobody sees 9 mm of profile — they see the light.

Supplied and supported by Lights For You.

Questions
Surface or recessed — how do I choose?

By the substrate, not by taste. Surface needs no preparation, clips straight to the face, retrofits into finished joinery and can be unclipped and re-fixed if the run moves. Recessed finishes flush but needs a groove routed to 10.9mm, which is permanent if it is in the wrong place. Under a bench or inside a wardrobe nobody sees 9mm of profile — they see the light — so surface is usually the sensible answer in exactly the places this family suits.

When is recessed worth the extra risk?

On a visible face, where a profile standing 9mm proud would read as an addition rather than part of the joinery. That is a real difference on a feature shelf or a stair nosing. It is much less of one under a benchtop, which is where most of these runs go.

Is there anything surface mounting still needs?

A flat, clean run. The clips hold the profile straight but they cannot straighten a bowed shelf, and at 8mm wide any wave in the substrate shows up in the line of light. It is the single thing people underestimate about surface profile — the profile is only as straight as what it is fixed to.

Does it include an LED strip?

No. It is complete with the opal diffuser and end caps, not with a strip or a driver. You need a PLEX-MICRO-8W strip at 8 watts per metre and a remote driver — 24W over a full 3m run, so a 30W driver with headroom.

Why does this listing carry so little detail?

Because its specification block is missing. Of the four Micro profile listings, only the 3m recessed one publishes a spec block; this one runs 963 characters against its 1660. The profile is the same family, so the material, diffuser and channel figures hold — but the published record on this page is thin, and that is a listing problem rather than a product one.

How long a run can I have?

3000mm in one continuous piece. Longer runs use multiple lengths with a joint, and it is worth deciding where that joint falls rather than leaving it to the installer, since it is the one visible interruption in the line.

What finishes are there?

Aluminium, black and white. Choose to match the substrate rather than the room — a white profile on a white carcass disappears, an aluminium one on white does not, and under a bench the profile is seen from below at close range where a mismatch is obvious.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKUsLP-0809-SM-3M — 21944 Aluminium, 21945 Black, 21946 White
⭐ InstallationSURFACE mounted — ⭐ no groove, no routing, retrofits into finished joinery
⭐ Versus recessedRecessed finishes flush — ⚠ but needs a 10.9mm groove that is permanent if wrong
⭐ If the run movesSurface: unclip and re-fix — ⛔ recessed: the groove stays
⚠ What surface still needsA FLAT run — ⭐ clips hold the profile straight, not the shelf
⛔ Strip / driverNeither included — ⭐ PLEX-MICRO-8W at 8 W/m, remote driver, 24W over 3m
Material / finishExtruded aluminium — aluminium, black or white
Diffuser / channelFlat opal PMMA · 8 × 9mm strip channel
Max continuous length3000mm
Supplied withEnd caps and mounting clips
⛔ Published spec blockNONE on this listing — ⭐ 963 chars vs the 3m recessed listing's 1660

Variant specifications

⭐ SurfaceRecessed
Preparation⭐ None⚠ 10.9mm groove
Retrofit⭐ Yes⛔ No
Finish9mm proud⭐ Flush
⚠ If wrong⭐ Unclip⛔ Permanent
