Domus Lighting
SKU: 21956

Domus Micro REC 8X9MM P/M C/W Opal Diff & Ec

Colour: Aluminium
$13.95
$13.95
Product Description
Product Description
x

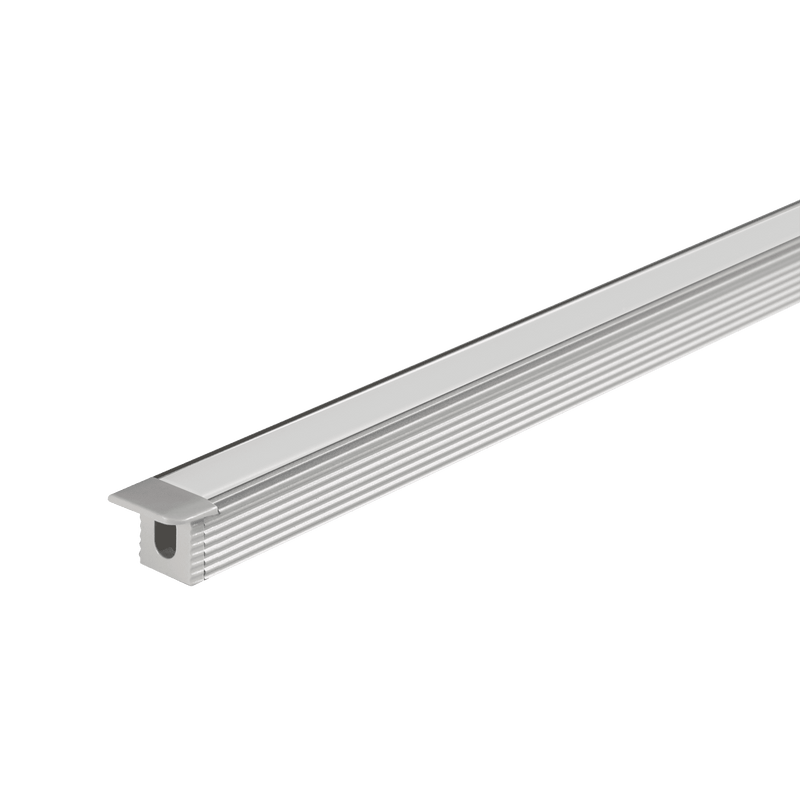

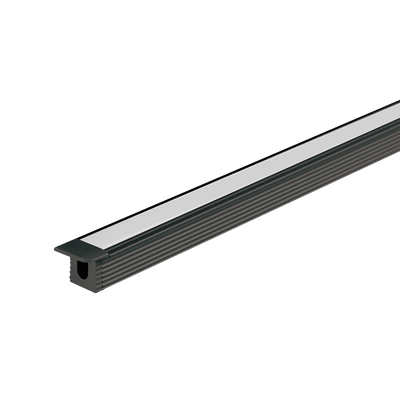

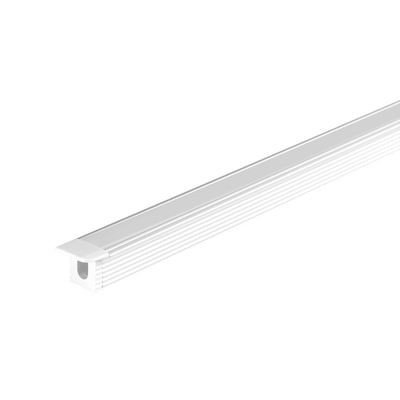

The Domus LP-0809-RC is a recessed aluminium mounting profile for LED strip, sold per metre — supplied with a flat opal PMMA diffuser and end caps, in three finishes.

⛔⛔ It does not light up on its own

⭐ “C/W Opal Diff & Ec” means complete with the diffuser and end caps — ⛔ NOT with an LED strip, and not with a driver. ⭐ Both are separate purchases: a PLEX-MICRO-8W strip, and a remote driver — ⭐ 8 W per metre, so size the driver on the run length and add headroom.

⛔ This listing publishes almost nothing — and its sibling publishes everything
  • ⚠ Four Micro profile listings exist (recessed and surface, per-metre and 3 m). ⛔ ONE of the four carries a specification block. Three do not.
  • ⭐ This one runs 965 characters; the 3 m recessed listing runs 1660, ⭐ and the extra 700 is the entire technical record — material grade, actual profile size, diffuser type, compatible strip, driver requirement.
  • ⭐ It is the SAME profile. ⭐ LP-0809-RC per metre and LP-0809-RC-3M are one extrusion sold two ways, ⭐ so every figure on the 3 m listing applies here — ⭐ which is why this page carries them.
  • ⭐ This is a listing gap, not a product gap. ⚠ The distinction matters: nothing needs to be asked of Domus, it needs to be copied across.
⭐ Per metre or the 3 m stick — what actually differs

⚠ Less than the two listings suggest. ⭐ The 3 m listing's own text says “Profile sold per metre. Can be cut to any length up to 3 m” — ⭐ so both are sold by the metre and both are cut to order. ⚠ The practical difference is how you are quoting: a run under 3 m in one continuous piece, or a metreage across several runs. ⭐ Tell us the run lengths and we will work out which listing prices it properly.

✅ The specification, carried across from the 3 m listing
Specification Value
Installation Recess mounted
Material / finish Extruded aluminium 6063 — anodised, black or white
Diffuser Flat PMMA, opal
⭐ Profile size ⭐ W 10.9 mm × H 9.1 mm — ⚠ rout to 10.9, not 8
Maximum continuous length 3000 mm
Supplied with End caps and mounting clips
⛔ Strip / driver ⛔ Neither included — PLEX-MICRO-8W, remote driver
⛔ Warranty ⛔ Not published on any of the four Micro listings
⛔ Made to order, cut to length

No lead time is published. Call our team to confirm. ⭐ We will.

Where it works
  • ⭐ Multiple short runs — ⭐ where metreage suits better than a stick.
  • Under-bench, wardrobe, pelmet and laundry detail.
  • ⭐ Recessed joinery that can take a 10.9 mm groove.
  • ⛔ Not without a strip and driver.
  • ⛔ Not for a single run over 3 m without a planned joint.
Specifying it

Recessed LED strip profile, sold per metre. Extruded aluminium 6063, anodised / black / white. Flat opal PMMA diffuser, end caps and mounting clips. Profile W 10.9 × H 9.1 mm, 8×9 mm strip channel, 3000 mm maximum continuous length. ⛔ NO STRIP AND NO DRIVER — PLEX-MICRO-8W at 8 W/m, remote driver required. ⛔ THIS LISTING PUBLISHES NO SPECIFICATION BLOCK: one of the four Micro listings carries one and three do not, so the figures above are carried across from the identical 3 m listing. ⭐ A listing gap, not a product gap — nothing needs asking, it needs copying.

Supplied and supported by Lights For You.

Questions
Why does this listing say so little?

Because the specification block is missing from it. Four Micro profile listings exist — recessed and surface, per-metre and 3m — and only one of the four carries a spec block. This one runs 965 characters against the 3m recessed listing's 1660, and the extra 700 is the entire technical record: material grade, actual profile size, diffuser type, compatible strip and driver requirement.

So where do the figures on this page come from?

From the 3m listing, because it is the same profile. LP-0809-RC per metre and LP-0809-RC-3M are one extrusion sold two ways, so every figure there applies here. That distinction matters: it is a listing gap rather than a product gap, so nothing needs to be asked of Domus — it needs to be copied across.

What is the difference between the per-metre and 3m listings?

Less than the two listings suggest. The 3m listing's own text says "Profile sold per metre. Can be cut to any length up to 3m" — so both are sold by the metre and both are cut to order. The practical difference is how you are quoting: one continuous piece under 3m, or a metreage across several runs. Tell us the run lengths and we will work out which prices it properly.

Does it come with an LED strip?

No, and neither does any of the four. "C/W Opal Diff & Ec" means complete with the opal diffuser and end caps. You also need a PLEX-MICRO-8W strip and a remote driver, both separate. The strip draws 8 watts per metre, so size the driver on your run length and add headroom.

What groove size do I need?

10.9mm, plus tolerance — the profile measures W10.9mm x H9.1mm. The 8x9mm in the title is the strip channel inside it. Routing to 8mm produces a groove the profile will not enter, which on recessed joinery cannot be corrected afterwards.

Is there a warranty?

None is published on any of the four Micro profile listings. That is a genuine gap rather than a copied-across one — the 3m listing does not carry a warranty either, so there is nothing to bring over. Ask us and we will get it from Domus.

Can I run more than 3 metres?

Not in one continuous piece — 3000mm is the maximum continuous length. Longer runs are made from multiple lengths with a joint, and where that joint falls is worth deciding deliberately rather than leaving to the installer, since it is the one place the line of light is interrupted.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKUsLP-0809-RC per metre — 21956 Aluminium, 21957 Black, 21958 White
⛔ THIS LISTING PUBLISHES NO SPEC BLOCK⭐ 965 chars vs the 3m sibling's 1660
⭐ 1 of the 4 Micro listings carries one⛔ three do not
⭐ Figures below carried across fromLP-0809-RC-3M — ⭐ the SAME extrusion, sold two ways
⭐ A LISTING gap, not a product gap⚠ Nothing needs asking of Domus — it needs copying
⛔ Strip / driverNeither included — ⭐ PLEX-MICRO-8W at 8 W/m, remote driver required
⭐ Profile sizeW10.9 × H9.1mm — ⚠ rout to 10.9, NOT the 8 of the title
Material / finishExtruded aluminium 6063 — anodised, black or white
DiffuserFlat PMMA, opal
Max continuous length3000mm — ⚠ longer runs need a planned joint
⛔ WarrantyNot published on ANY of the four — ⭐ a real gap, nothing to carry across

Variant specifications

Micro listingCharsSpec block?
⭐ LP-0809-RC-3M1660✅ Yes — the full record
⛔ LP-0809-RC per metre (this)965⛔ No
⛔ LP-0809-SM-3M963⛔ No
⛔ LP-0809-SM per metre964⛔ No
