Domus Lighting LED Profiles Domus Micro REC 8X9MM 3M C/W Opal Diff & Ec
Domus Micro REC 8X9MM 3M C/W Opal Diff & Ec
Domus Micro REC 8X9MM 3M C/W Opal Diff & Ec
Domus Lighting LED Profiles Domus Micro REC 8X9MM 3M C/W Opal Diff & Ec
Domus Micro REC 8X9MM 3M C/W Opal Diff & Ec
Domus Micro REC 8X9MM 3M C/W Opal Diff & Ec
Loading... + Add to wishlist - Remove from wishlist
Domus Lighting
SKU: 21960

Domus Micro REC 8X9MM 3M C/W Opal Diff & Ec

Colour: Aluminium
$36.95
$36.95
Product Description
Product Description
x

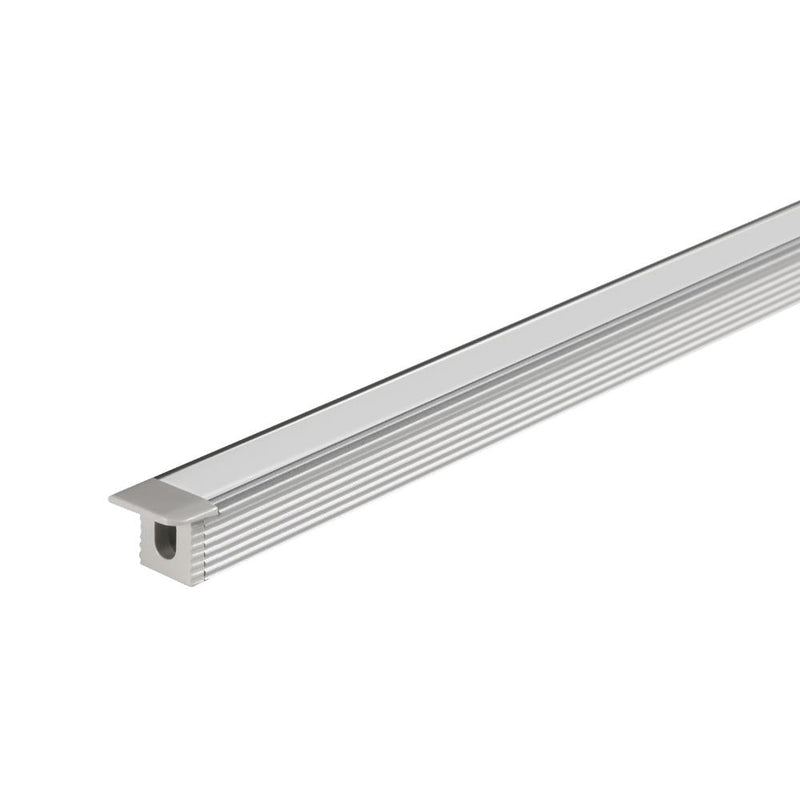

The Domus LP-0809-RC is a recessed aluminium mounting profile for LED strip — supplied with a flat opal PMMA diffuser, end caps and mounting clips, in three finishes, cut to any length up to 3 m.

⛔⛔ Read this first — it does not light up on its own
  • ⭐ This is an extrusion, not a light fitting. ⭐ “C/W Opal Diff & Ec” means complete with the diffuser and end caps — ⛔ NOT with an LED strip.
  • ⛔ You need two more things to get light, and Domus names both: “Compatible Strip: PLEX-MICRO-8W” and “Driver Installation: Remote Driver Required”.
  • ⚠ The driver is REMOTE — ⭐ there is no room for one in an 8 mm channel, ⭐ so you must plan somewhere accessible to put it and a route for the low-voltage run. ⚠ In a stone benchtop or a sealed wardrobe that has to be decided before anything is built.
  • ⭐ Sizing the driver: PLEX-MICRO-8W draws 8 W per metre, ⭐ so a full 3 m run is 24 W — ⭐ take a 30 W driver for headroom. ⭐ A 1.5 m run is 12 W.
⛔ The title says 8×9 mm. The profile is 10.9 × 9.1 mm.

⭐ 8×9 mm is the STRIP CHANNEL — the space inside. ⭐ The profile itself measures W 10.9 mm × H 9.1 mm, and that is the figure you rout to. ⚠ A groove cut at 8 mm will not take it, ⭐ and on a recessed profile that is a joinery error you cannot correct after the fact. ⭐ Set out at 10.9 mm, plus your tolerance.

✅ What Domus publishes for this profile
Specification Value
Installation ⭐ Recess mounted
Material Extruded aluminium 6063
Finish Natural clear anodised, black or white
Diffuser Flat PMMA, opal
⭐ Profile size ⭐ W 10.9 mm × H 9.1 mm — ⚠ not the 8×9 of the title
Length 3000 mm continuous — ⭐ cut to any length up to 3 m
Supplied with ⭐ End caps and mounting clips
⛔ Strip ⛔ NOT included — ⭐ compatible: PLEX-MICRO-8W
⛔ Driver ⛔ NOT included — remote driver REQUIRED
Custom colour ⭐ Powder coat on request — ⚠ surcharges apply
⛔ Made to order, cut to length

No lead time is published. Call our team to confirm before ordering. ⭐ We will. ⚠ Cut lengths are not returnable in the ordinary way, ⭐ so confirm the measurement before it is cut, not after.

Where it works
  • Under-bench and under-cabinet — ⭐ the shallow 9.1 mm height suits a thin reveal.
  • Wardrobes, shelving and laundries — ⭐ where the channel keeps dust and vapour off the LEDs.
  • ⭐ Anywhere the strip must read as a clean line rather than a row of dots.
  • ⛔ Not without a strip and a remote driver.
  • ⛔ Not in a groove cut to 8 mm.
Specifying it

Recessed LED strip profile, extruded aluminium 6063, natural clear anodised / black / white. Flat opal PMMA diffuser. Profile W 10.9 mm × H 9.1 mm, 8×9 mm strip channel. 3000 mm continuous, cut to any length up to 3 m, supplied per metre with end caps and mounting clips. Custom powder coat on request. ⛔ SUPPLIED WITHOUT AN LED STRIP AND WITHOUT A DRIVER. Compatible strip PLEX-MICRO-8W (8 W/m); remote driver required — 24 W over a full 3 m run, so allow a 30 W driver and an accessible place to put it. ⚠ ROUT TO 10.9 mm, NOT 8 mm.

Supplied and supported by Lights For You.

Questions
Does this product light up on its own?

No — and it is the first thing to understand. This is an aluminium extrusion, not a light fitting. "C/W Opal Diff & Ec" means complete with the opal diffuser and end caps, not complete with an LED strip. Domus names what you also need: a compatible PLEX-MICRO-8W strip, and a remote driver.

What driver do I need?

PLEX-MICRO-8W draws 8 watts per metre, so a full 3m run is 24W and a 30W driver gives sensible headroom. A 1.5m run is 12W. The driver is remote — there is no room for one inside an 8mm channel — so you need somewhere accessible to mount it and a route for the low-voltage run. In a stone benchtop or a sealed wardrobe that has to be decided before anything is built.

What size groove do I rout?

10.9mm wide, plus your tolerance. The 8x9mm in the title is the strip channel — the space inside the profile — while the profile itself measures W10.9mm x H9.1mm. That is the figure you set out to. A groove cut at 8mm will not take it, and on a recessed profile that is a joinery error you cannot correct afterwards.

Can I cut it to length?

Yes — it is supplied per metre and can be cut to any length up to 3m, and it comes with end caps and mounting clips. It is made to order and cut to length, so confirm the measurement before it is cut rather than after; cut lengths are not returnable in the ordinary way. No lead time is published, so call us to confirm before ordering.

What finishes are available?

Natural clear anodised, black or white as standard. Custom powder coat colours are available on request, with surcharges. The diffuser is flat opal PMMA in all cases.

Why use a profile at all?

Three reasons Domus names. It conceals the strip so you see a line of light rather than the tape. It keeps the strip linear, so it does not wander or sag along a run. And it keeps the LEDs free of dust and vapour, which is what shortens strip life in a laundry or under a bench.

Recessed or surface mounted?

This is the recessed version, LP-0809-RC — it sits in a routed groove and finishes flush, which is the cleaner result where the joinery can take it. The surface-mounted LP-0809-SM sits on the face and needs no groove, which is the answer for retrofit or where you cannot cut into the substrate.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKUsLP-0809-RC-3M — 21960 Aluminium, 21961 Black, 21962 White
⛔ STRIP NOT INCLUDED⭐ Compatible: PLEX-MICRO-8W — ⛔ you can buy this and get no light
⛔ DRIVER NOT INCLUDED⭐ "Remote Driver Required" — ⚠ no room for one in an 8mm channel
⭐ Driver sizing8 W/m × 3m = 24W — ⭐ take a 30W driver for headroom
⛔ ROUT TO 10.9mm, NOT 8mm⭐ Profile is W10.9 × H9.1mm; ⚠ 8×9 is the STRIP CHANNEL
InstallationRecess mounted
Material / finishExtruded aluminium 6063 — natural clear anodised, black or white
DiffuserFlat PMMA, opal
Length3000mm continuous — ⭐ cut to any length up to 3m, sold per metre
⭐ Supplied withEnd caps and mounting clips
⚠ Custom colourPowder coat on request — surcharges apply
⛔ Made to orderCut to length — ⚠ confirm the measurement BEFORE it is cut

Variant specifications

To get light you needIncluded?
The profile, diffuser, end caps, clips✅ Yes
⛔ PLEX-MICRO-8W strip⛔ No — separate
⛔ Remote driver (30W for 3m)⛔ No — separate
