Domus Lighting LED Linear Pendants Domus Maxi Curve 2.4m Long Pendant Aluminium Dimmable 4k
Domus Maxi Curve 2.4m Long Pendant Aluminium Dimmable 4k
Domus Maxi Curve 2.4m Long Pendant Aluminium Dimmable 4k
Domus Maxi Curve 2.4m Long Pendant Aluminium Dimmable 4k
Domus Maxi Curve 2.4m Long Pendant Aluminium Dimmable 4k
Domus Maxi Curve 2.4m Long Pendant Aluminium Dimmable 4k
Domus Lighting LED Linear Pendants Domus Maxi Curve 2.4m Long Pendant Aluminium Dimmable 4k
Domus Maxi Curve 2.4m Long Pendant Aluminium Dimmable 4k
Domus Maxi Curve 2.4m Long Pendant Aluminium Dimmable 4k
Domus Maxi Curve 2.4m Long Pendant Aluminium Dimmable 4k
Domus Maxi Curve 2.4m Long Pendant Aluminium Dimmable 4k
Domus Maxi Curve 2.4m Long Pendant Aluminium Dimmable 4k
Loading... + Add to wishlist - Remove from wishlist
Domus Lighting
SKU: 30475

Domus Maxi Curve 2.4m Long Pendant Aluminium Dimmable 4k

Beam angle for focused or wide lighting
120° Beam angle for focused or wide lighting
Dimmable
Dimmable
$789.00
$789.00
Product Description
Product Description
x

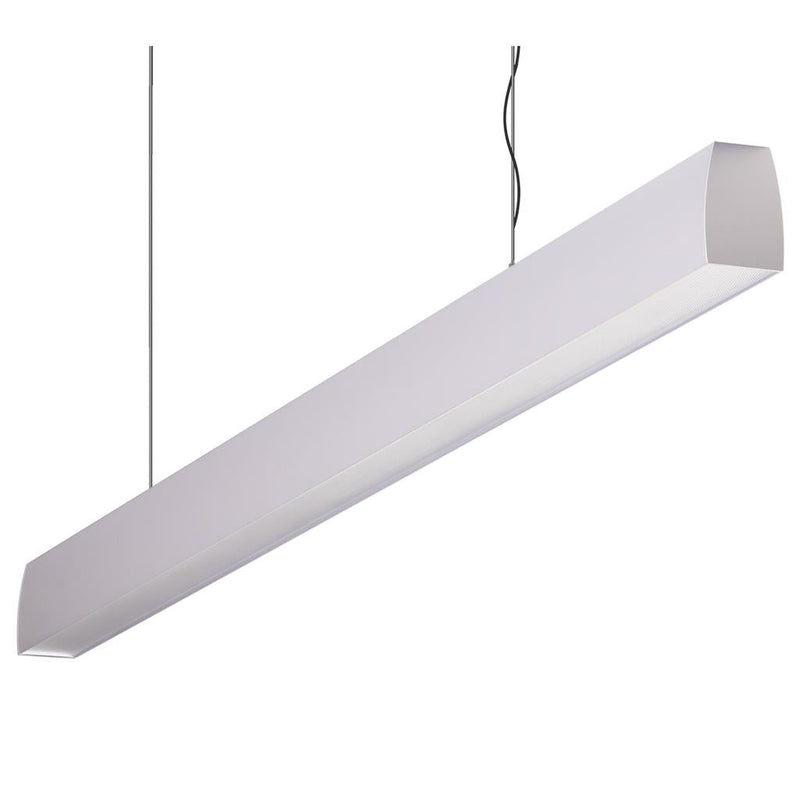

The Domus Maxi Curve is a 2.4 m suspended LED linear pendant — 48 W, 4800 lm, 4000 K at CRI90, dimmable, in an aluminium body, in six finishes.

⛔ Made to order, and no lead time is published

Domus asks you to call and confirm it. ⭐ We will.

⭐ Two suspension points on an arc — a different setting-out problem
  • ⭐ A 2.4 m fitting takes two suspension points. ⭐ On a straight pendant those sit on a line, and an installer can measure from a wall.
  • ⚠ If this fitting curves in plan, they do not sit on a line — ⭐ they sit on the arc, which means they are offset from each other in BOTH directions.
  • ⭐ So the setting-out needs two coordinates per point rather than one dimension, ⭐ and it has to be right in plan before the ceiling closes — ⚠ a point in the wrong place does not just shift the fitting, it rotates it.
  • ⛔ And the spacing is not published on any listing in either range — ⭐ so an installer has nothing to set out from at all.
  • ⭐ What to ask for: the point spacing, and whether it is given as a straight dimension or as coordinates on the arc. ⭐ That second half is the question people forget, and it is the one that decides whether a drawing can be produced.
⚠ And a consequence for hanging level

⭐ A curved fitting on two drops hangs level only if both points are at the same height — ⭐ which is true of a straight one too. ⚠ But a curve makes an error more visible: ⭐ a straight fitting slightly off level reads as a tilt, and a curved one reads as a twist, ⭐ which the eye picks up faster because it breaks the symmetry of the arc. ⭐ Worth telling the installer.

✅ What the geometry does not affect

⭐ 4800 lm, 48 W, CRI90, IP20, the 120° beam and the 3 m drop all hold however the fitting is shaped. ⭐ So the electrical design, the lighting calculation and the ceiling reach are all settled — ⚠ it is only the plan setting-out that waits.

✅ The published specification
Specification Value
Light output ⭐ 4800 lm — 2000 lm/m, 100 lm/W
Colour rendering ⭐ CRI90 at 4000 K
Power / stated length 48 W at 240 V · 2400 mm arc
Beam 120°, down only
IP rating IP20 — ⚠ dry interior only
Suspension drop 3 m supplied
⛔ Suspension POINT SPACING ⛔ Not published — ⚠ and on an arc it needs coordinates, not a dimension
Warranty ⭐ 3 years, replacement
⛔ Radius · weight · lifespan ⛔ Not published
Where it works
  • 3.6 m tables and four-person benches at 4000 K.
  • Timber, concrete and exposed soffits.
  • ⭐ Where the electrical design can proceed ahead of the geometry.
  • ⛔ Not set out in plan until we have the point coordinates.
  • ⛔ Not anywhere damp — ⚠ IP20.
Specifying it

2.4 m suspended LED linear pendant. 4800 lm, 48 W (100 lm/W), 4000 K, CRI90. 120° down-only. IP20. 2400 mm arc. 3 m drop. PLEX-COB-20W strip, integral dimmable driver, DALI and emergency on request. Anodised aluminium body. Six finishes. 3-year replacement warranty. Order code MAXI-CURVE-2.4M-A-4K. ⭐ TWO SUSPENSION POINTS ON AN ARC IS A DIFFERENT SETTING-OUT PROBLEM — they are offset in BOTH directions, so the drawing needs two coordinates per point rather than one dimension, and a point in the wrong place rotates the fitting rather than shifting it. ⛔ The spacing is not published, so ask for it AND for whether it is given as a dimension or as coordinates. ✅ Everything electrical is settled.

Supplied and supported by Lights For You.

Questions
What is different about suspending a curved fitting?

The setting-out. A 2.4m fitting takes two suspension points, and on a straight pendant those sit on a line so an installer can measure from a wall. If this fitting curves in plan they do not sit on a line — they sit on the arc, which means they are offset from each other in both directions. So the drawing needs two coordinates per point rather than one dimension.

Why does that matter more than on a straight fitting?

Because a point in the wrong place does not just shift the fitting, it rotates it. On a straight pendant a mis-set point moves the fitting along its axis and the result still looks like a straight pendant. On an arc it changes the orientation of the whole sweep, which is immediately visible. And it has to be right before the ceiling closes.

What should I ask for?

The suspension-point spacing, and — the half people forget — whether it is given as a straight dimension or as coordinates on the arc. That second part decides whether a drawing can be produced at all. The spacing is not published on any listing in either range, so an installer currently has nothing to set out from.

Does the curve affect hanging level?

Not the requirement, but the visibility of an error. A curved fitting on two drops hangs level only if both points are at the same height, which is true of a straight one too — but a straight fitting slightly off level reads as a tilt, and a curved one reads as a twist, which the eye picks up faster because it breaks the symmetry of the arc. Worth telling the installer.

Does the geometry affect anything else?

No. 4800 lumens, 48W, CRI90, IP20, the 120 degree beam and the 3m drop all hold however the fitting is shaped. So the electrical design, the lighting calculation and the ceiling reach are all settled — it is only the plan setting-out that waits on the geometry. That is a useful split, because it means the job is not blocked.

How much light does it give?

4800 lumens at 2000 lumens per metre, or 100 lumens per watt from 48W — the most any fitting in the three linear ranges gives, being the longest length at the more efficient colour temperature. The 3000K version publishes 4320 lumens.

Can I use it in a damp space?

No — IP20, dry interior only. For bathrooms, covered outdoor areas, commercial kitchens or unsealed bays, ask us about the Domus IMPACT range at IP66 and IK10.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKUsMaxi Curve 2.4m Aluminium 4000K — 30475 Prismatic, 30476 Frosted, 30477 Honeycomb, 30478 Opal, 30479 Black, 30480 Clear
Order codeMAXI-CURVE-2.4M-A-4K
⭐ TWO SUSPENSION POINTSOn a straight pendant they sit on a LINE — ⭐ on an arc they do not
⭐ So they are offsetIn BOTH directions — ⭐ the drawing needs two COORDINATES per point
⚠ And a mis-set pointROTATES the fitting rather than shifting it
⛔ The spacingNOT PUBLISHED on any listing in either range
⭐ ASK FORThe spacing — ⭐ AND whether it is a dimension or coordinates on the arc
⭐ That second halfIs the question people forget — ⭐ it decides whether a drawing can be produced
⚠ Hanging levelA straight fitting off level reads as a TILT — ⭐ a curved one reads as a TWIST
⭐ Which the eye catches fasterIt breaks the symmetry of the arc — ⭐ tell the installer
✅ UNAFFECTED by geometry4800lm · 48W · CRI90 · IP20 · 120° · 3m drop
⭐ SoThe electrical design and lighting calculation are settled — ⚠ only plan setting-out waits

Variant specifications

Setting outStraight fittingCurved in plan
Points sit onA line⭐ The arc
Drawing needsOne dimension⭐ Two coordinates per point
⚠ A mis-set pointShifts it⭐ ROTATES it
⚠ Off level reads asA tilt⭐ A twist — more visible
