Domus Lighting
SKU: 30454

Domus Maxi Curve 2.4m Long Pendant Aluminium Dimmable 3k

Beam angle for focused or wide lighting
120° Beam angle for focused or wide lighting
Dimmable
Dimmable
$789.00
$789.00
Product Description
Product Description
x

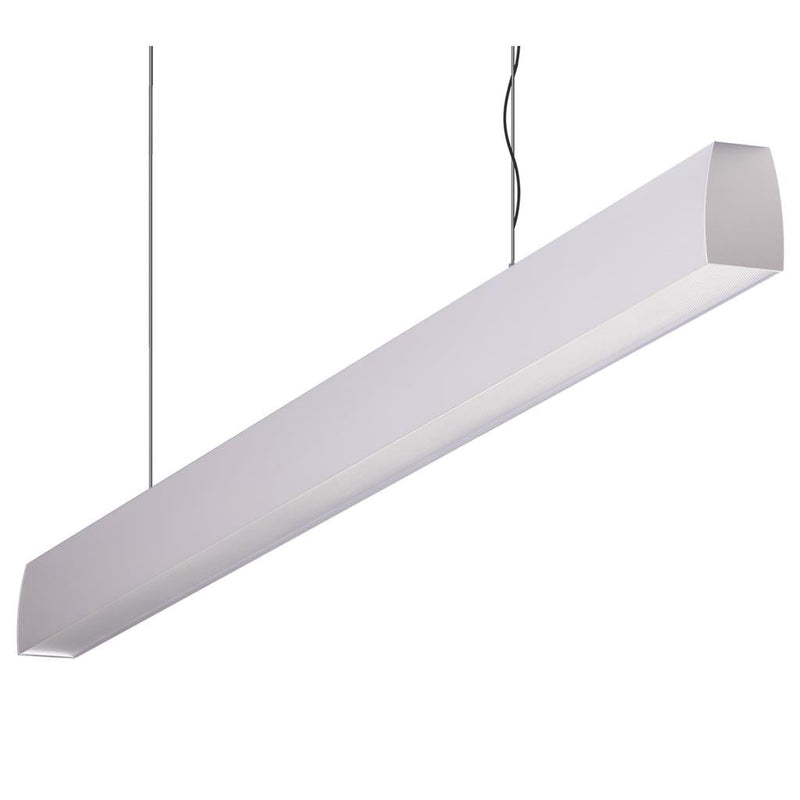

The Domus Maxi Curve is a 2.4 m suspended LED linear pendant — 48 W, 4320 lm, 3000 K at CRI90, dimmable, in an aluminium body, in six finishes.

⛔ Made to order, and no lead time is published

Domus asks you to call and confirm it. ⭐ We will.

⭐ How much space does a 2.4 m curved fitting actually occupy?
  • ⭐ Domus publishes 2400 mm. ⚠ On a curved fitting that is the length ALONG the fitting, ⭐ and what you set out against a table or a wall is the CHORD — the straight distance between its two ends.
  • ⭐ The chord is always shorter, and how much shorter depends entirely on the radius. ⛔ The radius is not published — ⭐ but the size of the uncertainty is calculable, and worth seeing:
If the radius is… The chord is Shorter by
6 m — a very gentle sweep ≈2384 mm ⭐ 16 mm — negligible
4 m ≈2364 mm 36 mm
3 m ≈2337 mm 63 mm
2 m ≈2259 mm ⚠ 141 mm
1.5 m — a tight arc ≈2152 mm ⛔ 248 mm — a quarter of a metre
  • ⭐ So the honest answer is: somewhere between 2.15 m and 2.4 m of straight run, ⭐ and the radius decides where in that band.
  • ⭐ On a gentle curve you can treat 2400 mm as the setting-out figure and be within a fingernail. ⚠ On a tight one you would be out by a quarter of a metre — ⭐ which over a 3.6 m table changes the proportion visibly.
  • ⭐ Which is exactly why the radius is the question to ask — ⭐ not because a figure is missing, but because the figure that IS published means different things depending on it.
  • ⭐ Ask us for the radius and we will give you the chord.
✅ What is unaffected by any of this

⭐ The light and the load. ⭐ 4320 lm and 48 W hold however the fitting is shaped — ⭐ the strip is the same length either way, which is why 48 W ÷ 20 W/m gives exactly 2.4 m. ⭐ So you can size circuits and calculate levels now, ⚠ and resolve the geometry separately.

✅ The published specification
Specification Value
Light output ⭐ 4320 lm — 1800 lm/m, 90 lm/W
Colour rendering ⭐ CRI90 at 3000 K
Power 48 W at 240 V — ⭐ exactly 20.0 W/m
Stated length 2400 mm — ⚠ the arc; the chord is shorter
Beam 120°, down only
IP rating IP20 — ⚠ dry interior only
Suspension 3 m drop supplied
Warranty ⭐ 3 years, replacement
⛔ Radius · chord · lifespan · spacing · weight ⛔ Not published
Where it works
  • 3.6 m tables and long counters — ⚠ subject to the chord.
  • Timber and concrete soffits — ⭐ where aluminium is sympathetic.
  • ⭐ Where the load and output matter more than the setting-out.
  • ⛔ Not set out from 2400 mm until we have the radius.
  • ⛔ Not anywhere damp — ⚠ IP20.
Specifying it

2.4 m suspended LED linear pendant. 4320 lm, 48 W (90 lm/W), 3000 K, CRI90. 120° down-only. IP20. 2400 mm stated. 3 m drop. PLEX-COB-20W strip, integral dimmable driver, DALI and emergency on request. Anodised aluminium body. Six finishes. 3-year replacement warranty. Order code MAXI-CURVE-2.4M-A-3K. ⭐ THE SPACE IT OCCUPIES IS BETWEEN 2.15m AND 2.4m, AND THE RADIUS DECIDES WHERE — at a gentle 6m radius the chord is 16mm shorter than the stated length; at a tight 1.5m radius it is 248mm shorter, a quarter of a metre. ⭐ So the radius is the question to ask, not because a figure is missing but because the published one means different things depending on it. ✅ The 4320 lm and 48 W are unaffected either way.

Supplied and supported by Lights For You.

Questions
How much space will it actually take up?

Somewhere between about 2.15m and 2.4m of straight run, and the radius decides where in that band. Domus publishes 2400mm, which on a curved fitting is the length along the fitting; what you set out against a table or a wall is the chord — the straight distance between its two ends — and the chord is always shorter.

How much shorter?

It depends entirely on the radius, and the size of the uncertainty is worth seeing. At a very gentle 6m radius the chord is about 2384mm — 16mm shorter, negligible. At 4m it is 36mm shorter, at 3m 63mm, at 2m 141mm. At a tight 1.5m radius it is about 2152mm, which is 248mm shorter — a quarter of a metre.

So what should I do?

Ask us for the radius and we will give you the chord. The point is not that a figure is missing; it is that the figure Domus does publish means different things depending on the radius. On a gentle curve you can treat 2400mm as the setting-out dimension and be within a fingernail. On a tight one you would be out by a quarter of a metre, which over a 3.6m table changes the proportion visibly.

Is anything unaffected by this?

The light and the load. 4320 lumens and 48W hold however the fitting is shaped, because the strip is the same length either way — which is why 48W divided by 20 watts per metre gives exactly 2.4m. So you can size circuits and calculate levels now and resolve the geometry separately. That is a useful split: the electrical design is not waiting on anything.

How much light does it give?

4320 lumens at 1800 lumens per metre, or 90 lumens per watt from 48W, at 3000K and CRI90. The 4000K version publishes 4800 lumens for the same power — about 11% more. Those are the same figures the Maxi 40 and Maxi 50 publish at this length.

Which finish should I choose?

Opal where the fitting is seen close and side-on, since it gives the most uniform face; frosted above head height for more output; prismatic over screens, which redirects shallow-angle light downward and keeps it. Per-finish output is not published — one figure covers the listing.

Can I use it in a damp space?

No — IP20, dry interior only. For bathrooms, covered outdoor areas, commercial kitchens or unsealed bays, ask us about the Domus IMPACT range at IP66 and IK10.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKUsMaxi Curve 2.4m Aluminium 3000K — 30454 Prismatic, 30455 Frosted, 30456 Honeycomb, 30457 Opal, 30458 Black, 30459 Clear
Order codeMAXI-CURVE-2.4M-A-3K
⚠ Stated length2400mm — ⭐ the ARC; the CHORD is what you set out against
⭐ At a 6m radiusChord ≈2384mm — ⭐ 16mm shorter, negligible
⭐ At 4mChord ≈2364mm — 36mm shorter
⭐ At 3mChord ≈2337mm — 63mm shorter
⚠ At 2mChord ≈2259mm — ⚠ 141mm shorter
⛔ At 1.5mChord ≈2152mm — ⛔ 248mm shorter, a QUARTER of a metre
⭐ So the space it occupiesBetween ≈2.15m and 2.4m — ⭐ the radius decides where
⭐ Why the radius is THE questionThe published figure means different things depending on it
✅ UNAFFECTED4320lm and 48W — ⭐ the strip is the same length either way
⭐ Corroboration48W ÷ 20 W/m = exactly 2.4m

Variant specifications

RadiusChordShorter byMatters?
⭐ 6m≈2384mm16mm⭐ No
3m≈2337mm63mm⚠ Marginally
⚠ 2m≈2259mm141mm⚠ Yes
⛔ 1.5m≈2152mm⛔ 248mm⛔ Very
