Domus HYDRO-120 15/30W 1200mm LED DALI Emerg IP65 Batten

IP65 – suitable for outdoors
IP65 – suitable for outdoors
Color Temprature Changing Technology
Color Temprature Changing Technology
$660.95
$660.95
Product Description
Product Description
x

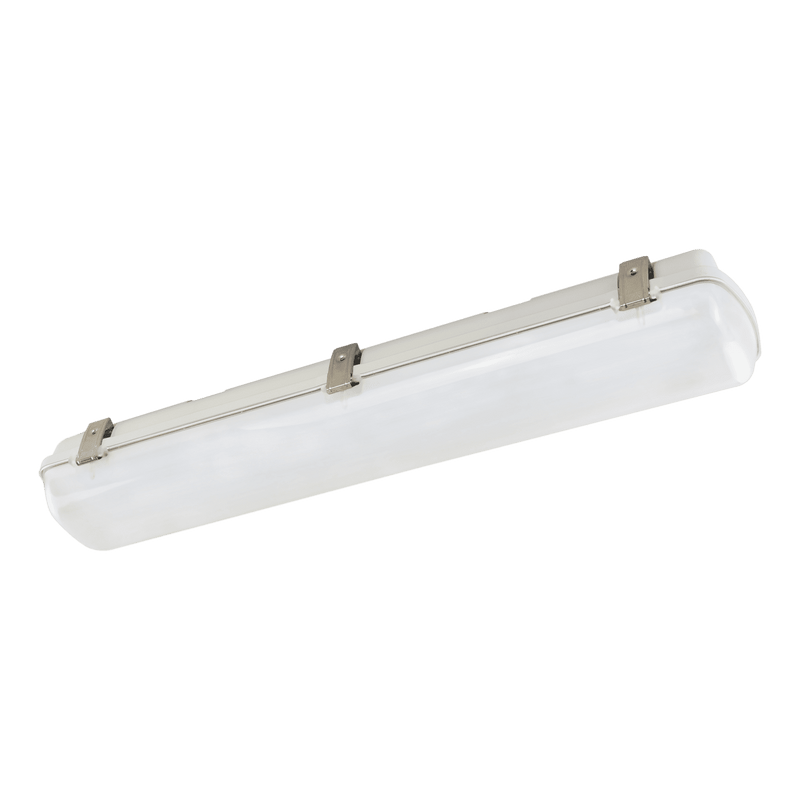

The Domus HYDRO-120 DALI Emergency is a 1,200 mm weatherproof LED batten with DALI control and an emergency function — switchable 15 W or 30 W, switchable 3000 K / 4000 K / 5000 K, IP65.

⛔ The emergency specification is not published, and that is the specification
What an emergency luminaire is specified by Recorded?
Battery duration (90 or 120 minutes) ⛔ No
Classification (the figure that sets spacing) ⛔ No
Battery warranty ⛔ No
Test provision (self-test, or manual) ⛔ No
A datasheet of any kind ⛔ No
  • ⛔ Every figure a designer needs to place an emergency fitting is absent, on a product whose emergency function is the reason to buy it.
  • ⭐ AND THE SAME BATTEN PUBLISHES ALL OF IT IN ITS NON-DALI FORM. The HYDRO-120-EM — same body, same platform — carries a verified sheet recording full compliance to AS/NZS 2293, a LiFePO4 6.4 V 1,500 mAh battery with a 7-hour charge, non-maintained / maintained rating and a classification of C0: D50 · C90: D32.
  • ⭐ So there is a specific thing to ask for rather than a general gap. ⚠ One caveat travels with those figures: that sheet gives TWO durations — “1.5 Hours Discharging Time” (90 min) and “120 Min”. 90 against 120 minutes is a compliance distinction.
  • ⭐ The EVAC range also publishes its classification on every sheet, and the BOLT emergency battens publish 90 and 120 minutes — ⭐ so this is a process failure on these listings, not a house standard.
  • ⚠ Emergency lighting is not a preference, it is a compliance item. Duration and classification are what a certifier checks and what a spacing calculation uses — a lumen figure cannot substitute.
  • ⭐ Do not specify this from the page. ⭐ Tell us the space and we will get the duration, the classification and the test arrangement from Domus in writing before you order.
⭐ What DALI adds to an emergency fitting
  • ⭐ On a DALI system an emergency luminaire can be addressed and tested from the controller rather than by someone walking the building with a key.
  • ⭐ Which is the real argument for a DALI emergency batten: AS 2293 requires periodic discharge testing, and doing that centrally rather than manually is where the cost comes back.
  • ⚠ But whether THIS fitting supports addressable self-test is not stated — ⛔ it is one of the things the record does not say. ⭐ Ask us before assuming the testing regime you are planning will work.
  • ⚠ DALI needs a control system. Without one, this is a fixed-output emergency batten that cost more than a plain one.
⛔ Two more record errors it shares with its siblings
  • ⛔ Lamp type: T8. ⚠ A fluorescent tube format — ⭐ this batten has sealed SMD LEDs and takes no tube. The sibling with a verified datasheet records SMD LEDs and no lamp type. No relamping; the emergency battery, not a tube, is the consumable.
  • ⛔ Application: Indoor, on an IP65 weatherproof batten.
  • ⛔ Wattage: 30 W, where it is switchable 15 W or 30 W. ⚠ On an emergency fitting the maintained output setting matters — confirm it with us.
Specifying it
  • IP65, polycarbonate and stainless steel, 240 V, switchable wattage and colour temperature.
  • ⚠ Expect about 1,263 mm rather than 1,200 mm — the sibling's sheet figure. ⛔ This listing has no sheet.
  • ⛔ No warranty recorded. ⭐ The standard HYDRO-120 records 5 years — ⚠ and on an emergency fitting the question is whether the battery is included in the term. ⭐ The EVAC range says “including battery”; the BOLT battens split 3 years fitting and 1 year battery. Ask us which applies here.
Where it works
  • Carparks, loading docks and plant rooms requiring emergency cover.
  • Washdown and undercover areas on a DALI system.
  • Buildings with central emergency testing — ⚠ once addressable self-test is confirmed.
  • ⛔ Not specified from this page — ⭐ the duration and classification must come from us first.
Specifying it

1,200 mm weatherproof LED batten, DALI control with emergency function. Switchable 15 W / 30 W. Switchable 3000 K / 4000 K / 5000 K. IP65. Polycarbonate and stainless steel. 240 V. ⛔ NO BATTERY DURATION, CLASSIFICATION, BATTERY WARRANTY OR TEST PROVISION IS RECORDED, and there is no datasheet — on an emergency luminaire. ⭐ The non-DALI HYDRO-120-EM publishes all of it: AS/NZS 2293, a LiFePO4 6.4 V 1,500 mAh battery and a C0: D50 / C90: D32 classification — ⚠ though its sheet gives two durations, 90 and 120 minutes. Ask us for this SKU's figures in writing before ordering. ⛔ Its record says T8: it has sealed SMD LEDs and takes no tube. ⛔ It records "Indoor" on an IP65 batten, and 30W where it is switchable 15/30W.

Supplied and supported by Lights For You.

Questions
How long does the battery run for?

Not recorded, and neither is the classification, the battery warranty or the test provision — there is no datasheet on this listing at all. On an emergency luminaire that is the specification: duration and classification are what a certifier checks and what a spacing calculation uses, and a lumen figure cannot substitute. What the page can now tell you is exactly what to ask for: the HYDRO-120-EM — the same batten in non-DALI form — publishes a verified sheet with full AS/NZS 2293 compliance, a LiFePO4 6.4V 1,500mAh battery, a 7-hour charge, non-maintained/maintained rating and a classification of C0: D50, C90: D32. One caveat travels with it: that sheet gives two durations, "1.5 Hours Discharging Time" (90 minutes) and "120 Min", and 90 against 120 is a compliance distinction. So do not specify this listing from its page — tell us the space and we will get the classification, the duration and the maintained mode in writing.

Can it be tested from the DALI controller?

Not stated, and it is one of the things worth settling before you order. On a DALI system an emergency luminaire can in principle be addressed and tested centrally rather than by someone walking the building with a key — and since AS 2293 requires periodic discharge testing, doing that centrally is where the cost of DALI comes back. But whether this particular fitting supports addressable self-test is not recorded. Ask us before assuming the testing regime you are planning will work.

Does it take a T8 tube?

No, despite what the record says. It lists bulb type as T8, a fluorescent tube format, but this batten has sealed SMD LEDs and takes no tube — the sibling HYDRO-120 with a verified datasheet records SMD LEDs and no lamp type at all. There is no relamping. On an emergency fitting the consumable is the battery, not a tube, which is a rather more important thing to plan for.

Is the battery covered by the warranty?

No warranty is recorded on this listing at all, and on an emergency fitting the battery question is the one that matters — the housing and LEDs outlast everything, while the battery is what ages and what fails the periodic discharge test. This catalogue does it both ways: the EVAC range says "including battery", and the BOLT emergency battens split three years on the fitting and one on the battery. Ask us which applies here before you order.

Is it really indoor-only?

No — its record says "Indoor" on an IP65 weatherproof batten, which is a contradiction on the face of the listing. That field holds "Indoor" on 340 of 342 Domus records and carries no information. Read the IP rating instead: IP65 means protected against jets of water, and this is built for carparks, loading docks and washdown areas.

What wattage does it run at?

Switchable 15W or 30W, set at installation — though the record says only 30W, dropping the lower setting, the same pattern as 18 of 22 multi-wattage Domus products. On an emergency fitting the maintained output setting matters more than usual, because it affects both the normal-mode light level and the load on the emergency circuit. Confirm the setting with us rather than leaving it to the installer.

How long is it?

Expect about 1,263mm rather than the 1,200mm in the name — that figure comes from the sibling HYDRO-120's datasheet, since this listing has none of its own. Nominal batten lengths never match the actual fitting, so confirm with us before planning a run between obstructions; over five battens the difference exceeds 300mm.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKUHYDRO-120 DALI Emergency Weatherproof Batten — 67454
Type1,200mm weatherproof LED batten, DALI control with emergency function
⛔ Battery durationNOT RECORDED here. ⚠ The non-DALI HYDRO-120-EM sheet gives TWO figures — "1.5 Hours" (90 min) and "120 Min". Ask us
⛔ ClassificationNOT RECORDED here — ⚠ the figure a spacing calculation uses. ⭐ The non-DALI HYDRO-120-EM publishes C0: D50 / C90: D32
⛔ Battery warrantyNOT RECORDED — ⭐ EVAC says "including battery"; BOLT splits 3yr fitting / 1yr battery
⛔ Test provisionNOT RECORDED — ⚠ whether it supports addressable self-test is unstated
⛔ DatasheetNone
⭐ What to doDo not specify from this page — tell us the space and we will get it all in writing
WattageSwitchable 15W / 30W — ⛔ the record says 30W only
Colour temperatureSwitchable 3000K / 4000K / 5000K
⛔ Lamp type recordedT8 — ⚠ ✅ it has sealed SMD LEDs and takes NO tube
⛔ Application recordedIndoor — ⚠ on an IP65 weatherproof batten
IP ratingIP65
⚠ LengthExpect ≈1,263mm (the sibling's sheet figure)
MaterialPolycarbonate and stainless steel
⛔ WarrantyNot recorded — the standard HYDRO-120 records 5 years

Variant specifications

Emergency figureThis listingElsewhere in the Domus catalogue
Battery duration⛔ Not recorded⚠ The HYDRO-120-EM sheet gives BOTH 90 and 120 min
Classification⛔ Not recorded✅ The HYDRO-120-EM publishes C0: D50 / C90: D32
Battery in warranty?⛔ Not recorded✅ EVAC "including battery"
⭐ SoAsk us firstDomus does document this properly elsewhere
