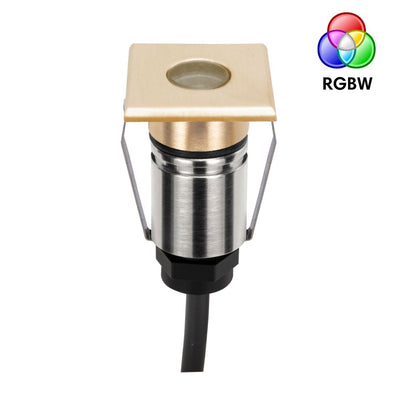

Domus EMIT 25mm RGBW 36° LED 12/24V Decklight

The Domus EMIT-25 RGBW is a 25 mm colour-changing inground light with a Ø19 mm cutout — 1 W, CREE LED, IP67, IK10, with nine fascias in three metalware finishes.

⛔ You may have seen this product twice

SKU 10040 sits on two active listings. Their web addresses are identical except that this one ends in “-1”.

• ⚠ They are one product — same 27 variants, same title, same three verified datasheets. Whichever you order, you receive the same fitting.
• ⭐ It is a duplication artifact left live, not two versions of anything.
• ✅ Nothing about the fitting differs. Order from either.

⛔ It needs a controller and a driver, and the datasheet names the controller

• RGBW has no control of its own. It needs an RGBW colour controller and a 24 V constant-voltage driver, wired in parallel. Neither is included.
• ⭐ The datasheet names it: CHAM-BT-RF-5C, SKU 20141, stocked in this catalogue.
• ⭐ And that receiver is what the CHAM-REM-5C handheld remote pairs with — the remote that does nothing on its own. The chain is: 24 V driver → CHAM-BT-RF-5C → these fittings, with the remote in your hand.
• ⚠ Ordering the fittings alone gets lights that will not change colour. Tell us the layout and we will quote the whole chain.

⭐ Ø19 mm — the smallest inground light in the range

• Ø19 mm without the cannister, Ø24 mm with it. ⚠ Decide before you cut; the cannister is a variant of the separate EMIT 25mm Accessories listing.
• ⭐ At 19 mm the fitting reads as a point of light rather than a fixture — set into a paved edge, a stair nosing or a deck board, which is the point of a minimal inground.
• ⭐ IK10 at that aperture means it still takes foot and vehicle traffic.

⚠ Nine fascias, and the choice changes what the fitting does

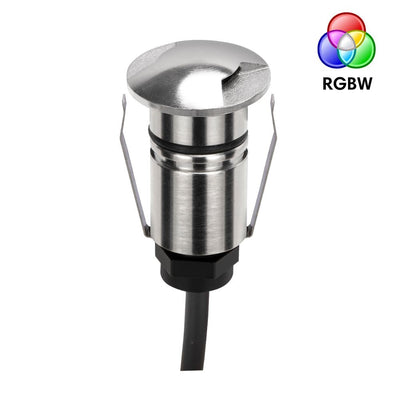

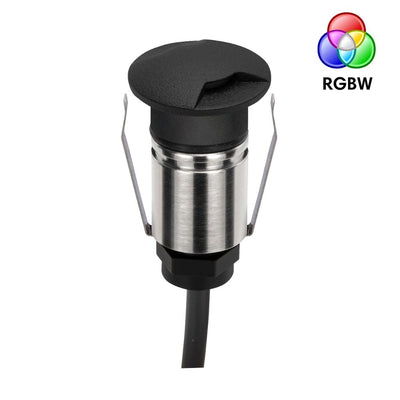

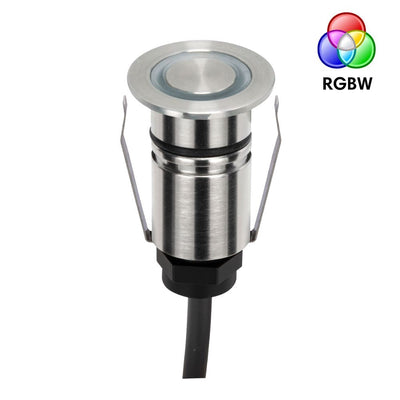

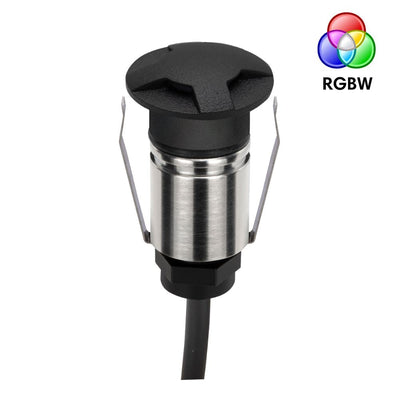

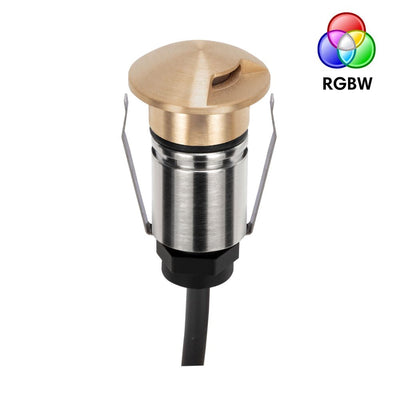

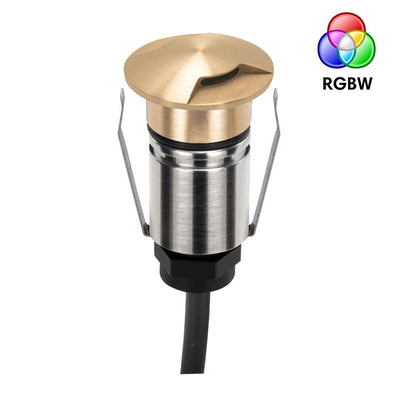

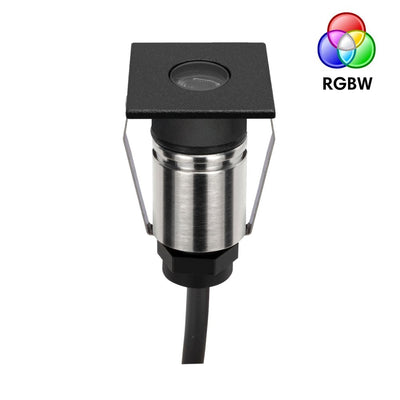

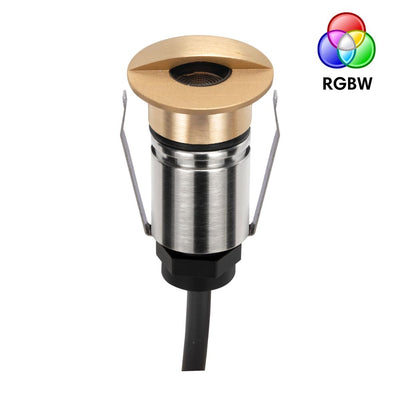

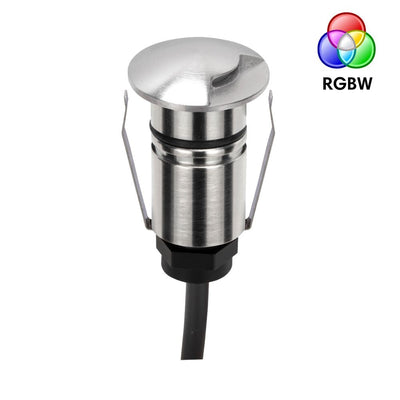

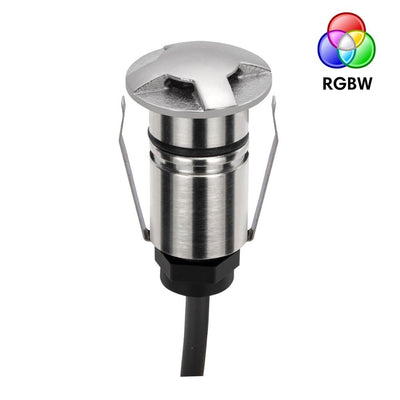

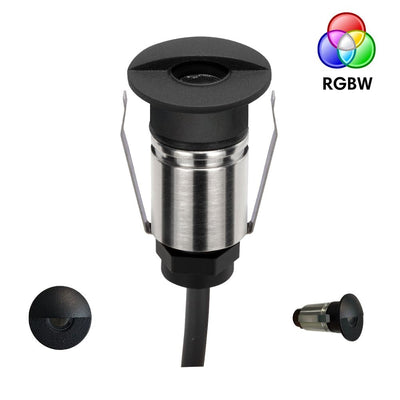

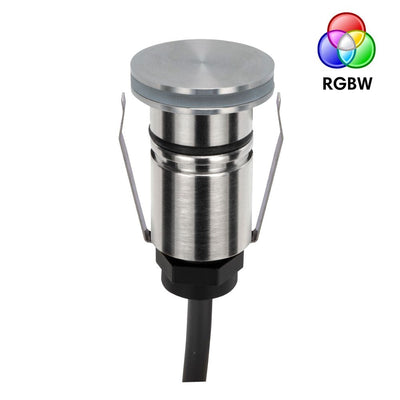

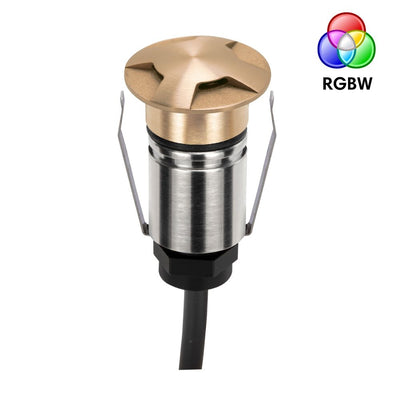

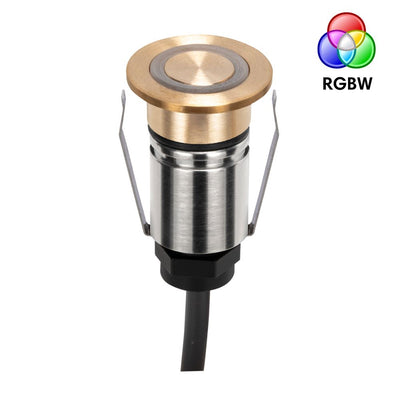

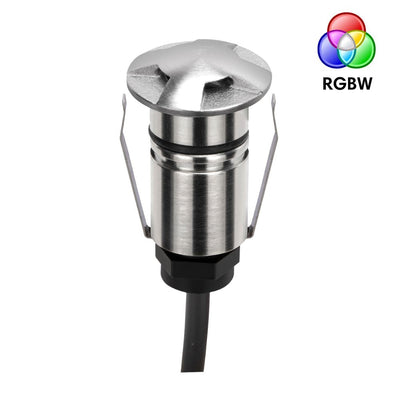

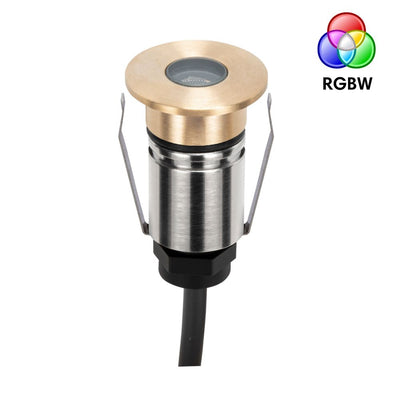

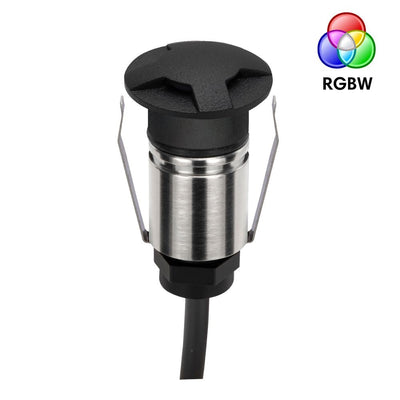

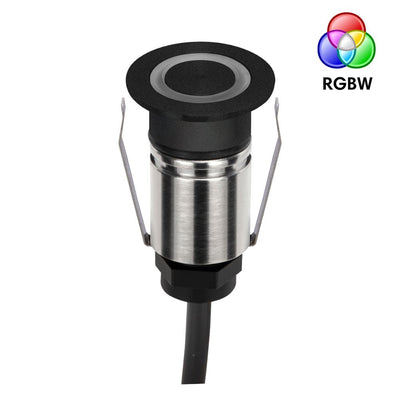

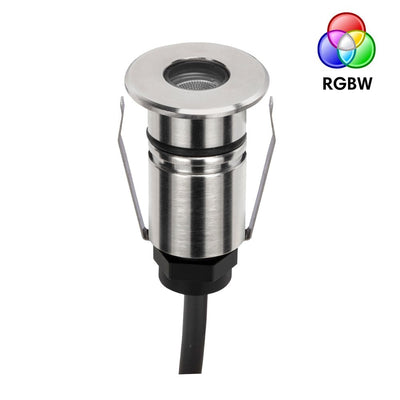

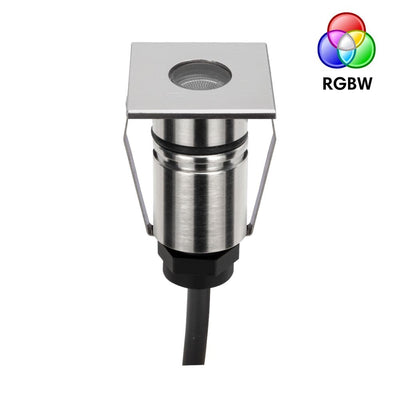

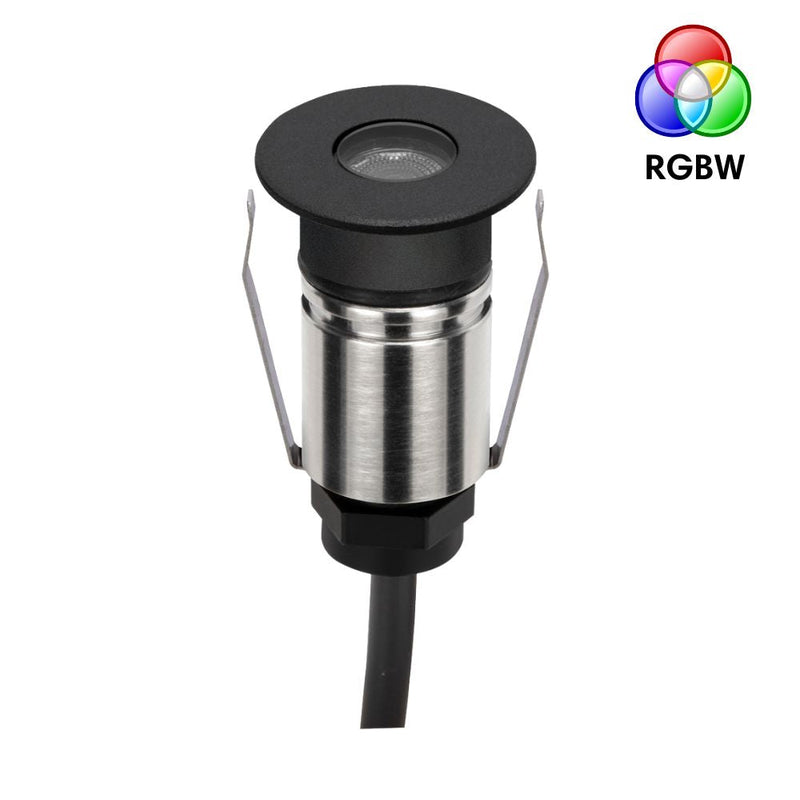

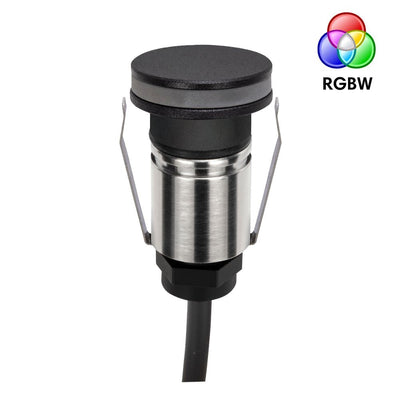

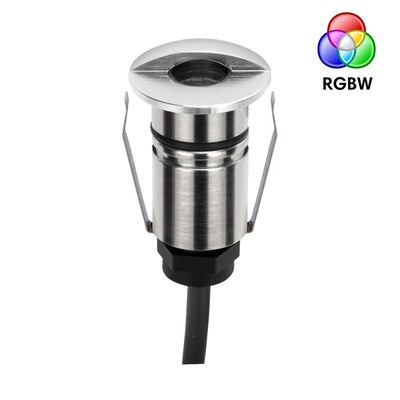

• Round Open, Square Open, Eyelid, 1/2/3/4 Way, Halo, Ring.
• ⚠ On the tri-colour EMIT-25 the datasheet's lumen table shows the open fascias producing about 38 times what the multiway ones do. No equivalent figure is published for the RGBW, and this listing records no lumens.
• ⭐ Open fascias light something; multiway, Halo and Ring fascias mark something. On a colour-changing fitting that distinction matters — a colour marker reads as deliberate, a colour floodlight can read as a nightclub.

Specifying it

• 1 W, CREE, IP67, IK10, 50,000 hrs. ⛔ Not dimmable at the fitting — level and colour come from the controller.
• Beam 19° / 36° / 60°, 36° standard; ⭐ the others are accessory lenses, swappable in place without lifting the fitting.
• ⚠ Voltage: the RGBW datasheet says 24 V DC; our record says 12–24 V. Specify 24 V.

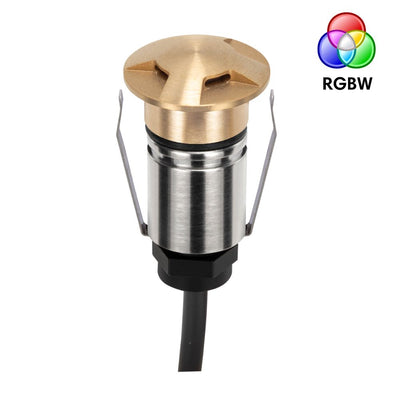

• Black, Stainless Steel or Brushed Brass — ⭐ Antique Brass is a separate listing, which records the same 5-year term in a field rather than on the sheet.

Where it works

• Paved edges, stair nosings and deck boards.
• Colour-changing feature runs under central control.
• Trafficked surfaces — IK10.
• ⛔ Not without a controller and a 24 V driver.
• ⚠ Not cut to Ø19 mm if a cannister may be wanted later.

Specifying it

25 mm RGBW inground light. Cutout Ø19 mm without cannister, Ø24 mm with. 1 W, 24 V DC. CREE LED. RGBW colour changing. Beam 19° / 36° / 60°, 36° standard. IP67, IK10. 50,000 hrs. Nine fascias; Black, Stainless Steel or Brushed Brass. ⛔ Not dimmable at the fitting. ⛔ Requires an RGBW colour controller — CHAM-BT-RF-5C (20141) — and a 24 V constant-voltage driver, wired in parallel. Neither included. ⚠ This SKU also sells on a second listing whose address is identical without the "-1" — one product, two pages. ⭐ Warranty: the datasheet gives 5 years and no product field carries it — ask us to confirm with your order.

Supplied and supported by Lights For You.
