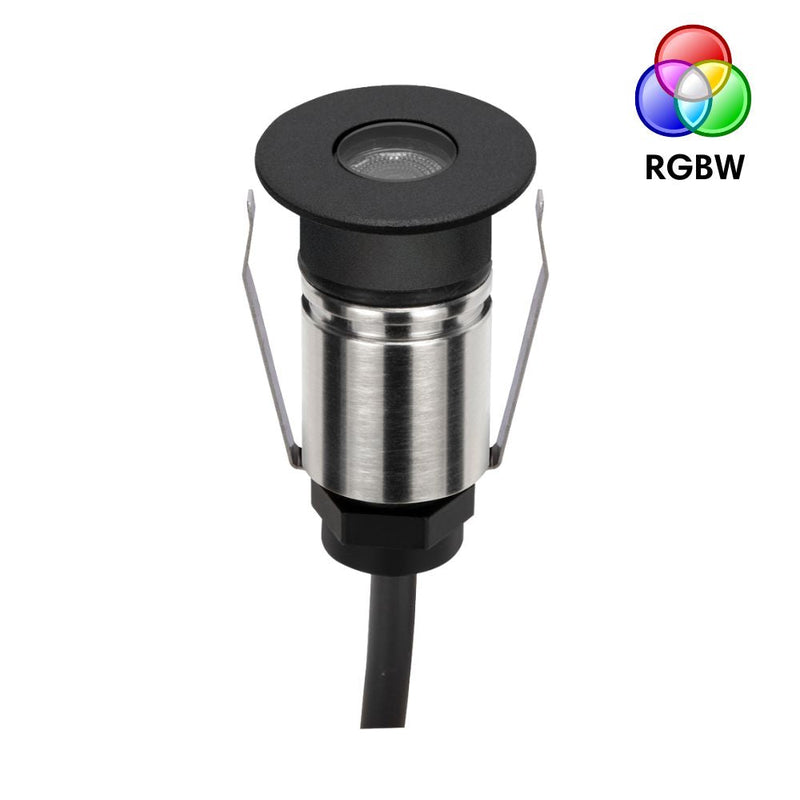

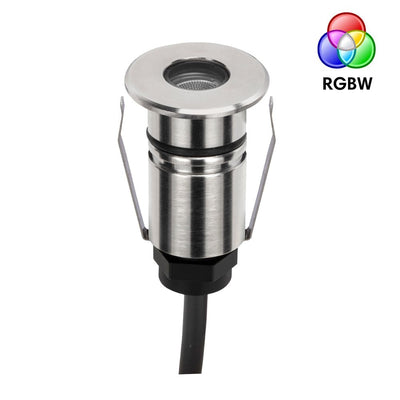

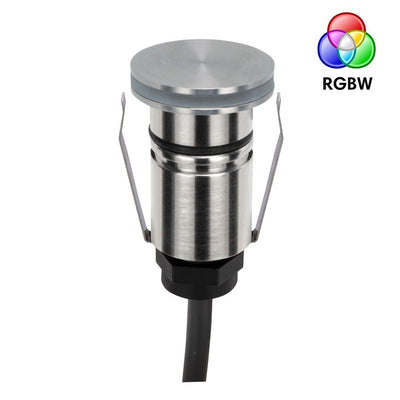

Domus EMIT 25mm RGBW 36° LED 12/24V Decklight

The Domus EMIT-25 RGBW is a 25 mm inground light with a Ø19 mm cutout — 1 W, CREE LED, IP67, IK10, colour-changing RGBW, with nine fascias in three metalware finishes.

⛔ It needs a controller, and the datasheet names the exact one

• RGBW is not self-contained. The fitting has no colour control of its own — it needs an RGBW colour controller and a 24 V constant-voltage driver, neither included.
• ⭐ The datasheet names the controller: the CHAM-BT-RF-5C, SKU 20141. That is unusually specific and worth acting on rather than guessing.
• ⭐ And it closes a loop. The CHAM-REM-5C handheld remote sold in this catalogue does nothing on its own — its datasheet says it must be used with the CHAM-BT-RF-5C receiver. That receiver is exactly what these lights need. So the full chain is: 24 V driver → CHAM-BT-RF-5C receiver → EMIT-25 RGBW fittings, with the CHAM-REM-5C remote in your hand.
• ⚠ Ordering the lights alone gets you fittings that will not change colour. Tell us the layout and we will quote the whole chain.

⭐ A Ø19 mm cutout — the smallest inground light here

• Ø19 mm without the cannister, Ø24 mm with it. ⚠ Decide before you cut — the cannister is a variant of the separate EMIT 25mm Accessories listing, and opening out a hole in paving afterwards is not a small job.
• ⭐ At 19 mm this is small enough to disappear. Set into a paved edge, a stair nosing or a timber deck, the fitting reads as a point of light rather than a fixture — which is the whole point of a minimal inground.
• ⭐ IK10 with a 19 mm aperture means it takes foot and vehicle traffic despite the size.

⚠ Nine fascias, and they change what the fitting does

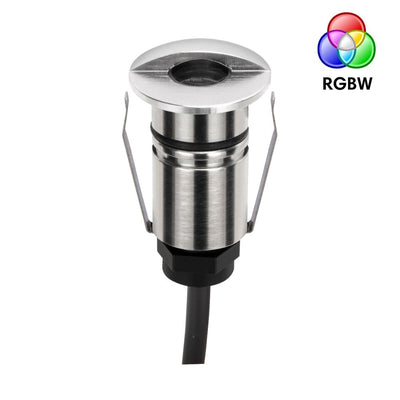

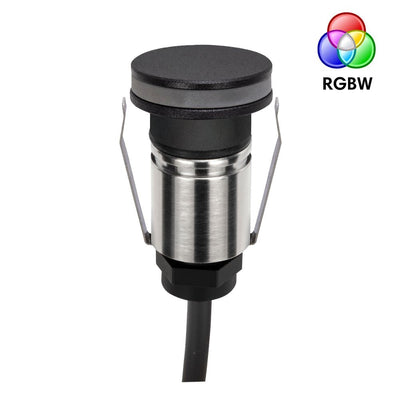

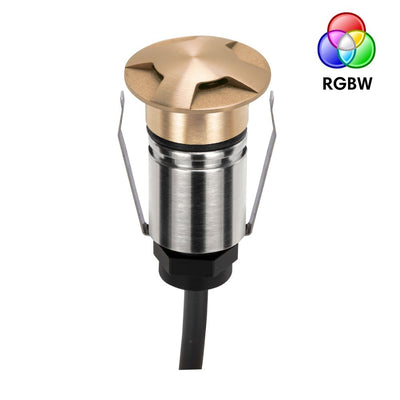

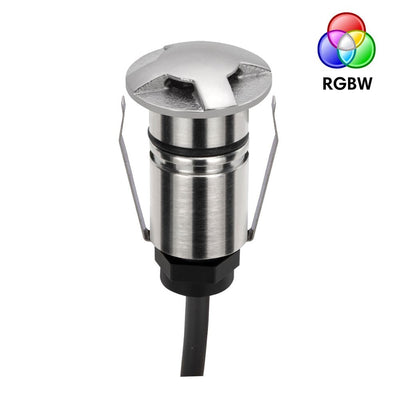

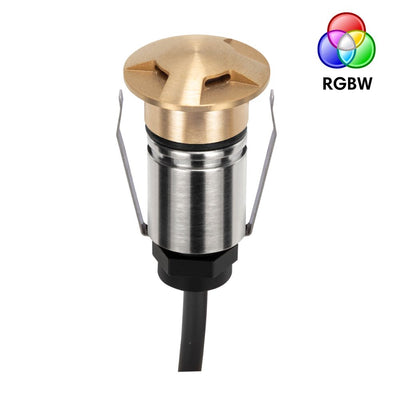

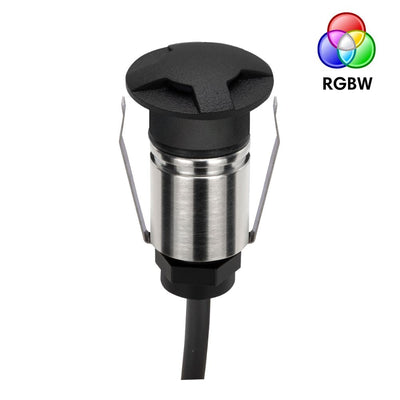

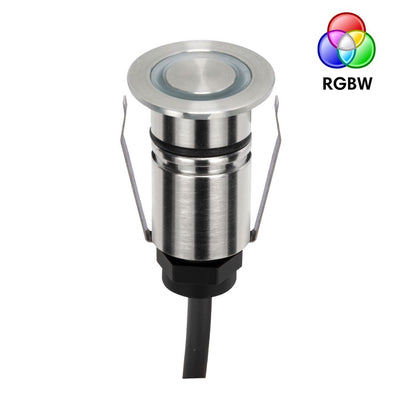

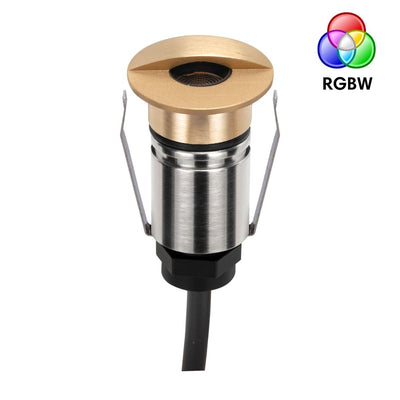

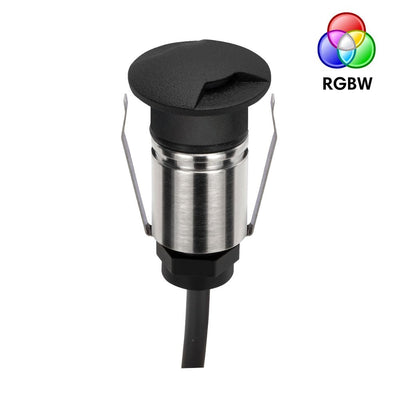

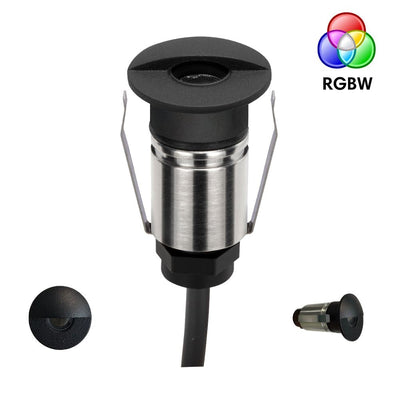

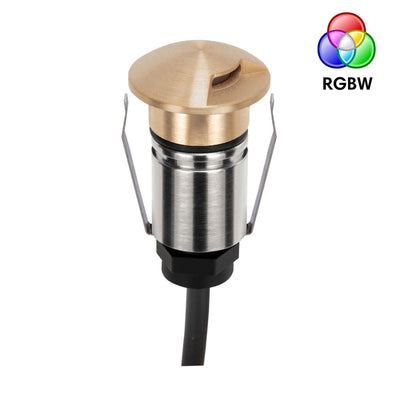

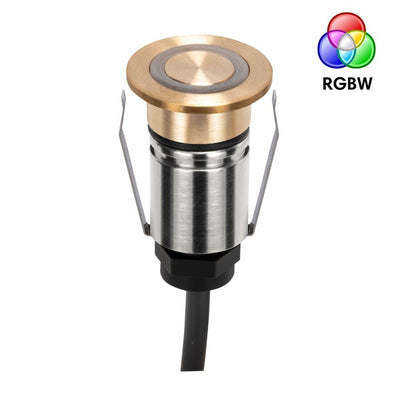

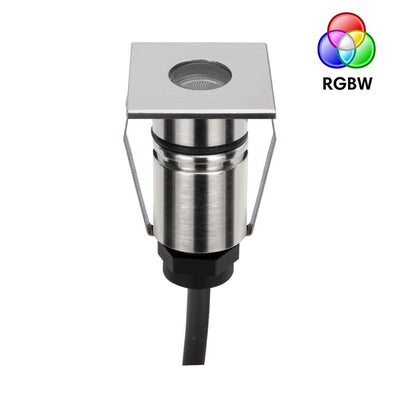

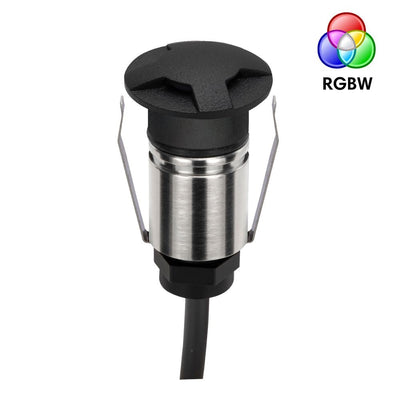

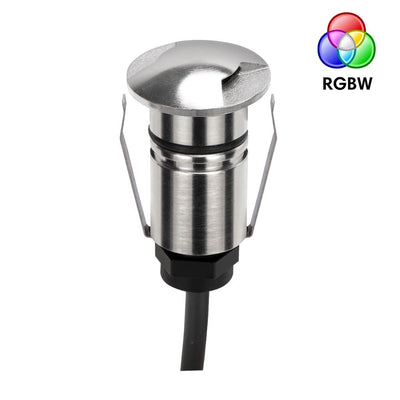

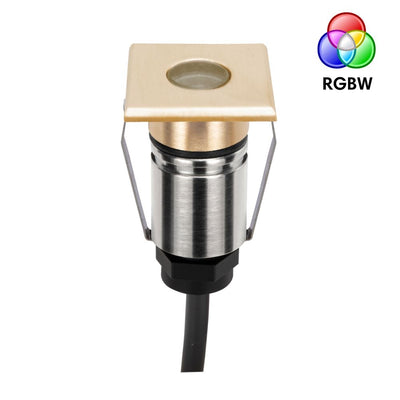

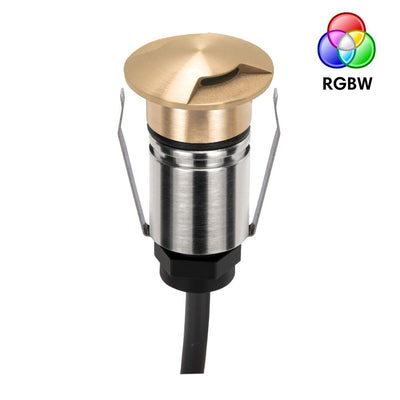

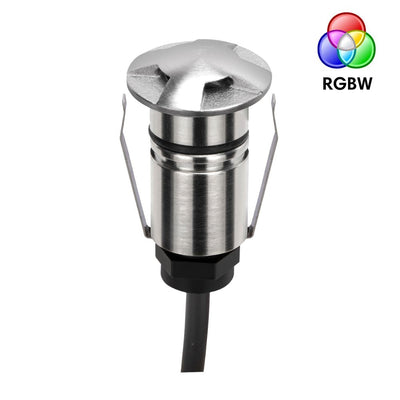

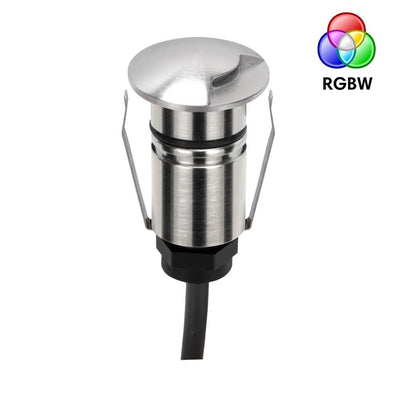

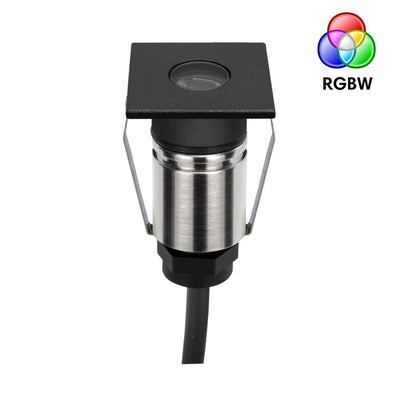

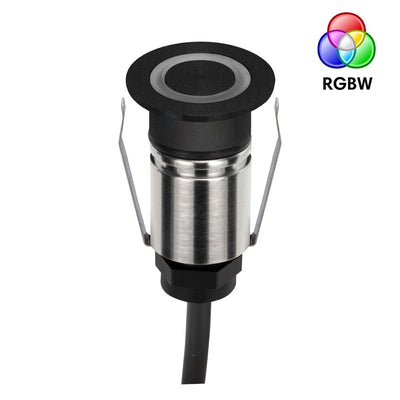

Round Open, Square Open, Eyelid, 1/2/3/4 Way, Halo and Ring. ⚠ On the tri-colour EMIT-25 the datasheet gives a lumen table where the open fascias produce about 38 times what the multiway ones do — and the same fascia set is used here.

• ⭐ Open fascias light something. Multiway fascias mark something. On an RGBW fitting that distinction matters more, because a colour-changing marker reads as a deliberate effect while a colour-changing floodlight can look like a nightclub.
• ⚠ No lumen figure is recorded on this listing at all.

⛔ This product is sold on two pages

SKU 10040 appears on two active listings whose web addresses differ only by a “-1” on the end. ⚠ Same product, same 27 variants, same datasheets. Whichever you order, you receive the same fitting.

Specifying it

• 1 W, CREE, IP67, IK10, 50,000 hrs, ⛔ not dimmable (colour and level come from the controller).
• Beam 19° / 36° / 60°, 36° standard — ⭐ the other two are accessory lenses, swappable without lifting the fitting.
• ⚠ Voltage: the datasheet says 24 V DC for the RGBW version; our record says 12–24 V. Specify 24 V and ask us if you have an existing 12 V system.

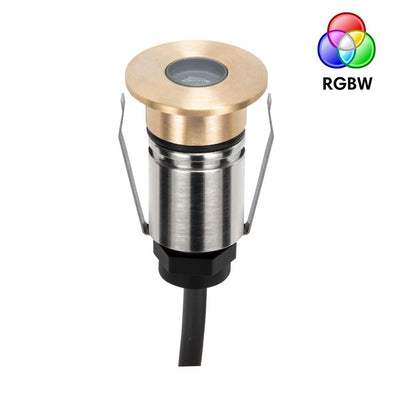

• Metalware: Black, Stainless Steel, Brushed Brass on this listing; ⭐ an Antique Brass version is a separate listing.
• ⛔ No warranty recorded.

Where it works

• Paved edges, stair nosings and deck boards — where 19 mm disappears.
• Colour-changing feature runs under central control.
• Trafficked surfaces — IK10.
• ⛔ Not without a controller and a 24 V driver.
• ⚠ Not cut to Ø19 mm if a cannister may be wanted later.

Specifying it

25 mm RGBW inground light. Cutout Ø19 mm without cannister, Ø24 mm with. 1 W, 24 V DC. CREE LED. RGBW colour changing. Beam 19° / 36° / 60°, 36° standard. IP67, IK10. 50,000 hrs. Nine fascias; Black, Stainless Steel or Brushed Brass. ⛔ Not dimmable. ⛔ Requires an RGBW colour controller — the datasheet names the CHAM-BT-RF-5C (20141) — and a 24 V constant-voltage driver, wired in parallel. Neither is included. ⛔ This SKU is also sold on a second listing whose address ends "-1". ⭐ Warranty: the datasheet gives 5 years and no product field carries it — ask us to confirm with your order.

Supplied and supported by Lights For You.
