Domus Lighting
SKU: 20224

Domus DRIVER 24V DC IP67 Non-Dim

IP67 – waterproof to 1m depth
IP67 – waterproof to 1m depth
$59.00
$59.00
Product Description
Product Description
x

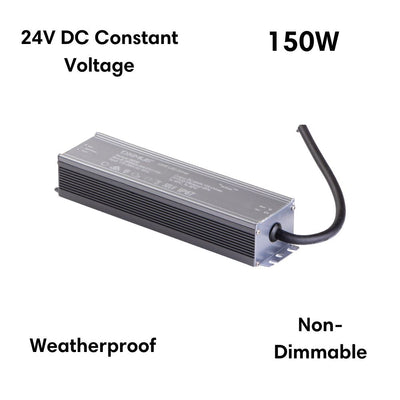

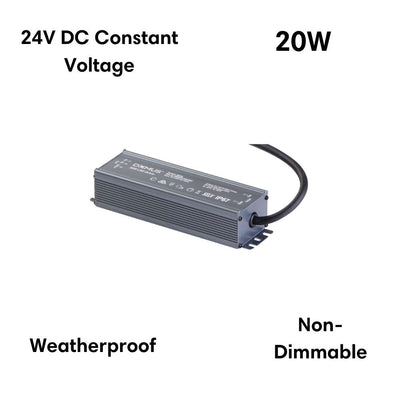

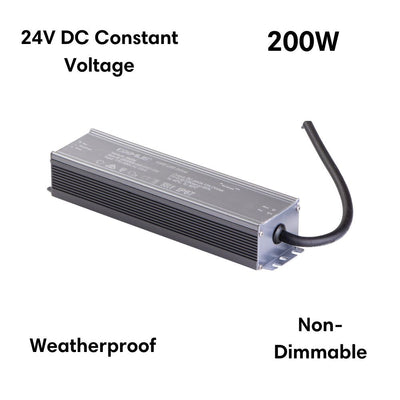

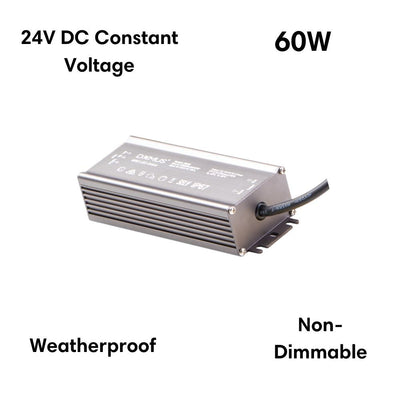

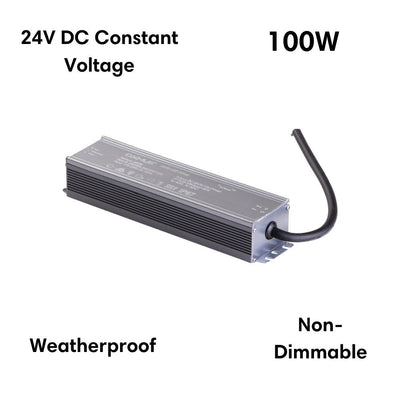

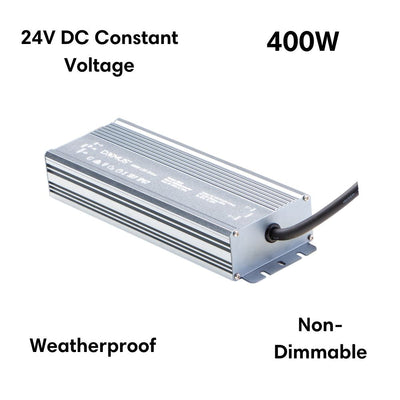

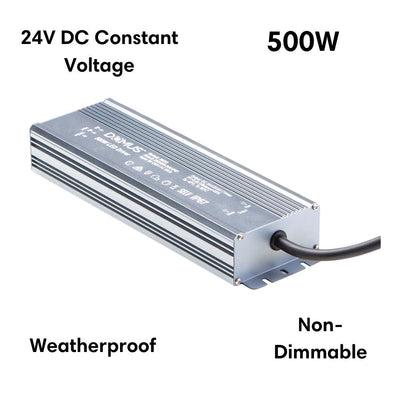

The Domus DRIVER-24V-IP67 is an outdoor non-dimmable 24 V DC constant-voltage LED driver — IP67, in eight wattages from 20 W to 500 W, with 1 m flex and plug.

⭐ Why 24 V rather than 12 V — the point no listing makes
  • ⭐ At the same power, 24 V draws half the current of 12 V. Half the current means half the volt drop over the same cable.
  • ⭐ Volt drop is the usual reason a long low-voltage garden run disappoints — the fittings at the far end are visibly dimmer than those at the near end, and once it is buried there is nothing to do about it.
  • ✅ So on a long run, 24 V is the better system, or it lets you use smaller cable for the same result.
  • ⚠ But the fittings must be 24 V. A 12 V fitting on a 24 V supply will fail immediately. Check every fitting on the run before choosing the voltage — this is a system decision, not a driver decision.
  • ⭐ Domus makes IP67 drivers in both, so the choice is genuinely open at design stage.
⛔ Its datasheet lists ten wattages and the listing sells eight
Wattages
The datasheet prose 20, 30, 60, 100, 150, 200, 240, 300, 400, 500 W
This listing's options 20, 60, 100, 150, 200, 300, 400, 500 W
  • ⛔ The 30 W and 240 W are missing from the dropdown.
  • ⭐ That is a stocking gap rather than a data error — the sizes exist, and a specifier reading the datasheet will design around one and then find it unavailable.
  • ✅ Ask us if you need either and we will find out whether Domus can supply it.
  • ⚠ Otherwise round up: use the 60 W where the sheet suggests 30 W, and the 300 W where it suggests 240 W. Headroom is never wasted on a driver.
⭐ IP67, and the working range
  • Dust-tight and rated for temporary immersion — a genuine garden-bed rating.
  • Working range −40 °C to +60 °C, 20–90% RH non-condensing. ⭐ The +60 °C ceiling matters in Australia: a driver in an enclosure in full summer sun runs far hotter than the air around it.
  • ⚠ Temporary immersion is not permanent. Mount it above the water line or in a drained enclosure.
⭐ Protection and wiring
  • Secondary-side short-circuit protection — ⭐ a cable cut by a spade shuts the driver down rather than damaging it.
  • Thermal overload, over-temperature and over-voltage protection.
  • Efficiency up to 89%; PF >0.95. 150 × 44 × 32 mm, 240 g.
  • ⭐ Parallel wiring, never series. ⚠ Size with about 20% headroom.
  • ⚠ At 500 W and 24 V that is over 20 A — still a real cable calculation, though half what the 12 V equivalent would draw.
⛔ Two record entries worth knowing
  • ⛔ The 5-year replacement warranty is in the datasheet prose and in no field. ⭐ The longest term in this catalogue, on the component that fails first.
  • ⛔ application: Indoor on an IP67 garden driver — a field that holds “Indoor” on 340 of 342 Domus records. Read the IP67.
Where it works
  • Long garden runs, where 24 V halves the volt drop.
  • 24 V strip, inground uplighters and spike lighting.
  • Buried or ground-level enclosures, at IP67.
  • ⛔ Not with 12 V fittings — they will fail immediately.
  • ⛔ Not where dimming is needed.
Specifying it

Outdoor non-dimmable 24 V DC constant-voltage LED driver. IP67. 20 / 60 / 100 / 150 / 200 / 300 / 400 / 500 W. Efficiency up to 89%, PF >0.95. 150 × 44 × 32 mm, 240 g. Working range −40 °C to +60 °C, 20–90% RH non-condensing. Secondary-side short circuit, thermal overload, over-temperature and over-voltage protection. 1 m flex and plug. Parallel wiring. ⛔ Its datasheet lists 30 W and 240 W sizes that this listing does not sell — ask us if you need either. ⛔ Our record lists 20 W, the smallest, and calls this an indoor product. ⭐ Its 5-year warranty is in the datasheet prose and in no field.

Supplied and supported by Lights For You.

Questions
Should I use 24V or 12V?

For a long run, 24V — and no listing explains why. At the same power, 24V draws half the current of 12V, which means half the volt drop over the same cable. Volt drop is the usual reason a long low-voltage garden run disappoints: the fittings at the far end are visibly dimmer, and once the cable is buried there is nothing to do about it. But the fittings must be 24V — a 12V fitting on a 24V supply fails immediately. Check every fitting on the run before choosing; this is a system decision, not a driver one.

Why does the datasheet list wattages I cannot buy?

It lists ten sizes — 20, 30, 60, 100, 150, 200, 240, 300, 400 and 500W — and this listing sells eight, missing the 30W and the 240W. That is a stocking gap rather than a data error: the sizes exist, but a specifier reading the datasheet will design around one and then find it unavailable. Ask us if you need either and we will find out whether Domus can supply it. Otherwise round up — the 60W where the sheet suggests 30W, the 300W where it suggests 240W. Headroom is never wasted on a driver.

Which wattage do I need?

Add up the load and allow about 20% headroom, because running a driver at its rated maximum shortens its life. And note the current: at 500W and 24V you are drawing over 20 amps, which is still a real cable calculation even though it is half what a 12V equivalent would pull. Above about 150W, several smaller drivers near their loads usually beats one large one at the origin.

Can I bury it in a garden bed?

IP67 is dust-tight and rated for temporary immersion, so yes — a genuine garden-bed rating rather than just a rain rating. But temporary immersion is not permanent: a driver sitting where water stands after every storm will fail eventually, so mount it above the water line or in a drained enclosure even at IP67.

How hot can it get?

Its working range is −40°C to +60°C at 20–90% RH non-condensing, and the +60°C ceiling is the figure that matters in Australia — a driver in an enclosure in full summer sun runs far hotter than the air around it. Worth knowing that the dimmable 12V IP67 driver in this range only goes to +45°C, so where heat is a concern and dimming is not needed, a non-dimmable driver like this one is the more robust choice.

What protection does it have?

Secondary-side short-circuit protection, thermal overload, over-temperature and over-voltage protection — all stated in the datasheet prose and none of it in a product field. The short-circuit protection is the one that earns its keep in a garden: a low-voltage cable cut by a spade shuts the driver down instead of damaging it, and that happens more often than people expect.

What is the warranty?

Five years, stated in the datasheet prose as a replacement warranty, and in no product field. It is the longest term in this Domus catalogue and it matters most on a driver — the driver is what fails first in a garden installation and the fittings outlive it. On a buried run the labour to reach it dwarfs the part. Ask us to confirm it in writing with your order.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKUsDRIVER-24V-IP67 non-dim — 20224 20W through 20233 500W (eight variants)
TypeConstant-voltage LED driver, outdoor, NON-dimmable
Output24V DC — ⭐ half the current and half the volt drop of 12V at the same power
Wattages sold20 / 60 / 100 / 150 / 200 / 300 / 400 / 500W — ⛔ our record lists 20W
⛔ Wattages on the datasheet but NOT sold30W and 240W — a stocking gap. Ask us if you need either
IP rating⭐ IP67 — dust-tight, temporary immersion. ⚠ Not permanent immersion
Working range⭐ −40°C to +60°C, 20–90% RH non-condensing
Dimming⛔ Not dimmable
ProtectionSecondary-side short circuit, thermal overload, over-temperature, over-voltage
EfficiencyUp to 89%; power factor >0.95
Size / weight150 × 44 × 32mm, 240g
Wiring⭐ Parallel — not series
⛔ Fitting voltageEvery fitting on the run must be 24V. A 12V fitting will fail immediately
Supply240V AC, 1m flex and plug
Application⛔ Our record says Indoor. It is an IP67 outdoor driver
Warranty⭐ 5 years per the datasheet prose — ⛔ in no product field

Variant specifications

24V (this one)12V equivalent
Current at 500W⭐ Over 20A⚠ Over 40A
Volt drop on the same cable⭐ HalfDouble
Long runs✅ The better system⚠ Fittings dim at the far end
⛔ Fittings must be24V — no exceptions12V
