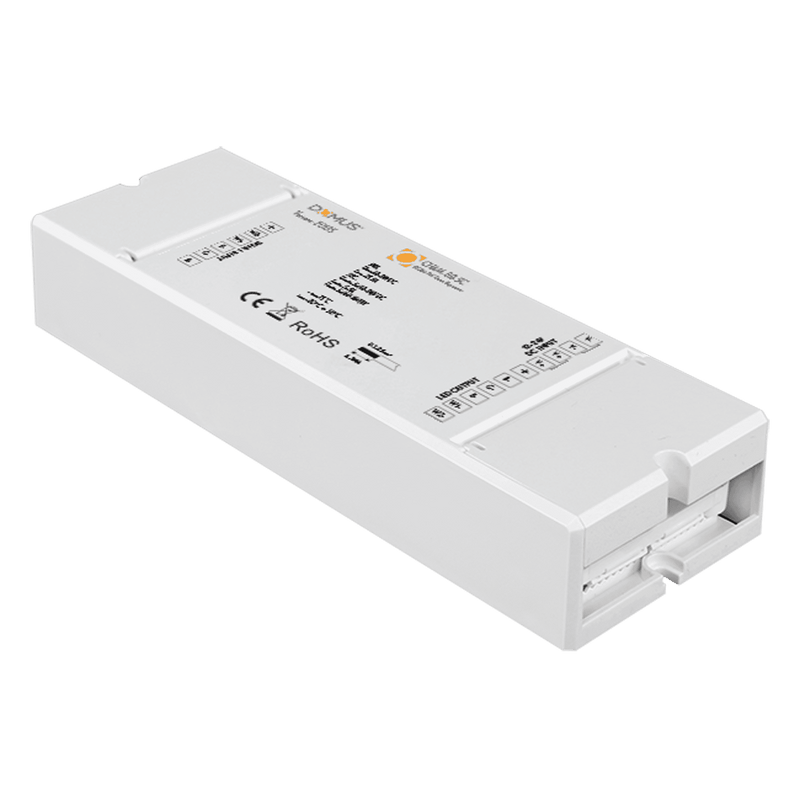

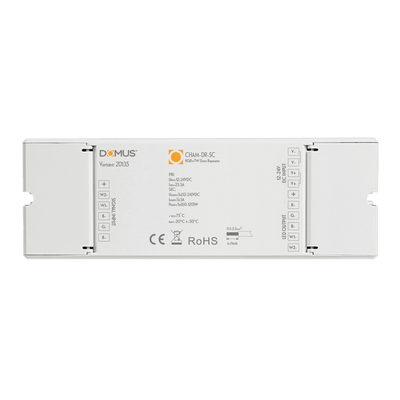

Domus CHAM DR 5C/ Rgb+tw Data Repeater

The Domus CHAM-DR-5C is a 5-channel signal data repeater for 12–24 V DC constant-voltage LED. It duplicates the signal from a master controller without loss, so one controller can drive more strip than its own load limit allows.

⭐ The problem it solves, which almost nothing else does

• A master controller has a load limit, and a long strip run or a multi-zone installation exceeds it well before the design is finished.
• ⭐ The repeater takes the master’s signal and reproduces it at full strength, driving its own load. The master keeps control; the repeater supplies the current.
• ⭐ And it does so without drift. On RGB, RGBW, RGB+TW or single colour, the colour on the repeated section stays the same as on the master’s. That is the whole point — two sections of a colour-changing cove that are a shade apart is a defect you cannot fix afterwards.
• ✅ Particularly useful where one master controls large areas or several zones, which is the normal shape of a commercial strip installation.

⛔ Its datasheet gives one specification line

Its sibling the CHAM-DIM-DALI-5C records a housing size, an input voltage, a standby consumption, a display and an addressing method. This sheet gives the output capacity and the driver requirement, and stops.

• ⚠ The voltage one is worth pressing on. Our record narrows the sheet’s 12–24 V range down to 24 V alone. If you are running a 12 V system, ask us to confirm before ordering — the sheet says it should work and the record implies otherwise.
• ⭐ Tell us the zone layout and total load and we will work out how many repeaters the job needs. That is the number nobody has published, and it is the one that decides the parts list.

Specifying what is recorded

• 5 channels — single colour, tuneable white, RGB, RGBW or RGB+TW, matching the master.
• Output 5 × (60–180) W depending on supply voltage.
• ⛔ A constant-voltage 12–24 V DC LED driver is required and not included — the repeater supplies signal, not power.
• ⭐ Each repeated section needs its own driver sized to that section’s load, which is the practical consequence of the above and the thing most often missed in a parts list.

⛔ Two record entries that do not describe a repeater

• ⛔ “Built-in LED” as the bulb type, on a signal repeater with no LED in it — the eleventh product found carrying a lamp type on hardware with no lamp.
• ⛔ “Colour temperature: RGB”. RGB is not a colour temperature. 22 products in this catalogue carry that value, including two cable connectors.

Where it works

• Long strip runs that exceed one controller’s load limit.
• Multi-zone commercial installations driven from a single master.
• Colour-changing coves and feature lines that must stay matched across sections.
• ⚠ Not on its own — it needs a master controller and its own driver.
• ⚠ Not for a 12 V system without confirming with us, given the record and sheet disagree.

Specifying it

5-channel signal data repeater for 12–24 V DC constant-voltage LED. Duplicates a master controller’s signal at full strength without colour drift, across single colour, RGB, RGBW and RGB+TW. Output 5 × (60–180) W depending on supply voltage. ⛔ A constant-voltage 12–24 V DC LED driver is required and not included, and each repeated section needs its own. ⛔ No housing size, operating temperature or IP rating is recorded, and no source states how many repeaters one master supports — ask us with the zone layout and total load. ⚠ Our record says 24 V where the datasheet says 12–24 V; confirm with us for a 12 V system. ⛔ Warranty not recorded.

Supplied and supported by Lights For You.
