Domus Lighting
SKU: 27057

Cell-W90 - Wall Washer 90Mm Cut-Out Frame To Suit Cell Downlight Module Series

3 Years Warranty
3 Years Warranty
L4Y Best Choice
L4Y Best Choice
Color: BLACK
$22.00
$29.57
$22.00
Product Description
Product Description
x

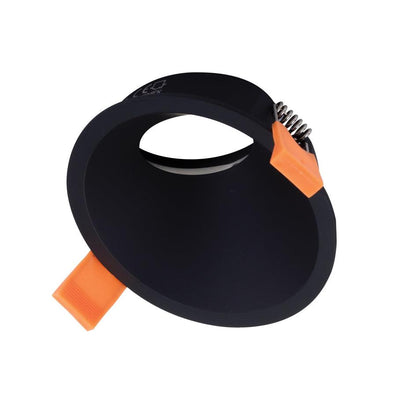

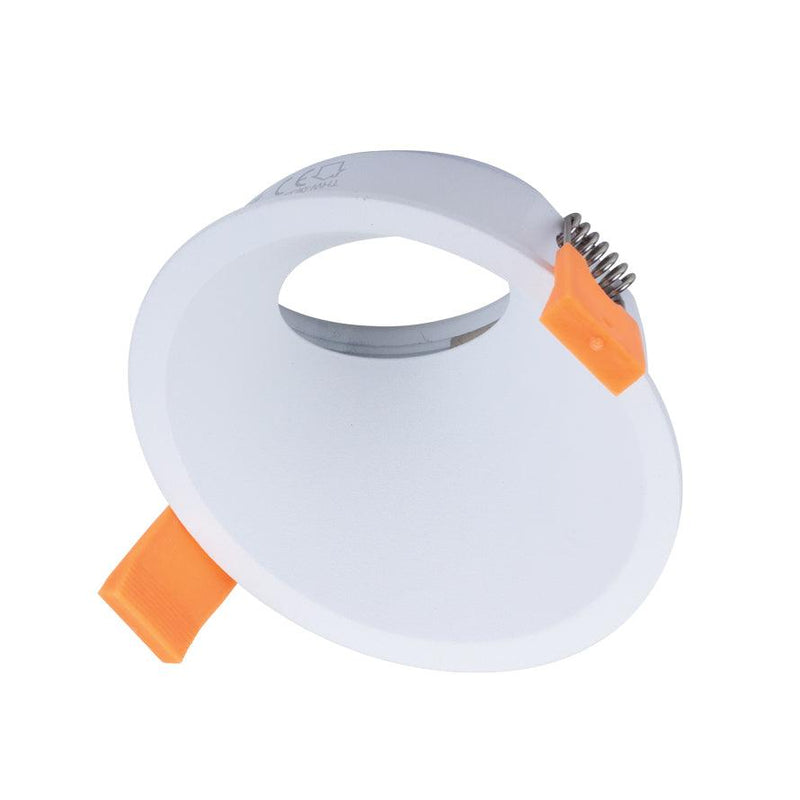

The Domus CELL-W90 is a wall washer frame for the CELL downlight module series, 110 × 110 × 70 mm, in black or white. Cutout Ø88 mm.

⚠ The cutout is Ø88 mm, not 90. Two millimetres, but worth stating: this range has form on names not matching apertures — the CELL-T90 frame takes Ø80 mm despite its name.

✅ In practice Ø88 mm is close enough to the standard 90 mm hole that a retrofit is plausible, since apertures are usually quoted as a range and a trim covers a small overcut. ⛔ But we are not going to assume it. Tell us the hole you have and we will confirm with Domus in writing before you commit to a ceiling full of them.

⚠ And the datasheet attached to this listing is not its own — it is the CELL-9 module's sheet, whose parts list contains module codes rather than this frame, and whose cutout line describes a rectangular SLOTCELL. So the Ø88 mm comes from the product record alone.

What a wall washer frame does
  • A wall washer throws light forward and down onto a vertical surface, from a recessed fitting set back from the wall — rather than straight down like an ordinary downlight.
  • ✅ The effect is an even sheet of light on the wall, top to bottom, without the scalloped arcs a row of ordinary downlights produces.
  • ✅ It is what makes a gallery wall, a feature stone wall or a long corridor read as a lit plane rather than as a series of bright patches.
  • ⚠ The set-back distance matters. Too close to the wall and you get a hot band at the top; too far and the wash weakens. Tell us the ceiling height and we will suggest a distance.
  • ⚠ And it is directional, so it has to be installed facing the right way. We will confirm that with the order.
Wall washer or tilt?
  • A wall washer is optimised for an even vertical wash from a fixed geometry. ✅ Right for a continuous run along a wall.
  • A tilt frame (DT90 or T90) aims a beam wherever you point it. ✅ Right for picking out specific objects, and adjustable after the room is furnished.
  • ✅ For a gallery wall, a washer run gives a more even result; for individual artworks, tilt heads give control.
  • ⚠ They are not interchangeable in a run — mixing them along one wall will show, because the light distributions differ.
What a frame is and is not
  • ⛔ A frame is not a light. The CELL module and its driver are separate — CELL-9 (9 W) or CELL-13 (13 W), in Trio or DALI.
  • ✅ The module carries the beam angle. ⚠ On a wall washer the beam choice interacts with the optic in a way it does not on a plain frame — ask us which module Domus intends for this frame rather than choosing on the beam figure alone.
  • ✅ And the five colour temperatures, including 2700 K.
  • ⚠ Set every module in a washer run to the same colour. A colour difference is far more visible on a lit wall than on a floor, because you see both pools at once.
Depth and clearance
  • 70 mm deep, which puts it with the deep frames (D75, D90, DT90) rather than the shallow S-series.
  • ⚠ Plus the module above: 56 mm for Trio, 68 mm for DALI.
  • 110 × 110 mm body — it needs that much clear between joists or battens, and near a wall that is exactly where a top plate or a bulkhead tends to be. Check the framing, not just the void.
Where it works
  • ✅ Gallery walls, feature stone or timber walls, long corridors.
  • ✅ Where a wall should read as a lit plane rather than a row of arcs.
  • ✅ Retail and hospitality, where vertical surfaces carry the room.
  • ⛔ Not a light — the module and driver are separate.
  • ⛔ Not interchangeable with tilt frames along one run.
  • ⚠ Confirm the cutout and the intended module with us before ordering.
Specifying it

Wall washer frame for the Domus CELL downlight module series. Cutout Ø88 mm. Body 110 × 110 × 70 mm. Black or white.

⚠ The Ø88 mm comes from the product record alone — the datasheet attached to this listing is the CELL-9 module's, not this frame's. We will confirm the aperture with Domus in writing before you cut, particularly if you are retrofitting into existing Ø90 mm holes.

⛔ The CELL module and its driver are sold separately, and ⚠ on a wall washer the beam choice interacts with the optic — ask us which module Domus intends for this frame. ⚠ Allow for the module above: Trio 56 mm, DALI 68 mm. ⚠ Directional — it must face the right way. Warranty 3 years.

Supplied and supported by Lights For You.

Questions
Will it fit a standard 90 mm hole?

Probably, but ask us before you commit to a ceiling full of them. The record says Ø88 mm, which is close enough to the standard 90 mm that a retrofit is plausible — apertures are usually quoted as a range and a trim covers a small overcut. We are not assuming it though, because this range has form on names not matching apertures: the CELL-T90 frame takes Ø80 mm despite its name.

Where does the Ø88 mm figure come from?

The product record alone. The datasheet attached to this listing is the CELL-9 module's — its parts list contains module codes rather than this frame, and its cutout line describes a rectangular SLOTCELL frame. So there is no second source to corroborate it, which is why we will confirm with Domus in writing.

What does a wall washer do that a downlight does not?

It throws light forward and down onto a vertical surface from a fitting set back from the wall, rather than straight down. The result is an even sheet of light on the wall, top to bottom, without the scalloped arcs a row of ordinary downlights produces. That is what makes a gallery wall, a feature stone wall or a long corridor read as a lit plane rather than a series of bright patches.

How far from the wall should it go?

Tell us the ceiling height and we will suggest a distance. The set-back matters more than people expect: too close and you get a hot band at the top of the wall, too far and the wash weakens and starts to read as ordinary downlighting. It is also directional, so it has to be installed facing the right way — we will confirm that with the order.

Should I use wall washers or tilt frames?

Washers for a continuous even wash along a wall; tilt frames for picking out specific objects, with the advantage that you can adjust the aim after the room is furnished. For a gallery wall a washer run gives a more even result; for individual artworks tilt heads give control. Do not mix them along one wall — the light distributions differ and it will show.

Which module goes in it?

Ask us. On a wall washer the beam choice interacts with the frame's optic in a way it does not on a plain frame, so choosing on the beam figure alone is not reliable. We will confirm which module Domus intends for this frame rather than have you order a 60° wash that the optic was not designed around.

How much depth and clearance does it need?

70 mm for the frame, which puts it with the deep frames rather than the shallow S-series, plus the module above — 56 mm for Trio or 68 mm for DALI. The body is 110 × 110 mm, and near a wall that is exactly where a top plate or bulkhead tends to be, so check the framing and not just the void.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKUsCELL-W90 — 27057 (Black) · 27056 (White)
TypeWall washer frame for the CELL downlight module series — ⛔ not a light
Cutout⚠ Ø88mm — from the product record alone; not 90mm. Confirm with us
Body110 × 110mm — ⚠ check the framing near a wall, not just the void
Depth70mm — ⚠ plus the module above (Trio 56mm, DALI 68mm)
Datasheet⛔ The attached sheet is the CELL-9 MODULE's, not this frame's
EffectEven vertical wash — a lit plane rather than scalloped arcs
Orientation⚠ Directional — it must face the right way
Module⛔ Sold separately — ⚠ ask us which module Domus intends for this optic
Versus tilt frames⛔ Not interchangeable along one run — the distributions differ
FinishesBlack · White — match to the module
Warranty3 Years

Variant specifications

The jobFrameWhy
An even wash down a whole wall✅ CELL-W90 (this)A lit plane, no scallops
Picking out individual artworksCELL-DT90 or T90Aim adjustable after furnishing
General ceiling lightingCELL-S1, D75 or D90Straight down
