Domus Lighting Lighting Accessories Cell-S2 - 2 Light Slotter Frame To Suit Cell Downlight Module Series
Domus Lighting Lighting Accessories Cell-S2 - 2 Light Slotter Frame To Suit Cell Downlight Module Series Lights-For-You 27061 9330772270617
Domus Lighting Lighting Accessories Cell-S2 - 2 Light Slotter Frame To Suit Cell Downlight Module Series
Domus Lighting Lighting Accessories Cell-S2 - 2 Light Slotter Frame To Suit Cell Downlight Module Series Lights-For-You 27061 9330772270617
Loading... + Add to wishlist - Remove from wishlist
Domus Lighting
SKU: 27061

Cell-S2 - 2 Light Slotter Frame To Suit Cell Downlight Module Series

3 Years Warranty
3 Years Warranty
Color: BLACK
$51.00
$68.72
$51.00
Product Description
Product Description
x

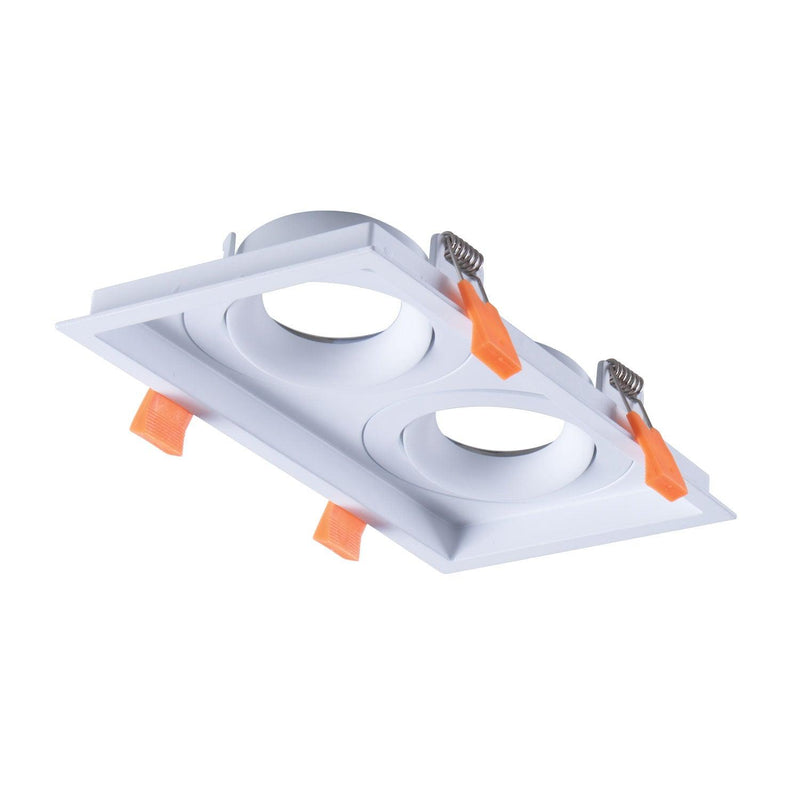

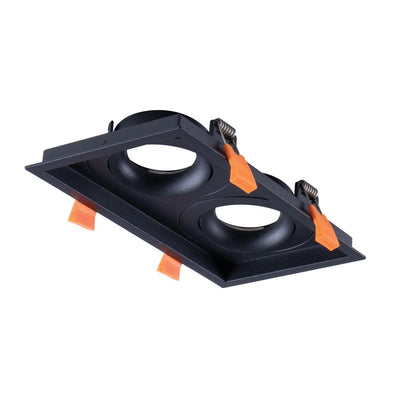

The Domus CELL-S2 is a two-light slotter frame for the CELL downlight module series, 190 × 100 × 50 mm, in black or white.

⛔ The modules are sold separately. This is the frame only.

CELL is a two-part system: a frame that goes into the ceiling, and modules that clip into it. That is what lets one aperture take a fixed downlight, a tiltable one, or a different wattage — and lets you change your mind later without touching the ceiling.

Cutout depends on which module you use:

Module Cutout per aperture
Standard CELL modules Ø70–75 mm
CELL-K75 and CELL-P75 Ø85 mm

⚠ Those figures are on the datasheet and in no product field, so they will not appear in a specification pulled from our record. Tell us which modules you are using and we will confirm the cutout before anyone marks a ceiling.

Why a two-light frame rather than two downlights
  • ✅ Two apertures in one trim, aligned and evenly spaced by the frame itself. Setting out two separate downlights 90 mm apart and getting them level and parallel is fiddly; a frame does it for you.
  • ✅ It reads as a deliberate detail rather than two holes — particularly in a bulkhead, above a bench, or in a hallway where a pair is repeated.
  • ✅ You can mix modules within one frame — one fixed and one tiltable, for instance, to wash a wall and light the floor from a single point.
  • ⚠ Both modules share one aperture line, so they cannot be aimed at wildly different targets. For that, two separate fittings are the answer.
Planning the installation
  • The frame is 190 × 100 mm and 50 mm deep — shallow enough for most voids, but check clearance above, and check the framing: a 190 mm-long frame needs to sit between joists or battens.
  • Cut both apertures to the module's figure, not to the frame outline.
  • ⚠ Decide on the modules first. The Ø70–75 mm and Ø85 mm options are not interchangeable once the ceiling is cut, and the K75 and P75 are the ones that need the larger hole.
What you need to order
  • This frame, in black or white.
  • Two CELL modules, in a matching finish.
  • ⚠ Check whether the modules include their driver — ask us, and we will confirm with the quote.
  • ✅ Tell us the room and how many pairs and we will list the whole set, so nothing turns up missing on the day.
Choosing the finish

Black recedes into an aperture and reduces the apparent glare of the module behind it. White disappears into a white ceiling.

✅ Match the frame and the modules — a white frame with black modules is a deliberate look, but only if it is deliberate.

Where it works
  • ✅ Bulkheads, benches and hallways where a pair of apertures is repeated.
  • ✅ Where two lights need to be aligned and evenly spaced without careful setting out.
  • ✅ Where you may want to change the module type later without touching the ceiling.
  • ⛔ Not a light — the CELL modules are sold separately.
  • ⛔ Not for aiming two lights at very different targets.
  • ⚠ Confirm the cutout with us before the ceiling is marked.
Specifying it

Two-light slotter frame for the Domus CELL downlight module series. 190 × 100 × 50 mm. Black or white.

Cutout Ø70–75 mm per aperture for standard CELL modules, or Ø85 mm for the CELL-K75 and CELL-P75 — ⚠ those figures are on the datasheet and in no product field. ⛔ CELL modules are sold separately. Warranty 3 years. Tell us which modules you are using and we will confirm the cutout and list the full set before anyone marks a ceiling.

Supplied and supported by Lights For You.

Questions
Does it come with the lights?

No — this is the frame only, and the CELL modules are sold separately. CELL is a two-part system: a frame that goes into the ceiling and modules that clip into it. That is what lets one aperture take a fixed downlight, a tiltable one, or a different wattage, and lets you change your mind later without touching the ceiling.

What size holes does it need?

It depends on the module. Standard CELL modules take Ø70–75 mm per aperture; the CELL-K75 and CELL-P75 take Ø85 mm. Those figures are on the datasheet and in no product field, so they will not appear in a specification pulled from our record. Decide on the modules first — the two options are not interchangeable once the ceiling is cut.

Why use a two-light frame instead of two separate downlights?

Alignment. Setting out two downlights close together and getting them level, parallel and evenly spaced is fiddly, and any error is visible forever. A frame does it for you, and it reads as a deliberate detail rather than two holes — particularly in a bulkhead, above a bench, or in a hallway where the pair is repeated.

Can I mix module types in one frame?

Yes, and it is one of the better reasons to use CELL — one fixed module and one tiltable, for instance, to wash a wall and light the floor from a single point. What you cannot do is aim them at wildly different targets, because both share one aperture line. For that you want two separate fittings.

Will it fit my ceiling void?

It is 50 mm deep, which suits most voids, but check two things: the clearance above, and the framing. The frame is 190 mm long, so it needs to sit between joists or battens rather than across one.

Do the modules include a driver?

Ask us and we will confirm with the quote. It varies across the CELL module range and it is exactly the kind of thing that holds up an installation if it is assumed rather than checked.

Should the frame and modules match in colour?

Usually. Black recedes into the aperture and reduces the apparent glare of the module behind it; white disappears into a white ceiling. A white frame with black modules is a deliberate look — but only if it is deliberate, so tell us what you are after and we will quote the set in matching finishes.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKUsCELL-S2 — 27061 (Black) · 27060 (White)
TypeTwo-light slotter frame for the CELL downlight module series
Frame dimensions190 × 100 × 50mm
Cutout — standard CELL modulesØ70–75mm per aperture — ⚠ datasheet only
Cutout — CELL-K75 / P75Ø85mm per aperture — ⚠ datasheet only
Modules included⛔ No — sold separately
Driver⚠ Varies by module — ask us to confirm with the quote
Mixing module types✅ Supported within one frame
Aiming⚠ Both modules share one aperture line
FinishesBlack · White
Warranty3 Years

Variant specifications

Module choiceCutout per apertureDecide it
Standard CELL modulesØ70–75mmBefore the ceiling is marked
CELL-K75 or CELL-P75Ø85mmBefore the ceiling is marked
Not yet decided⛔ Do not cutTell us and we will confirm
