Domus Lighting
SKU: 27065

Cell-K75 - Keyhole 75Mm Cut-Out Frame To Suit Cell Downlight Module Series

3 Years Warranty
3 Years Warranty
L4Y Best Choice
L4Y Best Choice
Color: BLACK
$27.95
$37.67
$27.95
Product Description
Product Description
x

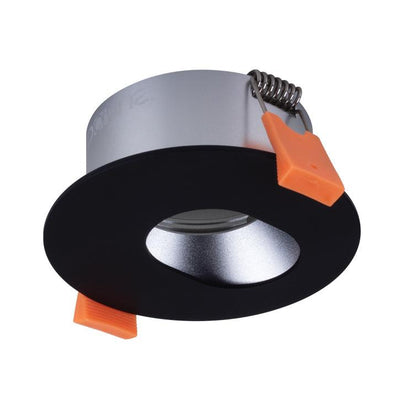

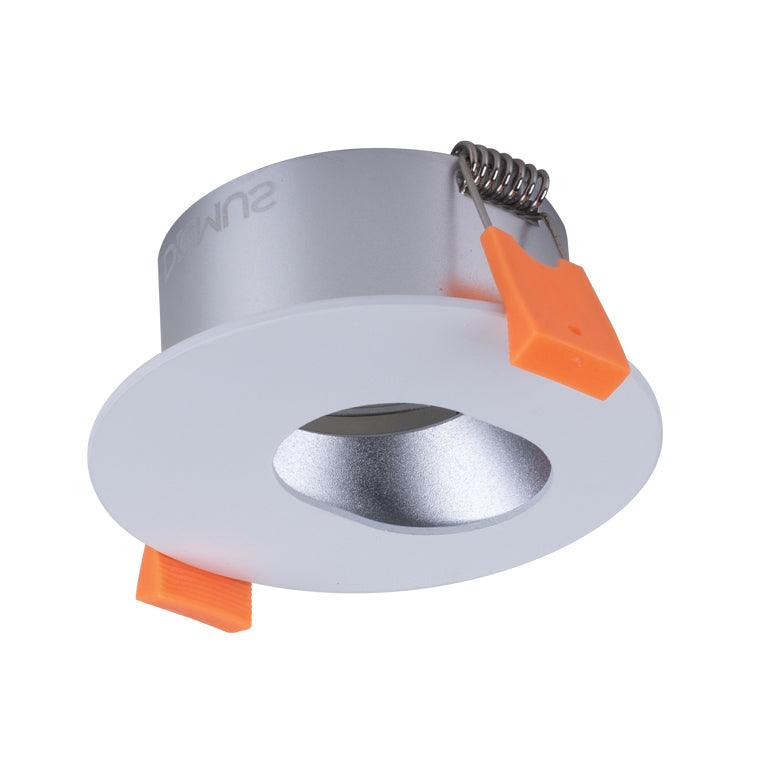

The Domus CELL-K75 is a keyhole frame for the CELL downlight module series, 95 × 95 × 50 mm, in black or white.

⚠ Tell us the effect you want, because our records cannot tell the keyhole and pinhole frames apart.

The CELL-P75 pinhole frame records identical figures — Ø70 mm cutout, 95 × 95 × 50 mm body, the same warranty, the same datasheet. The only difference in our catalogue is the word in the title.

In general use: a keyhole aperture is shaped or offset, throwing light in a direction rather than straight down; a pinhole is a small round aperture giving a concealed downward beam.

⚠ We are describing the convention, not asserting it for these two parts, because no source we hold does. Tell us whether you want directional light or a concealed downlight and we will confirm which frame delivers it before you order.

⚠ And the cutout has its own disagreement
Source Cutout
Product record Ø70 mm
Shared frame datasheet ⚠ "CELL-K75 & P75 Ø85 mm"

The datasheet names this frame specifically against Ø85 mm, and it is not clear whether that is a larger required aperture or the fascia. We have published Ø70 mm and will confirm with Domus in writing before you cut — cutting to 70 and needing 85 is an easy fix; the reverse is a patching job.

What a shaped aperture is for
  • ✅ Directional light from a fitting that stays concealed. A shaped aperture throws light to one side while keeping the lamp itself out of view — useful for grazing a wall from close to it, or lighting a stair from above without a visible source.
  • ✅ Glare control from the occupied side. The aperture shields the lamp from the direction people approach from, which a plain round hole cannot do.
  • ⛔ It costs output, as any restricted aperture does. ⚠ No source records how much. Ask us before counting fittings.
  • ⚠ Orientation matters on a shaped aperture in a way it does not on a round one. If the frame is directional, it has to be installed the right way round. We will confirm that with the order.
What a frame is and is not
  • ⛔ A frame is not a light. The CELL module and its driver are separate — CELL-9 (9 W) or CELL-13 (13 W), in Trio or DALI.
  • ✅ The module carries the beam angle — 15°, 24°, 36° or 60°. ⭐ On a restricted aperture a narrow module makes sense: a 60° wash mostly hits the inside of the frame.
  • ✅ And the five colour temperatures, including 2700 K.
  • ⚠ Allow for the module above: 50 mm of frame plus 56 mm (Trio) or 68 mm (DALI).
Choosing the finish

✅ Black is the usual choice on a restricted aperture — a dark interior stops it reading as a bright spot when the light is off. White disappears into a white ceiling but shows the aperture more.

Where it works
  • ✅ Grazing a wall from close to it, without a visible source.
  • ✅ Lighting a stair or a corridor directionally from above.
  • ✅ Where glare must be controlled from one particular direction.
  • ✅ Shallow voids — 50 mm frame depth.
  • ⛔ Not an efficient way to light a room — a restricted aperture costs output.
  • ⚠ Confirm with us which of the keyhole and pinhole frames gives the effect you want.
Specifying it

Keyhole frame for the Domus CELL downlight module series. Body 95 × 95 × 50 mm. Black or white.

⚠ Cutout: our record says Ø70 mm; the shared frame datasheet names the K75 and P75 against Ø85 mm. Published as Ø70 mm; we will confirm with Domus in writing before you cut.

⚠ Its record is identical to the CELL-P75 pinhole frame in every field, and no source states what the two apertures do differently. Tell us whether you want directional light or a concealed downlight and we will confirm which frame to order. ⛔ The CELL module and its driver are sold separately — ⭐ a narrow module (15° or 24°) suits a restricted aperture. ⚠ Allow for the module above: Trio 56 mm, DALI 68 mm. Warranty 3 years.

Supplied and supported by Lights For You.

Questions
What is the difference between the keyhole and the pinhole frame?

Our records cannot tell you, and that is worth being straight about: the CELL-P75 pinhole frame records identical figures — Ø70 mm cutout, 95 × 95 × 50 mm body, same warranty, same datasheet. The only difference in our catalogue is the word in the title. In general use, a keyhole aperture is shaped or offset to throw light directionally while a pinhole is a small round aperture giving a concealed downward beam. Tell us the effect you want and we will confirm which frame delivers it.

What size hole does it need?

Ask us before cutting, because our sources disagree. The record says Ø70 mm; the shared frame datasheet names this frame and the P75 against Ø85 mm, and it is not clear whether that is a larger aperture or the fascia. We have published Ø70 mm and will confirm in writing. Cutting to 70 and needing 85 is an easy fix; the reverse is a patching job.

Does the frame need to be installed a particular way round?

If it is directional, yes — orientation matters on a shaped aperture in a way it does not on a round one. That is one of the things we will confirm with Domus when you order, along with what the aperture actually does, because no source we hold states either.

How much light does the aperture cost?

Some, and no source records how much. Any restricted aperture blocks output by design — that is the trade for the glare control and the concealment. Ask us and we will get the figure from Domus before you count fittings, because it changes how many you need.

Which module should I put in it?

A narrow one — 15° or 24°. On a restricted aperture a 60° wash mostly hits the inside of the frame rather than getting out of it. The module also carries the five colour temperatures, including a 2700 K setting that almost nothing else in this catalogue offers.

Does it come with a light?

No — a frame is not a light. The CELL module and its driver are a separate purchase: CELL-9 (9 W) or CELL-13 (13 W), in Trio or DALI. Allow for the module above the frame: 50 mm of frame plus 56 mm for Trio or 68 mm for DALI.

Should I choose black or white?

Black is the usual choice on a restricted aperture, because a dark interior stops it reading as a bright spot when the light is off — which matters more here than on a plain trim, since the whole point is concealment. White disappears into a white ceiling but shows the aperture more.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKUsCELL-K75 — 27065 (Black) · 27064 (White)
TypeKeyhole frame for the CELL downlight module series — ⛔ not a light
Cutout⚠ Record says Ø70mm; the datasheet names K75 & P75 against Ø85mm. Ask us before cutting
Body95 × 95mm
Depth50mm — ⚠ plus the module above (Trio 56mm, DALI 68mm)
⚠ Versus the CELL-P75Identical recorded figures — nothing distinguishes them but the title
Effect (convention, not stated)Shaped or offset aperture — directional light, lamp concealed
Orientation⚠ Matters on a shaped aperture — we will confirm with the order
Output cost⚠ Not recorded — a restricted aperture blocks light by design
Recommended module⭐ Narrow — 15° or 24°
Module⛔ Sold separately — CELL-9 or CELL-13, Trio or DALI
FinishesBlack (usual) · White
Warranty3 Years

Variant specifications

You wantFrameNote
Directional light, lamp concealed✅ CELL-K75 (this)⚠ Confirm the aperture with us
A concealed point of light straight downCELL-P75Identical record — ask us
General room lightingCELL-S1 or D90A plain round aperture
