Domus Lighting Lighting Accessories Cell-Dt90 - Deep Tilt 90Mm Cut-Out Frame To Suit Cell Downlight Module Series
Domus Lighting Lighting Accessories Cell-Dt90 - Deep Tilt 90Mm Cut-Out Frame To Suit Cell Downlight Module Series Lights-For-You 27078 9330772270785
Domus Lighting Lighting Accessories Cell-Dt90 - Deep Tilt 90Mm Cut-Out Frame To Suit Cell Downlight Module Series
Domus Lighting Lighting Accessories Cell-Dt90 - Deep Tilt 90Mm Cut-Out Frame To Suit Cell Downlight Module Series Lights-For-You 27078 9330772270785
Loading... + Add to wishlist - Remove from wishlist
Domus Lighting
SKU: 27079

Cell-Dt90 - Deep Tilt 90Mm Cut-Out Frame To Suit Cell Downlight Module Series

3 Years Warranty
3 Years Warranty
Color: BLACK
$22.00
$29.57
$22.00
Product Description
Product Description
x

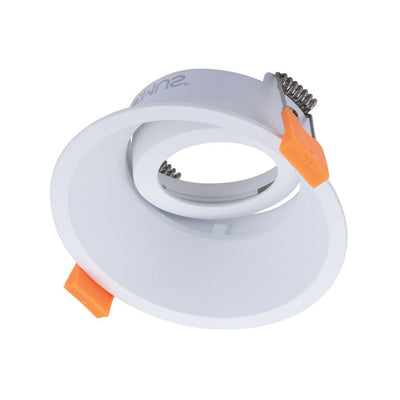

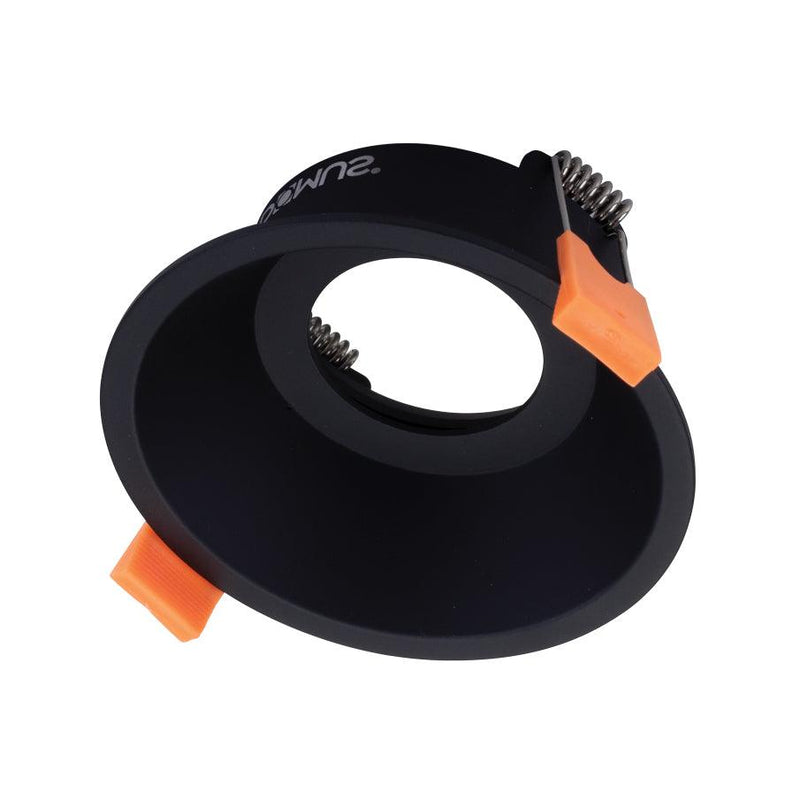

The Domus CELL-DT90 is a deep tilt frame for the CELL downlight module series, 90 × 90 × 70 mm, in black or white. Cutout Ø90 mm.

✅ This is the CELL frame that puts a tilting aperture into an existing Ø90 mm ceiling. Ø90 mm is the common Australian downlight hole, so pull out an old halogen fitting, drop this frame in, and click in a CELL module.

⚠ Do not confuse it with the CELL-T90, which sounds like it does the same job and does not — that frame takes Ø80 mm. Within this range the naming is reliable on the D-series and unreliable on the T90, so it is worth being explicit:

Tilt frame Cutout Depth Use
DT90 (this) ✅ Ø90 mm 70 mm Retrofit into a standard hole
T90 ⛔ Ø80 mm 50 mm New ceiling, shallow void

⚠ One note on sources: the datasheet shared across the CELL frame family gives a cutout of Ø70–75 mm, which is the S-series figure and does not describe this frame. The title and record are the reliable sources here — and that is the reverse of the usual position in this catalogue.

What "deep" gives you
  • 70 mm deep, against 50 mm for the shallow tilt frame.
  • ✅ Depth sets the lamp back from the ceiling line, which reduces glare at a shallow viewing angle — the geometry that makes a flush downlight uncomfortable when you walk towards a run of them.
  • ✅ It also shades the aperture, so the fitting reads as a dark recess when off rather than as a lit-looking hole.
  • ⚠ The trade-off is void depth. 70 mm for the frame, plus the module above it — Trio 56 mm, DALI 68 mm. On a retrofit, check what is above the existing hole before assuming a like-for-like swap.
Tilt, and when you want it
  • ✅ Aim light at something — a wall, a stone or timber feature, artwork — from a recessed fitting rather than a visible track head.
  • ✅ Adjust after the room is furnished, not from a drawing. That is the real advantage, and it is why a few tiltable fittings in an otherwise fixed ceiling usually earn their money.
  • ⛔ Not for a plain general-lighting run. A fixed frame seals better and stays aligned; a row of tilt heads not quite matching is very visible.
  • ✅ The CELL-D90 is the fixed frame at the same aperture, so a mixed run cuts to one hole size and the trims match.
What a frame is and is not
  • ⛔ A frame is not a light. The CELL module and its driver are separate — CELL-9 (9 W) or CELL-13 (13 W), in Trio or DALI.
  • ✅ The module carries the beam angle — 15°, 24°, 36° or 60°. A frame plus a module is the only route to a beam other than 60°.
  • ✅ And the five colour temperatures, including a 2700 K setting rare in this catalogue.
  • ⭐ And the IC-4 rating stated on the module datasheets — ⚠ the frame is part of the assembly, so ask us and we will confirm the pairing in writing.
Choosing the finish

Black recedes into the aperture and reduces the apparent glare of the module behind it; white disappears into a white ceiling. ✅ Match the frame to the module.

Where it works
  • ✅ Retrofit into existing Ø90 mm ceilings, with tilt — the main reason to choose it.
  • ✅ Hallways and corridors, where the depth reduces glare at a shallow angle.
  • ✅ Mixed runs alongside the fixed CELL-D90 at the same aperture.
  • ✅ Where you want a beam angle other than 60°.
  • ⛔ Not a light — the module and driver are separate.
  • ⚠ Check the void above an existing hole: 70 mm plus the module.
Specifying it

Deep tilt frame for the Domus CELL downlight module series. Cutout Ø90 mm. Body 90 × 90 × 70 mm. Black or white. ✅ The common Australian aperture — a straight retrofit with a tilt head.

⛔ The CELL module and its driver are sold separately. ⚠ Allow for the module above the frame: Trio 56 mm, DALI 68 mm. ⚠ Not to be confused with the CELL-T90 frame, which takes Ø80 mm. ⚠ The shared frame datasheet states Ø70–75 mm, the S-series figure, which is not this frame's. Warranty 3 years.

Supplied and supported by Lights For You.

Questions
Will it fit my existing downlight holes?

Very likely — Ø90 mm is the common Australian downlight aperture, which is exactly why this frame exists. Pull out an old halogen fitting, drop this frame into the same hole and click in a CELL module, and you have a tilting aperture where the fitting you took out was fixed and sealed. Check the depth above the hole though: 70 mm for the frame plus the module.

What is the difference between the DT90 and the T90?

The cutout and the depth, and the names do not help. The DT90 takes Ø90 mm and is 70 mm deep — a retrofit into a standard hole. The T90 takes Ø80 mm and is 50 mm deep — a new ceiling, shallow void. If you are working with existing holes, this is the one.

The datasheet says 70–75 mm — which is right?

The Ø90 mm, from the title and the record. The datasheet is shared across the CELL frame family and its cutout line gives the S-series figure, which does not describe this frame. That is the reverse of the usual position in this catalogue, where the datasheet is normally the reliable source, so it is worth saying rather than leaving you to reconcile them.

What does "deep" give me over a shallow frame?

70 mm against 50 mm, which sets the lamp back from the ceiling line and reduces glare at a shallow viewing angle — the geometry that makes a flush downlight uncomfortable when you walk towards a run. It also shades the aperture, so the fitting reads as a dark recess when off rather than a lit-looking hole. The cost is void depth.

Does it come with a light?

No — a frame is not a light. The CELL module and its driver are a separate purchase: CELL-9 or CELL-13, in Trio or DALI. The module carries the beam angle and the five colour temperatures, so a frame plus a module is the only route to a beam other than 60° in this system.

Can I mix it with fixed downlights?

Yes, and that is usually the right approach — fixed for the general light, tilt where something needs aiming. The CELL-D90 is the fixed frame at the same Ø90 mm aperture and the same 70 mm depth, so a mixed run cuts to one hole size and the trims match.

How much depth do I really need?

The frame's 70 mm plus the module above it — 56 mm for a Trio module, 68 mm for DALI. On a retrofit that is the number to check against what is actually above the existing hole, because the hole itself tells you nothing about the void. Tell us the depth available and the module you want and we will do the arithmetic.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKUsCELL-DT90 — 27079 (Black) · 27078 (White)
TypeDeep tilt frame for the CELL downlight module series — ⛔ not a light
Cutout✅ Ø90mm — the common Australian aperture
Body90 × 90mm
Depth70mm — ⚠ plus the module above (Trio 56mm, DALI 68mm)
⚠ Not the T90The CELL-T90 frame takes Ø80mm and is 50mm deep
Fixed equivalent✅ CELL-D90 — same cutout and depth
Module⛔ Sold separately — CELL-9 or CELL-13, 15° / 24° / 36° / 60°, Trio or DALI
IC Rating⭐ The CELL modules state IC-4 — confirm the assembly with us
⚠ Datasheet noteThe shared frame sheet states Ø70–75mm, the S-series figure — not this frame's
FinishesBlack · White — match to the module
Warranty3 Years

Variant specifications

If you needFrameCutoutDepth
Tilt, existing standard hole✅ CELL-DT90 (this)Ø90mm70mm
Tilt, shallow voidCELL-T90Ø80mm50mm
Fixed, same hole and depthCELL-D90Ø90mm70mm
