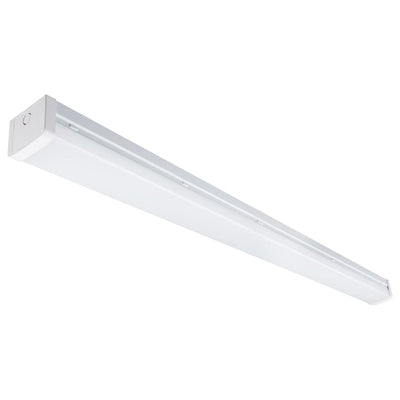

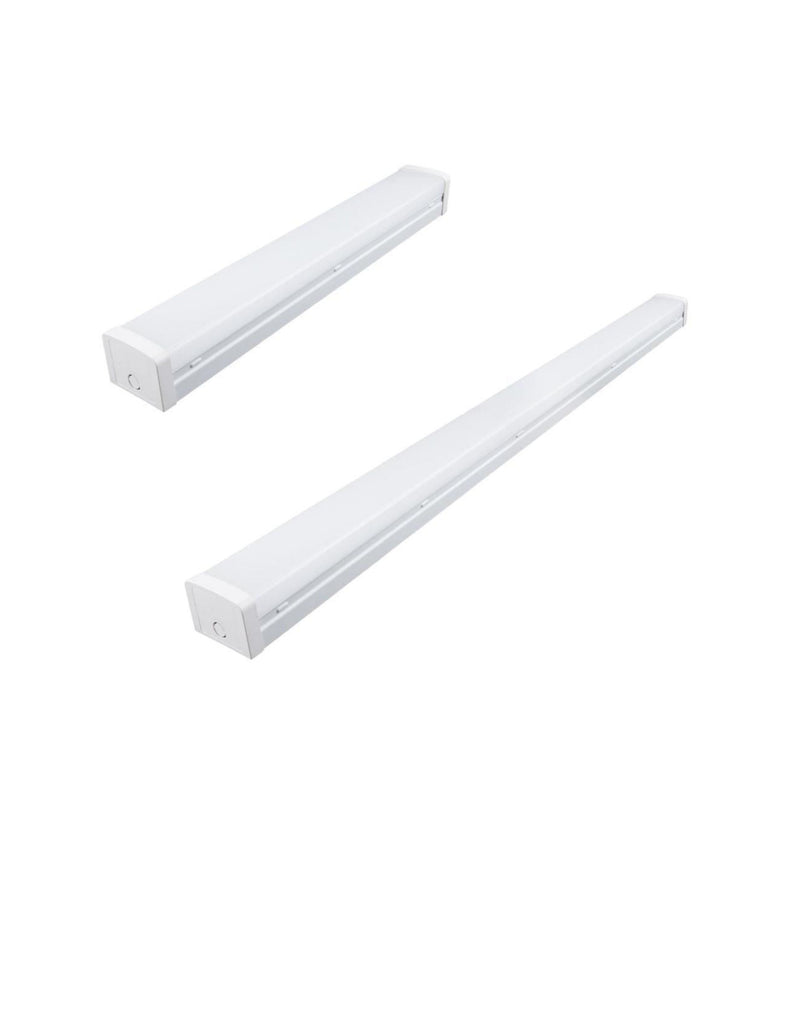

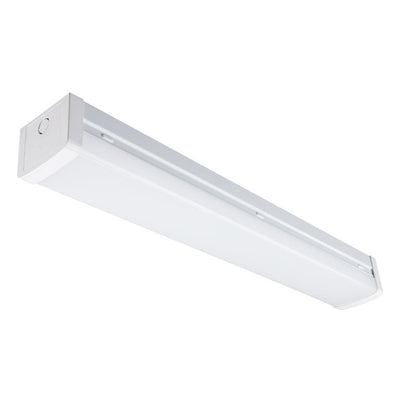

Domus Lighting LED Battens BOLT LED Batten 21/42W & 10/21W IP44
Domus Lighting LED Battens BOLT LED Batten 21/42W & 10/21W IP44 Lights-For-You 66000 9330772660005
Domus Lighting LED Battens BOLT LED Batten 21/42W & 10/21W IP44 Lights-For-You 66003 9330772660036
Domus Lighting LED Battens BOLT LED Batten 21/42W & 10/21W IP44
Domus Lighting LED Battens BOLT LED Batten 21/42W & 10/21W IP44 Lights-For-You 66000 9330772660005
Domus Lighting LED Battens BOLT LED Batten 21/42W & 10/21W IP44 Lights-For-You 66003 9330772660036
Loading... + Add to wishlist - Remove from wishlist
Domus Lighting
SKU: 66000

BOLT LED Batten 21/42W & 10/21W IP44

3 Years Warranty
3 Years Warranty
IP44 – splashproof for bathrooms
IP44 – splashproof for bathrooms
Color: White
$86.95
$114.71
$86.95
Product Description
Product Description
x

The Domus BOLT is a dual-wattage LED batten in 600 mm or 1200 mm, IP44, with switchable 3000 K / 4000 K / 5700 K — a direct replacement for a T8 or T5 fluorescent batten.

✅ The dual-wattage switch is the feature worth understanding. A switch on the LED driver halves the output, and it is set at installation.

Length Wattage options Output at 4000 K
600 mm 10 W or 21 W ⚠ not published — ask us
1200 mm 21 W or 42 W 1,850 lm or 3,800 lm

⚠ Our record shows only 21 W and 42 W — the 1200 mm figures. The 600 mm model's 10 W and 21 W are not recorded, and neither are its lumen outputs. If you are specifying the 600 mm, ask us and we will get the figures from Domus.

✅ Why the switch matters: a garage, a laundry or a store room lit for the worst case is usually too bright for daily use. Fit the batten, look at the room, and halve it if it is uncomfortable — without changing the fitting or the circuit.

Replacing a fluorescent batten
  • ✅ It is a direct replacement for T8 and T5, with a “quick fix” mounting designed for exactly that swap.
  • ✅ 1,850 lm from 21 W on the 1200 mm compares with roughly 2,500 lm from a 36 W T8 tube that has aged — and the LED does not depreciate the way a tube does, does not flicker at end of life, and does not need a starter or ballast.
  • ✅ At 42 W it gives 3,800 lm, which comfortably exceeds a twin-tube fitting.
  • ⛔ It is not dimmable. The dual-wattage switch is set once at installation and is not a control — do not buy a dimmer for it.
⚠ The IP44 has a condition

The datasheet states: “IP44 rating is from the underside of the batten once installed into the ceiling.” Our record shows a bare IP44.

  • ✅ It means protection from the room side — splashing water from below. A laundry, a garage, a covered carport, a bathroom outside the shower zone.
  • ⛔ It does not mean the top of the batten is sealed. Do not treat it as weatherproof in a position where water can reach it from above.
  • ⚠ And it does not apply before installation, which matters on a site where fittings are mounted before the roof is watertight.
The colour switch
  • 3000 K — rarely the right choice on a batten, but useful in a converted space or a covered outdoor area.
  • 4000 K — laundries, garages, store rooms, workshops. The default, and the brightest at both wattages.
  • 5700 K — inspection and detailed work.
  • ⚠ Set it before the batten goes up, and set every fitting in a space the same way.
  • 120° spread, CRI ≥80, 40,000 hours.
Construction and mounting
  • Pressed sheet-metal body, white powder coated, with a high-transparency opal polycarbonate diffuser. ✅ A metal body is a better heatsink than an all-plastic batten and it does not sag over a long span.
  • Surface mounted or suspended.
  • 1200 × 65 × 80 mm per the datasheet — ⚠ our record shows 80 mm for both width and height. If the space is tight, ask us and we will measure one.
Where it works
  • ✅ Garages, laundries, store rooms, workshops and sheds.
  • ✅ Direct replacement for T8 and T5 fluorescent battens.
  • ✅ Covered carports and bathrooms outside the shower zone — IP44 from below.
  • ✅ Spaces where the right brightness is not known until it is installed — the dual-wattage switch.
  • ⛔ Not dimmable.
  • ⛔ Not weatherproof from above, and not exposed.
Specifying it

Dual-wattage LED batten, pressed sheet metal with an opal polycarbonate diffuser, white. 1200 mm: 21 W or 42 W, giving 1,850 lm or 3,800 lm at 4000 K (1,665 / 3,420 lm at 3000 K; 1,850 / 3,800 lm at 5700 K). 600 mm: 10 W or 21 W — ⚠ outputs not published; our record carries only the 1200 mm wattages. Ask us. Wattage selected by a switch on the driver at installation. Switchable 3000 K / 4000 K / 5700 K, 120° spread, CRI ≥80, SMD, 40,000 hrs. ⛔ Not dimmable. 240 V AC. IP44 — from the underside once installed; not sealed from above. Surface mounted or suspended. 1200 × 65 × 80 mm. Warranty 3 years.

Supplied and supported by Lights For You.

Questions
What does "dual wattage" mean?

A switch on the LED driver halves the output, and it is set at installation. The 1200 mm runs at 21 or 42 W; the 600 mm at 10 or 21 W. It is genuinely useful: a garage or store room lit for the worst case is usually too bright for daily use, so you can fit the batten, look at the room, and halve it — without changing the fitting or the circuit.

How bright is the 600 mm version?

Not published, and our record does not even carry its wattages — it shows only the 1200 mm's 21 and 42 W. The 600 mm runs at 10 or 21 W per the product title, and its lumen outputs are not recorded anywhere we can see. Ask us and we will get them from Domus rather than scale the 1200 mm figures.

Will it replace my fluorescent batten?

Yes — it is a direct replacement for T8 and T5, with a "quick fix" mounting designed for that swap. At 21 W the 1200 mm gives 1,850 lumens, which compares well with an aged 36 W T8 tube; at 42 W it gives 3,800, which comfortably exceeds a twin-tube fitting. And there is no starter, no ballast, no flicker at end of life and no depreciation the way a tube has.

Is it dimmable?

No. The dual-wattage switch is set once at installation and is not a control — it does not vary the light in use and it is not operated from a wall plate. Do not buy a dimmer for it. If you need a variable level, the answer is a different fitting or a second circuit.

Can it go in a garage or a laundry?

Yes, and those are exactly the rooms it is for. The datasheet's wording on the rating is worth quoting though: "IP44 rating is from the underside of the batten once installed into the ceiling". So it is protected from the room side against splashing water — a laundry, a garage, a covered carport, a bathroom outside the shower zone — but the top is not sealed, and the rating does not apply before it is installed.

Which colour temperature should I choose?

4000 K for laundries, garages, store rooms and workshops — the default, and the brightest at both wattages. 5700 K for inspection and detailed work. 3000 K is rarely right on a batten but useful in a converted space or a covered outdoor area. Set it before the batten goes up, and set every fitting in a space the same way.

How big is it?

1200 × 65 × 80 mm per the datasheet for the long version. Our record shows 80 mm for both width and height, so the two sources differ on one dimension. If the space is tight — against a beam, in a shallow recess — ask us and we will measure one before it ships.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKUsBOLT LED Batten — 66000 (White, 600mm) · 66003 (White, 1200mm)
TypeDual-wattage LED batten — direct T8 / T5 fluorescent replacement
1200mm wattage21W or 42W, switched on the driver at installation
600mm wattage⚠ 10W or 21W per the title — not recorded in any field
1200mm output1,665 / 3,420lm @3000K · 1,850 / 3,800lm @4000K · 1,850 / 3,800lm @5700K
600mm output⛔ Not published — ask us
Colour Temperature3000K / 4000K / 5700K — switchable
Beam Angle120°
Colour RenderingCRI ≥80
Dimming⛔ Not dimmable — the wattage switch is not a control
IP Rating⚠ IP44 — from the underside once installed; not sealed from above
ConstructionPressed sheet metal, white powder coated, opal polycarbonate diffuser
MountingSurface mounted or suspended
Dimensions1200 × 65 × 80mm (⚠ our record shows 80mm for both width and height)
Voltage220–240V AC
Lifespan40,000hrs
Warranty3 Years

Variant specifications

LengthLow settingHigh settingSuits
600mm10W21WA small laundry, a store room, a stairwell
1200mm21W — 1,850lm42W — 3,800lmA garage, a workshop, a shed
