Product Description

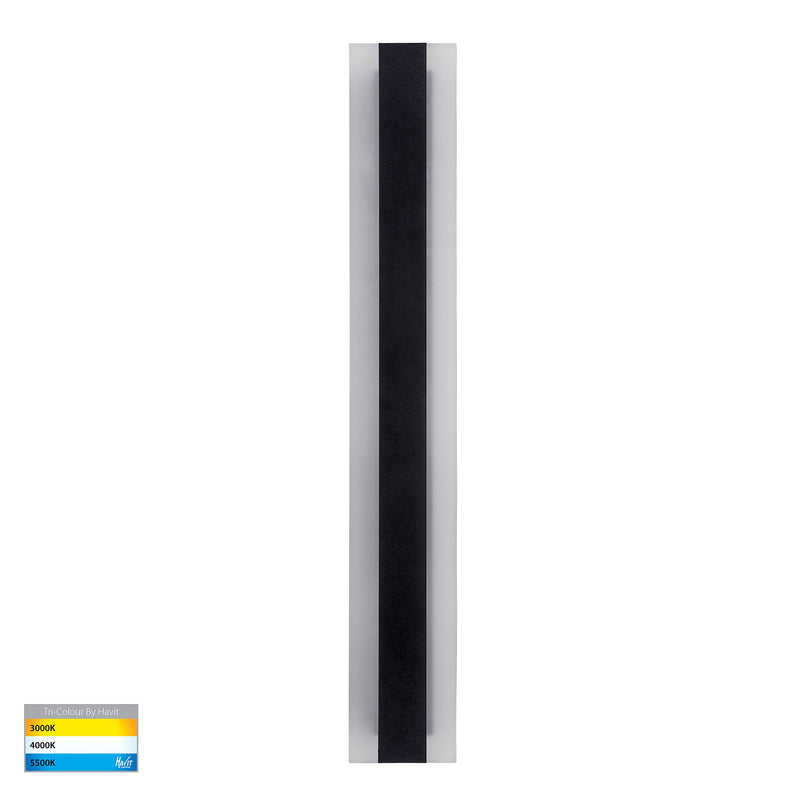

xBarline 600mm low-voltage wall light in black or white
The 600mm Barline draws 9W on 24V and comes in black or white. It is the length most often used in sequence — three or four along a corridor, or a pair flanking an entry — because at 600mm each fitting is substantial enough to read as an element but short enough that repeating it does not overwhelm the wall.
Spacing is what makes or breaks that arrangement. Set too far apart, a row of linear fittings reads as separate lights with dark wall between them; set close, the wash joins into one continuous band. Neither is wrong, but they are different results and it is worth deciding which you want before the outlets are positioned.
A 24V fitting
Both part numbers run on 24V DC. They cannot be wired to 240V mains, and a 24V DC driver is required on the circuit and is not supplied. The fitting is Class 3, so no earth is required at the fitting itself.
Running several from one driver is normal and is part of why this fitting suits sequences — but the driver must be sized for the total load, and it is worth leaving headroom for a fitting added later rather than sizing it exactly to today's run.
Light and colour
The fitting is tri-colour, with 3000K, 4000K or 5500K selected on the fitting at installation. Colour rendering is above 80 CRI and the distribution is 180°, spreading light along the mounting surface rather than forward into the room. It is not dimmable.
Construction, siting and installation
Aluminium body with a Perspex diffuser, rated IP65 for dust and jetted water and IK08 for impact — suitable indoors, in bathrooms, and outdoors on both sheltered and exposed walls.
Because the fitting is surface mounted it must cover its own cable outlet, so set out the full 600mm before the outlet position is fixed. On a sequence, set them all out together and check the spacing on the wall with tape before anything is drilled — the rhythm is much easier to judge full size than on a drawing. Havit states that aluminium and 304 stainless fittings must not be installed within 5km of a salt water environment. The LED is integral, with rated lamp expectancy of >30,000 hrs. Installation is work for a licensed electrician.
Frequently asked questions
How much does it draw?
9W, on 24V DC.
Can several run from one driver?
Yes, provided the driver is sized for the total load of the run.
How far apart should they be?
Close spacing joins the wash into a continuous band; wider spacing reads as separate lights. Mark it out full size before drilling.
Can it be dimmed?
No.
Is it suitable outdoors?
Yes. It is rated IP65 and IK08.
Product Specifications
xSpecifications
| Range | Barline |
|---|---|
| Type | Linear wall light — surface mounted |
| Material | Aluminium with Perspex diffuser |
| Finishes | Black, White |
| Installation type | Wall — surface mounted |
| Lamp base | Built-in LED |
| Power | 9 W |
| Length | 600 mm |
| Colour temperature | Tri colour — 3000K, 4000K, 5500K (selected at installation) |
| Beam angle | 180° |
| CRI | >80 |
| IP rating | IP65 |
| IK rating | IK08 |
| Input voltage | 24 V DC — driver required, not supplied |
| Protection class | Class 3 (no earth required) |
| Dimmable | No |
| Lamp expectancy | >30,000 hrs |
| Siting | Not to be installed within 5 km of a salt water environment |
| Warranty | 3 Years Replacement* |
Variant specifications
| Part number | Finish | Power | Length | Supply | IP rating |
|---|---|---|---|---|---|
| HV3582T-BLK-24V | Black | 9 W | 600 mm | 24 V DC | IP65 |
| HV3582T-WHT-24V | White | 9 W | 600 mm | 24 V DC | IP65 |
