5 Years Warranty
L4Y Best Choice
800 lm
Learn More!!
60°
Beam angle for focused or wide lighting
Dimmable
Find the right driver for this fitting
Product Description

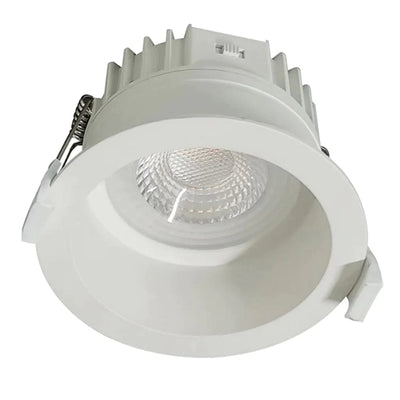

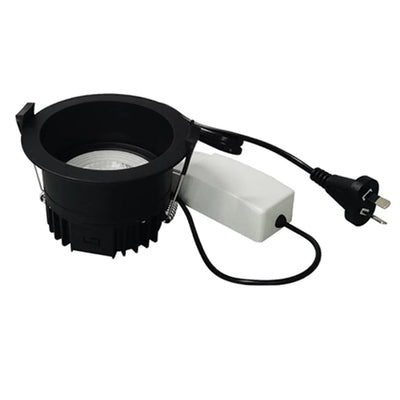

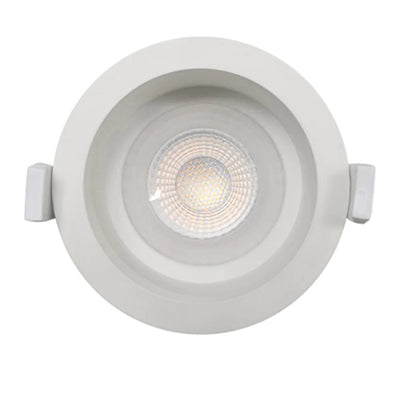

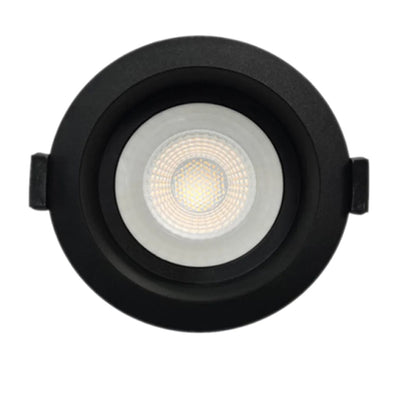

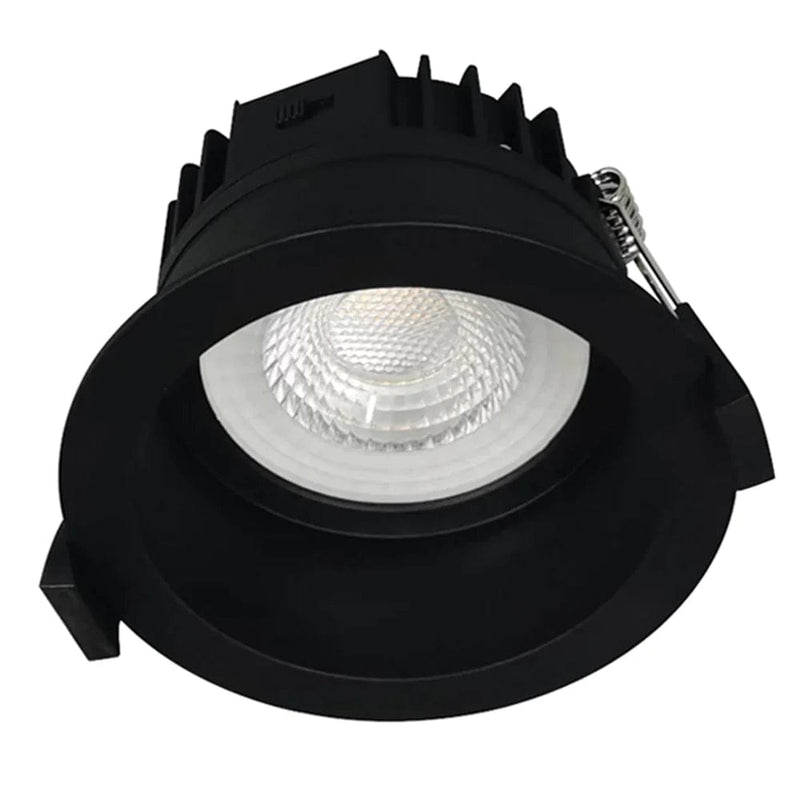

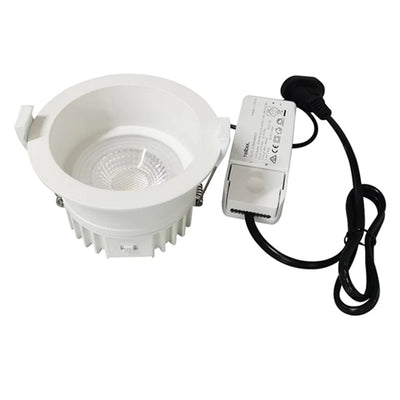

xThe Macro is a 9 W recessed LED downlight for a 90 mm cut-out, with the LED built in. It is a workhorse fitting rather than a decorative one, and two things set it apart from the cheapest downlights: it is dimmable and it is IP44.
Five year warranty — with conditions. This fitting carries a five-year replacement warranty, longer than almost anything else in the Telbix range. It is conditional on proof of purchase AND an electrical installation certificate. Keep both. Downlights are the fittings most often installed without paperwork, and without it the five years is not claimable.
IP44 means it can go where most downlights cannot
An IP44 rating covers splashing from any direction, which is what lets a downlight be used in a bathroom ceiling or under an eave. Your electrician will confirm the zone, but this is the rating that opens those positions up — a standard IP20 downlight cannot go there at all.
Dimmable, on the trailing edge
It is trailing-edge dimmable, so pair it with a trailing-edge (not leading-edge) LED dimmer. Getting that wrong is the usual cause of flicker and buzz on a dimmed LED circuit — worth telling your electrician which type you have.
Three colour temperatures, chosen on site
3000 K, 4000 K or 5000 K is selected at installation on a switch, so one product covers a whole house. 3000 K in living areas and bedrooms, 4000 K in kitchens and bathrooms, 5000 K in garages and workshops.
Specifying it

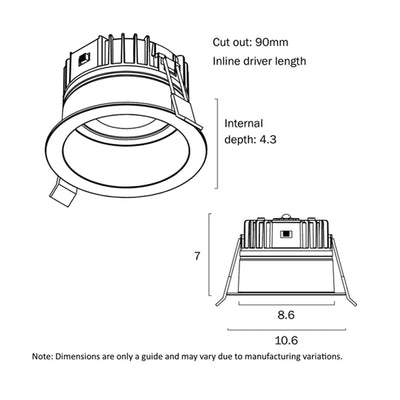

90 mm cut-out, fitting ø105 mm and 70 mm deep — check that depth against your ceiling void. 9 W giving 800 lm on a 60° beam, 240 V, in matt black or white polycarbonate. Rated IP44 and dimmable.
Supplied and supported by Lights For You. Order a spare with a large run — matching a downlight years later is harder than buying one extra now.
Questions
What cut-out does it need?
90 mm, with a fitting ø105 mm and 70 mm deep. Check that depth against your ceiling void.
Is it really a five year warranty?
Yes, but it is conditional on proof of purchase AND an electrical installation certificate. Keep both — without them it is not claimable.
Can it go in a bathroom or under an eave?
Yes. It is IP44, which covers splashing from any direction. Your electrician will confirm the wiring zone.
Is it dimmable?
Yes, trailing edge. Pair it with a trailing-edge LED dimmer — using a leading-edge dimmer is the usual cause of flicker and buzz.
Can I choose the colour temperature?
Yes, at installation: 3000 K, 4000 K or 5000 K on a switch.
How bright is it?
800 lm from 9 W, on a 60° beam.
Is there a globe to replace?
No. The LED is built in.
Product Specifications
xSpecifications
| Brand | Telbix Lighting |
|---|---|
| Model / SKUs | MACRO DL105-BK3C · MACRO DL105-WH3C |
| Type | LED downlight — recessed, dimmable |
| Finishes | Black · White |
| Input Voltage | 240V (220~240V) |
| Wattage | 9W built-in LED |
| Lumen Output | 800lm |
| Colour Temperature | 3 CCT: 3000K / 4000K / 5000K, selected at installation |
| Beam Angle | 60° |
| Dimming | Yes — trailing edge |
| IP Rating | IP44 — splashing water |
| Cut-Out | 90mm |
| Fixture Diameter | ø105mm |
| Depth | 70mm |
| Lamp Base | Built-in LED — not replaceable |
| Material | Polycarbonate |
| Warranty | 5 Years — conditional on proof of purchase AND an electrical installation certificate |
Variant specifications
| Order code | Finish | Cut-out | Wattage | Lumens | Dimming |
|---|---|---|---|---|---|
| MACRO DL105-BK3C | Black | 90mm | 9W | 800lm | Trailing edge |
| MACRO DL105-WH3C | White | 90mm | 9W | 800lm | Trailing edge |
Data Sheet & Manual
