9.6w 24v DC 480LED Blue IP67 CSP LED Strip Havit Commercial - HCP-3965969

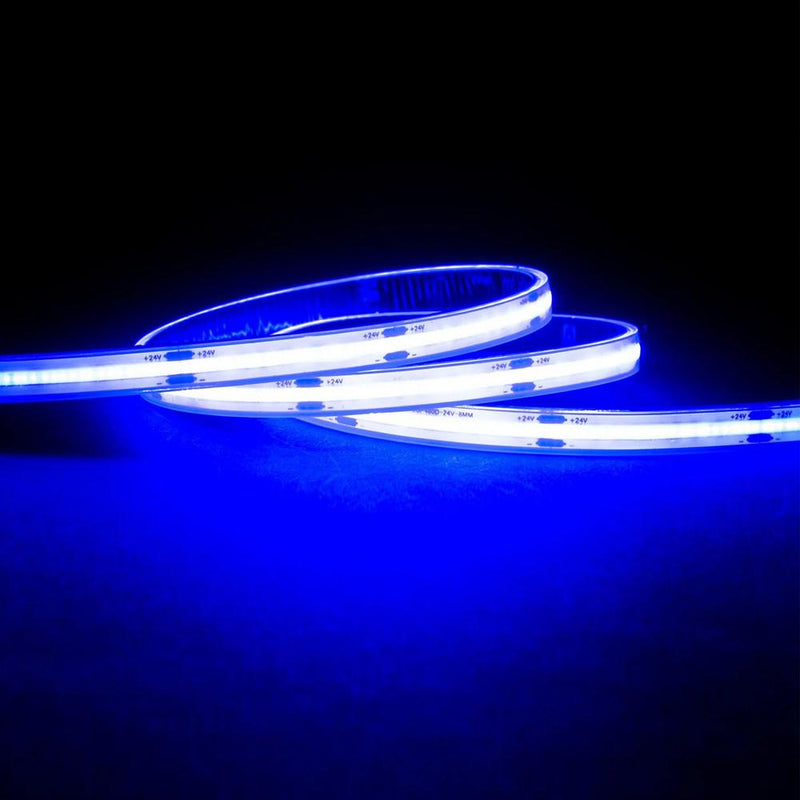

9.6w 24v DC 480LED Blue IP67 CSP LED Strip

LED strip is a flexible circuit board carrying a line of LEDs, supplied on a reel and cut to the length a job needs. It goes where a fitting cannot: under a cabinet, into a cove, along a stair nosing or behind a mirror.

It is also the form most often installed badly, and the difference is almost entirely in what goes around it - the supply, the channel and the diffuser.

Output and colour

Colour rendering is >90 CRI, which describes how faithfully colours appear under the light. It matters most where the lighting falls on food, skin, timber or fabric.

The beam spread is 120°.

Where it can be installed

At IP67 this is rated for wet or exposed positions - outdoors, in bathrooms, or anywhere it will be splashed or rained on.

The rating protects the strip itself. The cut ends and the joints are the vulnerable part of any run, so they have to be sealed properly if the protection is to mean anything in practice.

Powering it

This strip runs at 24V DC, so it needs an LED driver between it and the mains. It cannot be connected to mains directly.

Size the driver from the run rather than the reel: work out the total load of the length you are installing and choose a driver comfortably above it.

⚠ The driver's output voltage has to match the strip. Connecting 24V strip to the wrong supply either leaves it dark or destroys it, and that is not a warranty claim.

Cutting and installing it

Strip is cut to length at the marked cutting points only. Cutting between them severs the circuit and kills everything past the cut, so plan the run to the nearest marked point rather than to the exact millimetre.

Run it in an aluminium profile where you can - the aluminium draws heat away and the diffuser turns the line of separate LEDs into a continuous one.

Test the run before committing it. Adhesive backing does not survive being lifted and re-laid, and a fault found after the diffuser is on means taking the run apart.

Specifying and pricing this

This is part of the Havit Commercial range, which is priced on application rather than listed. Use the enquiry button on this page and we will come back with pricing for the quantity you need.

Commercial strip is usually specified by the metre against a drawing rather than bought off a shelf, so the quantity, the driver sizing and the run layout are worth settling together. Send us the run lengths and we will work back to what the job actually needs.

⚠ Confirm availability before a specification is issued. Commercial ranges change, and a product written into a drawing that is no longer stocked is a change order later, when it is far more expensive to fix.
