503 Gimble Frame Only

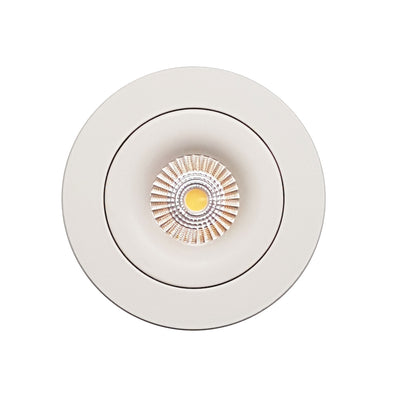

The MDL-503 is an adjustable gimble downlight FRAME in white — 110 mm across, into a 90 mm cutout, for the twist-on module system.

What a gimble is, and why you would want one

A gimble is an adjustable frame: the module sits in a ring that tilts and rotates, so you can aim the light after it is installed rather than accepting wherever the hole happens to point.

That changes what a downlight can do:

• Wall washing. Tilt a row along a wall and you light the surface, not the floor — which makes a room feel larger and shows off stone, timber or a feature paint.
• Artwork and joinery. Aim a single fitting at a picture, a bookcase or a bench and you have accent lighting from a downlight aperture.
• Raked ceilings. This is the important one. On a sloping ceiling, a fixed downlight points at an angle into the room — straight into someone's eyes from the low side. A gimble corrects for the slope, so the light goes vertically down where you want it.
• Correcting a mistake. If a hole ends up 200 mm off where it should have been, a gimble can often aim its way out of the problem. A fixed downlight cannot.

90 mm cutout, 110 mm trim

You cut a 90 mm hole. The 110 mm figure is the visible trim, which is what covers the edge of the cut.

That 20 mm of overlap matters on a retrofit: if you are replacing an older downlight, measure the existing hole. If yours is bigger than 90 mm, the trim may not cover it — send us the measurement and we will tell you before you order.

Why a frame-and-module system at all

Most downlights are one sealed unit: when the LED fails, the whole fitting comes out of the ceiling, and if the replacement has a different cutout you are patching plasterboard.

A frame-and-module separates them:

• The frame stays in the ceiling — it defines the cutout, the trim and the finish, and on this one the aim.
• The module makes the light, and it twists out — for a failure, or for a different beam angle or colour temperature, years later, without touching the plaster.

Ask us to pair it. Tell us the room and what you want the light to do, and we will specify the module against this frame.

Where it works

• Raked and sloping ceilings — the gimble corrects for the slope.
• Wall washing, artwork, joinery and benches — aimed, not fixed.
• New ceilings, where the module can be changed later without patching.
• ⚠ It makes no light. A module is a separate purchase — ask us to pair them.
• ⚠ Ask us before putting it in a bathroom — our sources disagree on its IP rating.

Specifying it

110 mm trim, into a 90 mm cutout, in aluminium, white, with an adjustable gimble. FRAME ONLY — no LED, no globe and no driver are included; an MDL twist-on module is required and sold separately. ⚠ IP rating recorded as IP44 on the datasheet and IP20 in our record — confirm with us before any wet-area use. The datasheet also records IC-4. A licensed electrician installs it. ⚠ Warranty is published as ONE year; the datasheet and the sibling MDL-613 frame both say FIVE. Ask us before you buy.

Supplied and supported by Lights For You.
