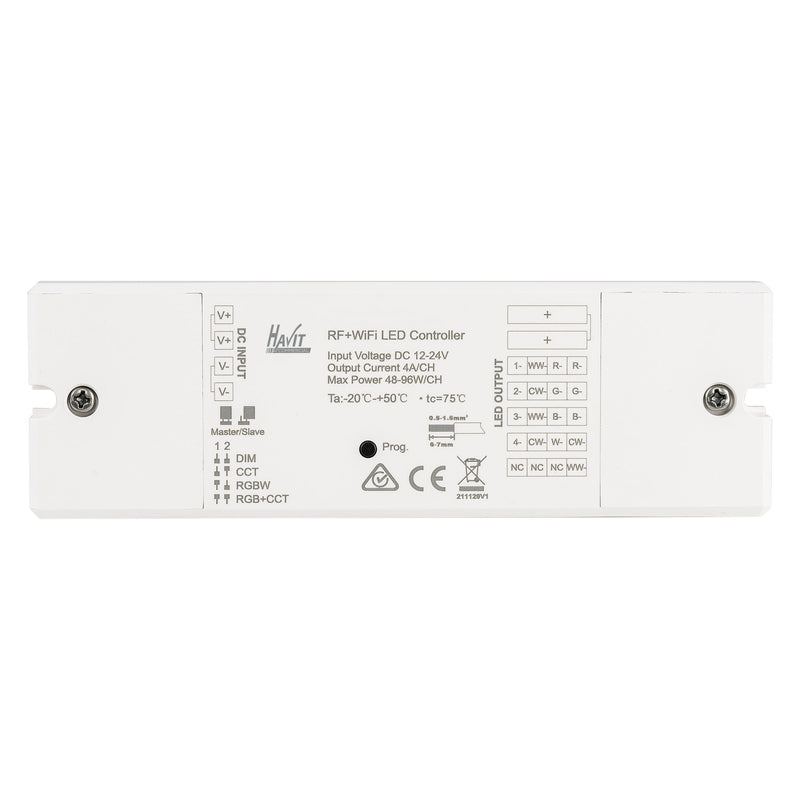

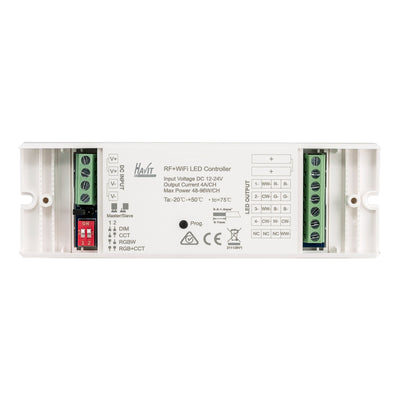

5 Channel WIFI + RF LED Strip Receiver 72mm × 43mm

5 Channel WIFI + RF LED Strip Receiver 72mm × 43mm

This is an in-line controller for low-voltage LED strip. It sits between the driver and the strip: the driver supplies the power, and this decides what the strip does with it.

⚠ It is not a power supply and does not replace one. A strip run needs a driver as well - this unit is the part that gives you control over it.

What it controls

Match this unit to the strip you intend to run. Havit build these controllers for particular channel layouts, and the layout has to agree at both ends - a controller and a strip that disagree will drive the wrong channels or leave some of them dead.

If you are not certain what your strip is, our team at Lights For You can confirm it from the part number before you order.

Control protocol

It works over WiFi and RF.

⚠ Every part of the chain has to speak the same protocol. Mixing systems is the most common reason a control setup does not respond as expected.

Wired or wireless control

Control systems fall into two camps and the choice is worth making deliberately. Wired protocols such as DALI and DMX run a signal cable to each unit: more work at installation, but nothing to pair, no batteries, and behaviour that does not change because a phone or a hub was replaced.

Wireless systems - Zigbee, RF and WiFi - need no signal cable, which makes them the practical option in a finished room where running one would mean opening walls. The trade is that they depend on pairing, and on signal reaching where it needs to.

New build or full renovation usually favours wired, because cable is cheap while the walls are open. Retrofit work usually favours wireless, for the same reason in reverse.

Specification notes

It runs on 12V or 24V DC, supplied by the driver on the run.

⚠ At IP20 this unit has no weather protection. It must be installed in a permanently dry location - indoors, inside a cavity or in a cupboard, never outside or anywhere it could see condensation.

Installation

The control side of a strip run is low voltage, but the driver feeding it still has to be wired to mains by an electrician. Plan where this unit will sit before the strip goes in - it needs to stay accessible, and it should not be sealed into a channel or a plastered cavity.

Keep the run order right: mains to driver, driver to controller, controller to strip. Wiring a controller directly to mains will destroy it.

Specifying and pricing this

This is part of the Havit Commercial range, which is priced on application rather than listed. Use the enquiry button on this page and we will come back with pricing for the quantity you need.

Components like this are ordered against a specific installation, so it is worth confirming the parent product and the quantity together. Send us the part number you are matching and we will confirm what suits it.

⚠ Confirm availability before a specification is issued. Commercial ranges change, and a product written into a drawing that is no longer stocked is a change order later, when it is far more expensive to fix.
