5 Years Warranty
IP67 – waterproof to 1m depth
1327 lm
Learn More!!
120°
Beam angle for focused or wide lighting
Premium Range
Price on enquiry
A hand-selected designer piece from our premium collection. Pricing is provided on enquiry — tap Enquiry Now and our lighting team will get back to you with a quote.
- Fast personal quote
- Expert advice
- Australian showroom
A suggestion, not a specification. A calculator can get it wrong — have a licensed electrician confirm the driver, the total load and the wiring before you order.
Find the right driver for this fitting
Product Description

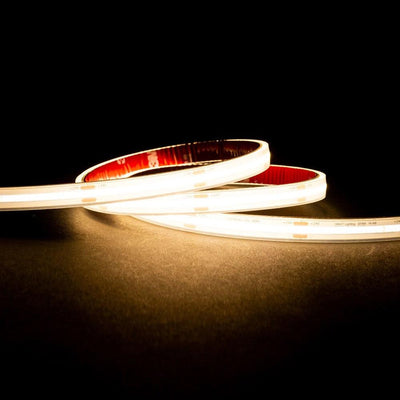

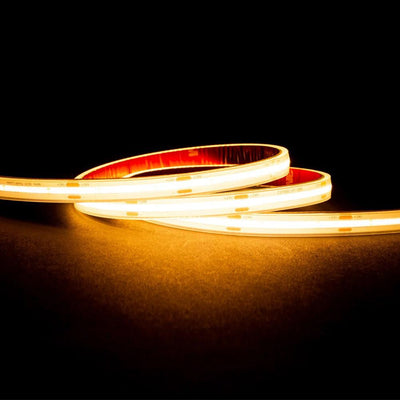

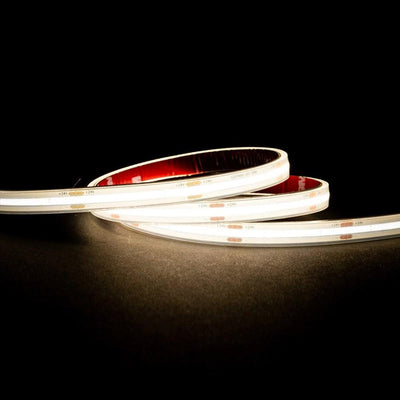

x19.2w 24v DC 480LED 2.7k, 3k, 4k, 5k IP67 CSP LED Strip
LED strip is a flexible circuit board carrying a line of LEDs, supplied on a reel and cut to the length a job needs. It goes where a fitting cannot: under a cabinet, into a cove, along a stair nosing or behind a mirror.
It is also the form most often installed badly, and the difference is almost entirely in what goes around it - the supply, the channel and the diffuser.
Output and colour

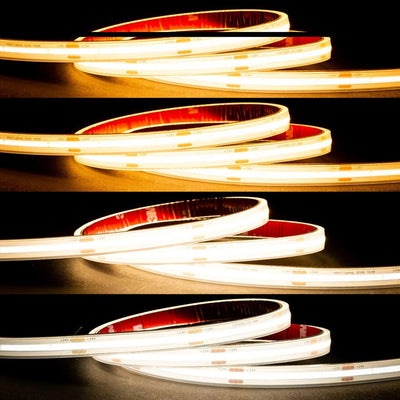

It is a Selectable white product - a colour temperature chosen at installation - 2700K, 3000K, 4000K, 5000K.
Colour rendering is >90 CRI, which describes how faithfully colours appear under the light. It matters most where the lighting falls on food, skin, timber or fabric.
The beam spread is 120°.
Where it can be installed
At IP67 this is rated for wet or exposed positions - outdoors, in bathrooms, or anywhere it will be splashed or rained on.
The rating protects the strip itself. The cut ends and the joints are the vulnerable part of any run, so they have to be sealed properly if the protection is to mean anything in practice.
Powering it
This strip runs at 24V DC, so it needs an LED driver between it and the mains. It cannot be connected to mains directly.
Size the driver from the run rather than the reel: work out the total load of the length you are installing and choose a driver comfortably above it.
⚠ The driver's output voltage has to match the strip. Connecting 24V strip to the wrong supply either leaves it dark or destroys it, and that is not a warranty claim.
Cutting and installing it
The strip can be cut, but only at the marked cutting points - every 50mm. Cutting anywhere else severs the circuit and kills the section beyond the cut.
Run it in an aluminium profile where you can - the aluminium draws heat away and the diffuser turns the line of separate LEDs into a continuous one.
Test the run before committing it. Adhesive backing does not survive being lifted and re-laid, and a fault found after the diffuser is on means taking the run apart.
Specifying and pricing this
This is part of the Havit Commercial range, which is priced on application rather than listed. Use the enquiry button on this page and we will come back with pricing for the quantity you need.
Commercial strip is usually specified by the metre against a drawing rather than bought off a shelf, so the quantity, the driver sizing and the run layout are worth settling together. Send us the run lengths and we will work back to what the job actually needs.
⚠ Confirm availability before a specification is issued. Commercial ranges change, and a product written into a drawing that is no longer stocked is a change order later, when it is far more expensive to fix.
Frequently asked questions
Does it come with a driver?
No. The strip is supplied on its own and needs a 24V DC driver sized to your run.
Can I cut it to length?
Yes, at the marked cutting points - every 50mm. Cutting between them kills the section past the cut.
Can it go outside?
Yes - it is rated IP67. Seal the cut ends and joints properly, as those are the vulnerable points on any run.
Do I need an electrician?
For the mains connection to the driver, yes. That is licensed electrical work in Australia.
Why is there no price shown?
The Havit Commercial range is priced on application. Send an enquiry from this page with the quantity you need and we will come back with pricing.
How do I get pricing?
Send an enquiry from this page with the part number and the quantity. Pricing on this range depends on the job, so it is quoted rather than listed.
What warranty does it carry?
5 Years*
Product Specifications
xSpecifications
| Type | LED strip |
|---|---|
| Colour | Selectable white |
| CRI | >90 |
| Beam angle | 120° |
| Strip voltage | 24V DC |
| IP rating | IP67 - suitable for wet or exposed positions |
| Cutting points | Every 50mm |
| Warranty | 5 Years* |
Variant specifications
| Part number | Colour | Power | Length | IP rating |
|---|---|---|---|---|
| HCP-3965192 | Selectable white | IP67 | ||
| HCP-3965193 | Selectable white | IP67 | ||
| HCP-3965194 | Selectable white | IP67 | ||
| HCP-3965195 | Selectable white | IP67 |
