11w 24v DC 512LED 4000k IP20 COB LED Strip - HCP-3221114
11w 24v DC 512LED 4000k IP20 COB LED Strip - HCP-3221114 (2)
11w 24v DC 512LED 4000k IP20 COB LED Strip - HCP-3221114
11w 24v DC 512LED 4000k IP20 COB LED Strip - HCP-3221114 (2)
IN STOCK + Add to wishlist - Remove from wishlist
Havit Commercial
SKU: HCP-3221114

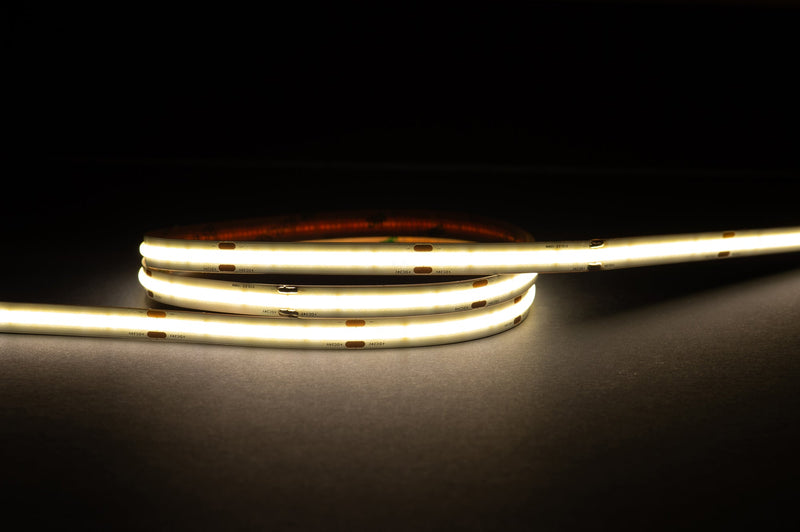

11w 24v DC 512LED 4000k IP20 COB LED Strip

5 Years Warranty
5 Years Warranty
IP20 – perfect for indoor use
IP20 – perfect for indoor use
Premium Range Price on enquiry

A hand-selected designer piece from our premium collection. Pricing is provided on enquiry — tap Enquiry Now and our lighting team will get back to you with a quote.

  • Fast personal quote
  • Expert advice
  • Australian showroom
Product Description
Product Description
x
11w 24v DC 512LED 4000k IP20 COB LED Strip

LED strip is a flexible circuit board carrying a line of LEDs, supplied on a reel and cut to the length a job needs. It goes where a fitting cannot: under a cabinet, into a cove, along a stair nosing or behind a mirror.

It is also the form most often installed badly, and the difference is almost entirely in what goes around it - the supply, the channel and the diffuser.

Output and colour

The beam spread is 123.0 DEG.

Where it can be installed

⚠ At IP20 this has no moisture protection. It is for dry interior positions only - inside joinery, a cove, or a ceiling recess.

Bathrooms, kitchens near a sink, and any outdoor position need a weatherproof rating instead. An IP20 strip in a damp position fails at the circuit board, and it fails patchily rather than all at once.

Powering it

This strip runs at 24V DC, so it needs an LED driver between it and the mains. It cannot be connected to mains directly.

Size the driver from the run rather than the reel: work out the total load of the length you are installing and choose a driver comfortably above it.

⚠ The driver's output voltage has to match the strip. Connecting 24V strip to the wrong supply either leaves it dark or destroys it, and that is not a warranty claim.

Cutting and installing it

The strip can be cut, but only at the marked cutting points - every 62.5mm. Cutting anywhere else severs the circuit and kills the section beyond the cut.

Run it in an aluminium profile where you can - the aluminium draws heat away and the diffuser turns the line of separate LEDs into a continuous one.

Test the run before committing it. Adhesive backing does not survive being lifted and re-laid, and a fault found after the diffuser is on means taking the run apart.

Specifying and pricing this

This is part of the Havit Commercial range, which is priced on application rather than listed. Use the enquiry button on this page and we will come back with pricing for the quantity you need.

Commercial strip is usually specified by the metre against a drawing rather than bought off a shelf, so the quantity, the driver sizing and the run layout are worth settling together. Send us the run lengths and we will work back to what the job actually needs.

⚠ Confirm availability before a specification is issued. Commercial ranges change, and a product written into a drawing that is no longer stocked is a change order later, when it is far more expensive to fix.

Frequently asked questions
Does it come with a driver?

No. The strip is supplied on its own and needs a 24V DC driver sized to your run.

Can I cut it to length?

Yes, at the marked cutting points - every 62.5mm. Cutting between them kills the section past the cut.

Can it go in a bathroom or outside?

No. At IP20 it has no moisture protection and is for dry interior positions only.

Do I need an electrician?

For the mains connection to the driver, yes. That is licensed electrical work in Australia.

Why is there no price shown?

The Havit Commercial range is priced on application. Send an enquiry from this page with the quantity you need and we will come back with pricing.

How do I get pricing?

Send an enquiry from this page with the part number and the quantity. Pricing on this range depends on the job, so it is quoted rather than listed.

What warranty does it carry?

5 Years*

Product Specifications
Product Specifications
x

Specifications

TypeLED strip
Beam angle123.0 DEG
Strip voltage24V DC
IP ratingIP20 - dry interior positions only
Cutting pointsEvery 62.5mm
LED typeCOB
Warranty5 Years*

Variant specifications

Part numberColourPowerLengthIP rating
HCP-3221114IP20
