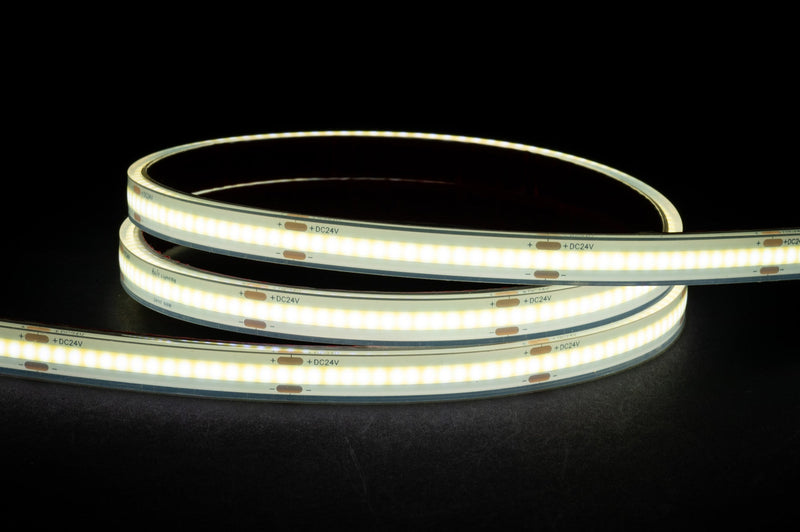

10w CSP Strip Lighting - IP68 / Per Metre

10w CSP Strip Lighting - IP68 / Per Metre

This is a general-purpose LED strip, the density most jobs actually want. It is bright enough to work under a cabinet or along a stair, and restrained enough to sit in a cove without turning it into a light box.

It is also the density that makes a diffuser worthwhile rather than optional. Bright enough that individual LEDs read as dots when uncovered, not so bright that a diffuser wastes what it produces.

Output and colour

This strip draws 9.6W per metre, producing 1325lm per metre.

⚠ Both figures are per metre, not per reel. A long run multiplies them, and that is the number that decides the driver.

It is a 5500K product - one fixed colour temperature.

This is a cool white, close to daylight. It reads as bright and precise, which is what suits a garage, a laundry, a display case, a workshop or any job where seeing detail matters more than atmosphere.

⚠ Cool light in a living space is the most common colour-temperature regret. It makes a room feel like a workplace, and the effect is far stronger at night than the specification suggests.

Colour rendering is >80 CRI, which describes how faithfully colours appear under the light. It matters most where the lighting falls on food, skin, timber or fabric.

The beam spread is 120°.

Where it can be installed

At IP68 this is rated for wet or exposed positions - outdoors, in bathrooms, or anywhere it will be splashed or rained on.

The rating protects the strip itself. The cut ends and the joints are the vulnerable part of any run, so they have to be sealed properly if the protection is to mean anything in practice.

Powering it

This strip runs at 24V DC, so it needs an LED driver between it and the mains. It cannot be connected to mains directly.

Size the driver from the run, not the reel: multiply the wattage per metre by the metres you are actually installing, then choose a driver comfortably above that total. A supply working at its limit runs hot, and heat shortens both the driver and the strip.

⚠ The driver's output voltage has to match the strip. Connecting 24V strip to the wrong supply either leaves it dark or destroys it, and that is not a warranty claim.

Cutting and installing it

Strip is cut to length at the marked cutting points only. Cutting between them severs the circuit and kills everything past the cut, so plan the run to the nearest marked point rather than to the exact millimetre.

Run it in an aluminium profile. The aluminium draws heat away, which is the single biggest factor in how long a strip holds its brightness, and the diffuser turns the line of separate LEDs into a continuous one.

Test the run before committing it. Adhesive backing does not survive being lifted and re-laid well, and a fault found after the diffuser and end caps are on means taking the whole run apart.
