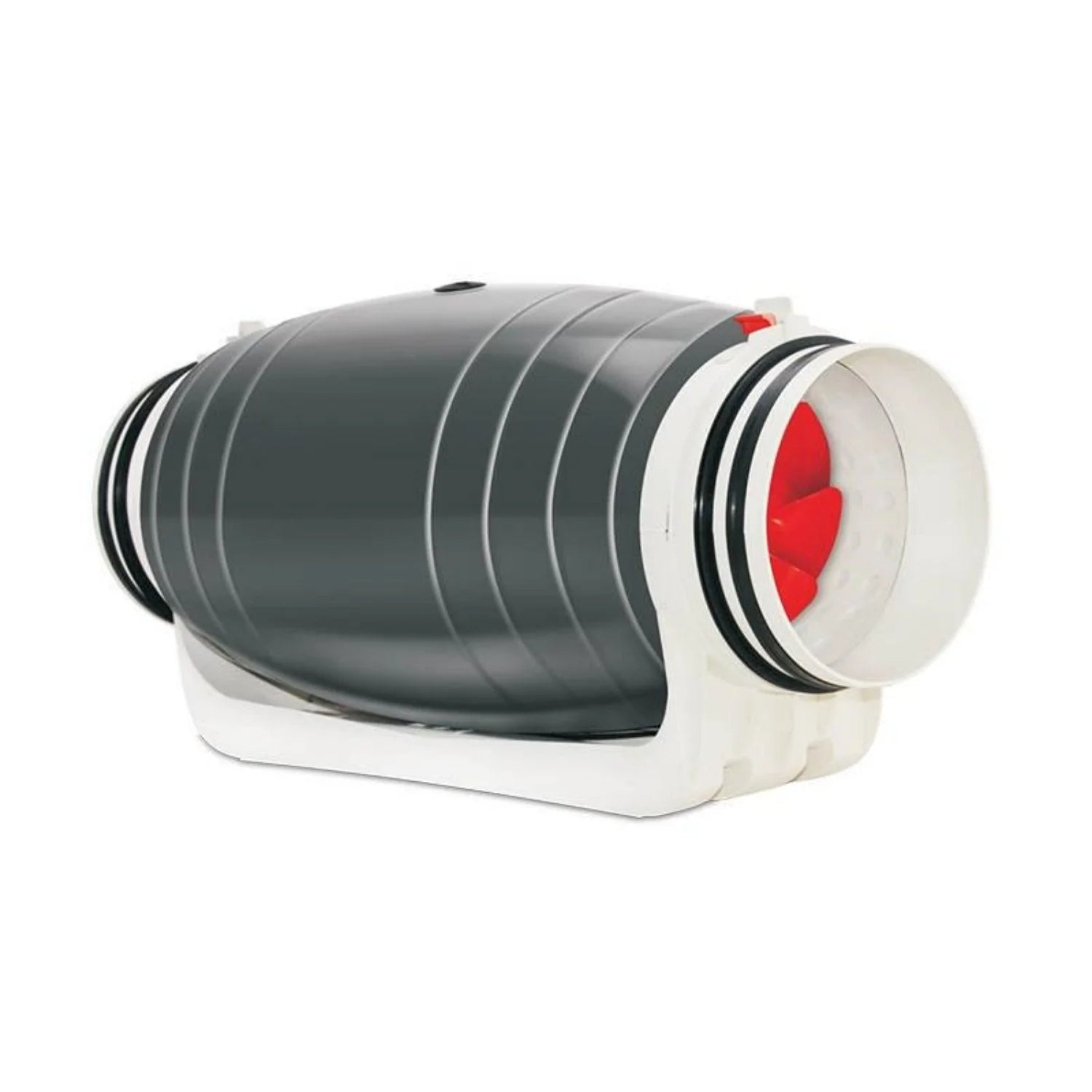

Vent-Axia EC Acoustic Mixed Flow inline Exhaust Fan 200mm w/ Lead and Plug + Speed Controller - ECSM200

Description:

The new ECSM200 acoustic inline fan from Vent-Axia is designed for quick and easy install to provide ultra-quiet ducted ventilation. Designed with inbuilt acoustic insulation which reduces noise whilst maintaining great airflow. Fitted with a long-life brushless EC motor, the fan is designed to minimise energy use whilst providing quiet running sound compared to common DC or AC fan types.

Please note: This fan comes with a lead and plug and a variable speed control attached to the power cord (see image gallery). Also in the image gallery is some more information on performance at different speeds, for example at 1500 rpm the fan produces a mere 36 dBA and consumes only 38 watts.

Features:

• High performance mixed flow fan – ideal for ducted applications
• Low noise operation
• Low energy EC motor
• Low profile design
• Rugged mounting foot design
• Lead & Plug with Speed Control Dial

Specifications:

• Manufacturer: Vent-Axia
• Material: Plastic
• Motor Power: 165w
• Motor Type: Mixflow
• Speed Variable: Yes
• Extraction Capacity: 1250 m3/hr (347.22 l/s)
• Recommended Room Size (Based On Achieving 15 Air Changes Per Hour): 83 m3
• Noise Level: 43 dB(A)
• IP Rating: IP44
• Voltage: 220 - 240v
• Installation: This fan comes with a lead and plug for connection to a power socket
• Duct Size: 200mm
• Motor RPM: 3000
• Warranty: Vent-Axia – The manufacturer offers a 2 years replacement warranty (Commercial), Vent-Axia – The manufacturer offers a 5 years replacement warranty (Residential)

Dimensions:

• Length: 567mm
• Diameter: ø262mm
• Height: 301mm

Order Code:
ECSM200
