Product Description

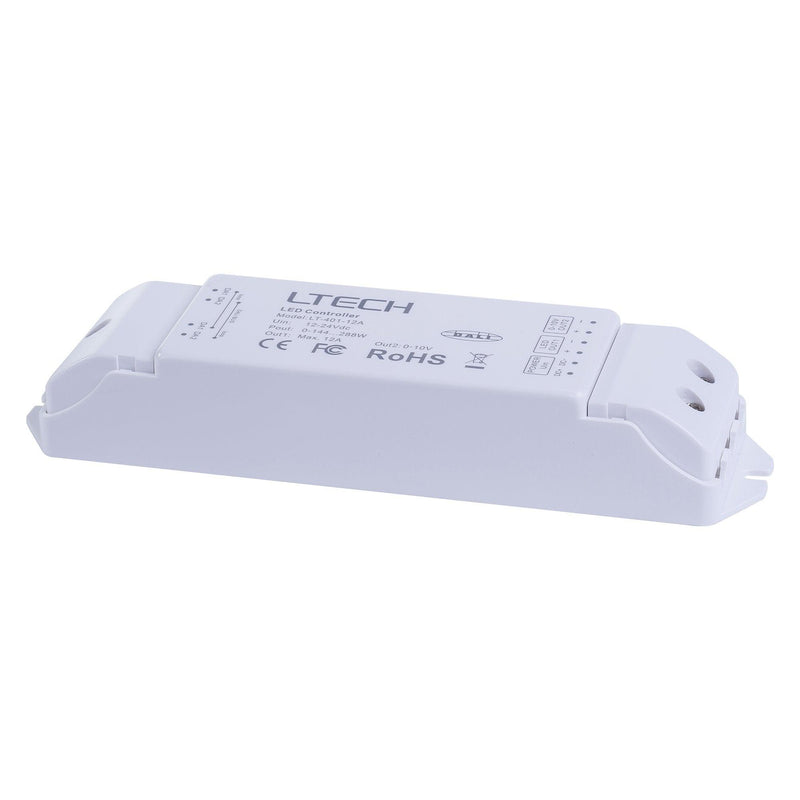

xDali LED Strip Controller
This is an in-line controller for low-voltage LED strip. It sits between the driver and the strip: the driver supplies the power, and this decides what the strip does with it.
⚠ It is not a power supply and does not replace one. A strip run needs a driver as well - this unit is the part that gives you control over it.
What it controls
Match this unit to the strip you intend to run. Havit build these controllers for particular channel layouts, and the layout has to agree at both ends - a controller and a strip that disagree will drive the wrong channels or leave some of them dead.
If you are not certain what your strip is, our team at Lights For You can confirm it from the part number before you order.
Control protocol
It works over DALI.
DALI is an addressable, wired protocol used in commercial installations and in homes with a proper control system. Each unit gets an address, so lighting can be grouped and re-grouped in software rather than by rewiring.
⚠ Every part of the chain has to speak the same protocol. Mixing systems is the most common reason a control setup does not respond as expected.
Wired or wireless control
Control systems fall into two camps and the choice is worth making deliberately. Wired protocols such as DALI and DMX run a signal cable to each unit: more work at installation, but nothing to pair, no batteries, and behaviour that does not change because a phone or a hub was replaced.
Wireless systems - Zigbee, RF and WiFi - need no signal cable, which makes them the practical option in a finished room where running one would mean opening walls. The trade is that they depend on pairing, and on signal reaching where it needs to.
New build or full renovation usually favours wired, because cable is cheap while the walls are open. Retrofit work usually favours wireless, for the same reason in reverse.
Specification notes
Rated at 12A per channel. Keep the load on each channel inside that figure, and leave some headroom rather than working right at the limit.
It runs on 12V or 24V DC, supplied by the driver on the run.
⚠ At IP20 this unit has no weather protection. It must be installed in a permanently dry location - indoors, inside a cavity or in a cupboard, never outside or anywhere it could see condensation.
Installation
The control side of a strip run is low voltage, but the driver feeding it still has to be wired to mains by an electrician. Plan where this unit will sit before the strip goes in - it needs to stay accessible, and it should not be sealed into a channel or a plastered cavity.
Keep the run order right: mains to driver, driver to controller, controller to strip. Wiring a controller directly to mains will destroy it.
Frequently asked questions
Does this power the lights on its own?
No. It is a control unit, not a driver. The lighting still needs a driver to power it - this decides what the light does, not whether it has power.
What system do I need to run it?
Something that speaks DALI. Every part of the chain has to use the same protocol.
How much strip can it handle?
Up to 12A per channel. Work out the load of your run and stay inside that, with room to spare.
Can it go outside?
No. At IP20 it has no weather protection and has to stay in a permanently dry location.
Do I need an electrician?
For the driver and its mains connection, yes. The low-voltage side between driver, controller and strip is not mains work, but the supply feeding it is.
What warranty does it carry?
3 Years*
Product Specifications
xSpecifications
| Type | In-line LED strip controller - not a power supply |
|---|---|
| Control protocol | DALI |
| Rating | 12A per channel |
| Supply | 12V or 24V DC from the driver |
| IP rating | IP20 - indoor, dry locations only |
| Material | Plastic |
| Warranty | 3 Years* |
Variant specifications
| Part number | Controls | Protocol | IP rating |
|---|---|---|---|
| HV9107-LT-401-12A | in-line LED strip controller | DALI | IP20 |
