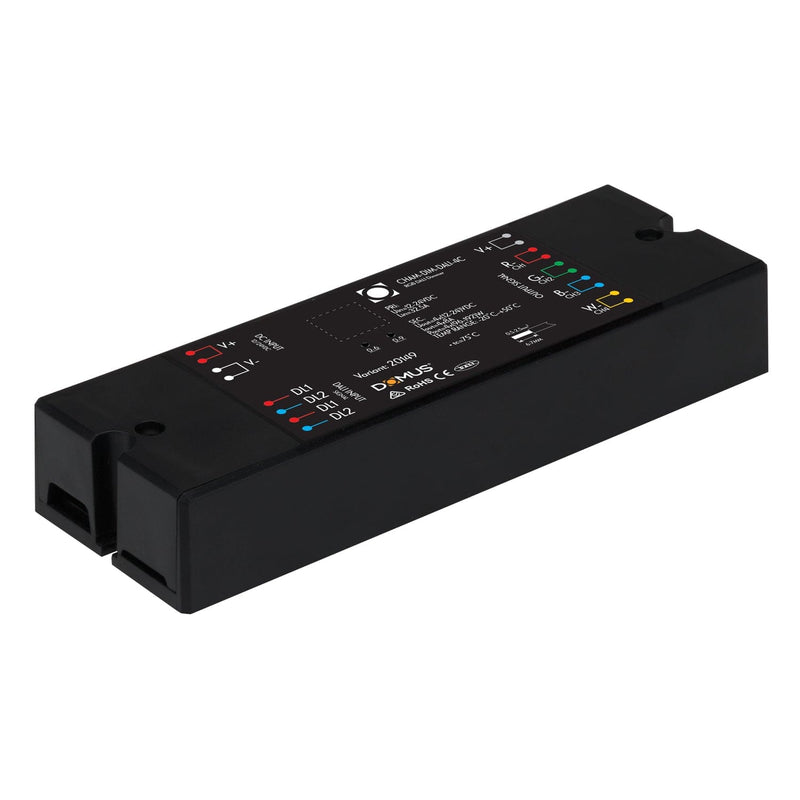

CHAM-DIM-DALI-4C Master Universal

The CHAM-DIM-DALI-4C Master Universal is an interface designed to suit DALI dim applications. Intended for use with 12-24V DC Constant Voltage LED lighting products the CHAM-DIM-DALI-4C offers seamless integration between automation systems. Accepts standard DALI signal generated from any automation system.

Featuring 1-4CH of dimming, allowing control over single colour, RGB or RGBW LED lighting products. The CHAM-DIM-DALI-4C Master Universal makes integration a breeze with options for Auto addressing or manual addressing function.

Products To Be Used In Conjunction:

Power Supply: 12V/24V DC Constant Voltage LED Driver

Expandable Data Signal Repeater: CHAM-DR-4C

Variant: 20149 - 1-4 Channel DALI Dimmable RGB/RGBW LED Interface (previously known as CHAM-40).

• Type of Interface: 1-4 Channel DALI Dimming Controller (selectable)
• Method of Control: DALI signal*
• Method of Dimming: PWM (Pulse width modulation)
• Housing Colour: Black plastic colour housing
• Digital Display: Yes
• Expandable signal: Yes**
• Requires: 12-24V DC Constant Voltage LED Driver***

Specifications:

• Input Voltage (VDC): 12-24V DC
• Output Voltage (VDC): 12-24V DC
• Output Current (A): 4x8A
• Output Wattage (W): 12V DC - 96W per channel (x4)
• Output Wattage (W): 24V DC - 192W per channel (x4)

Dimensions:

• Housing size (mm): (L) 169mm x (W) 58mm x (H) 28mm
