Havit Lighting
SKU: HV3005T-WHT-12V

HV3005T-WHT-12V | HV3005T-WHT-240V - Bata White 6w LED Brick Light

3 Years Warranty
3 Years Warranty
IP54 – dust and splashproof
IP54 – dust and splashproof
Color Temprature Changing Technology
Color Temprature Changing Technology
Soft ambient light
480 lm Learn More!!
$111.17
$150.95
$111.17
Product Description
Product Description
x

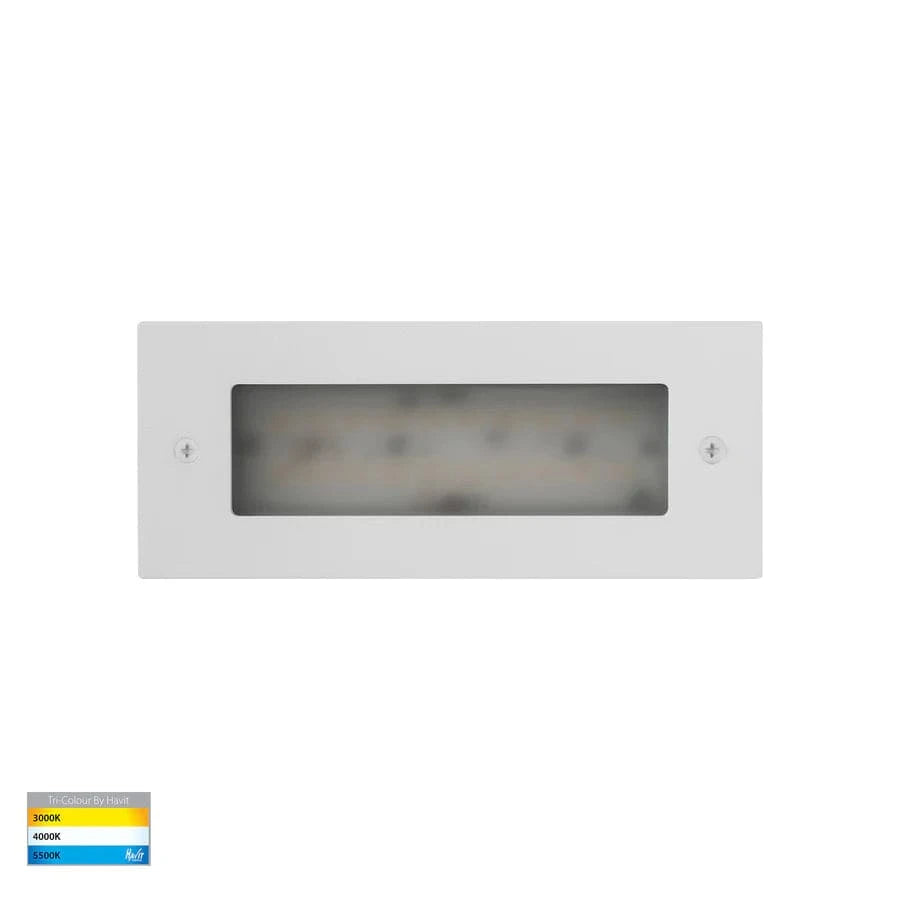

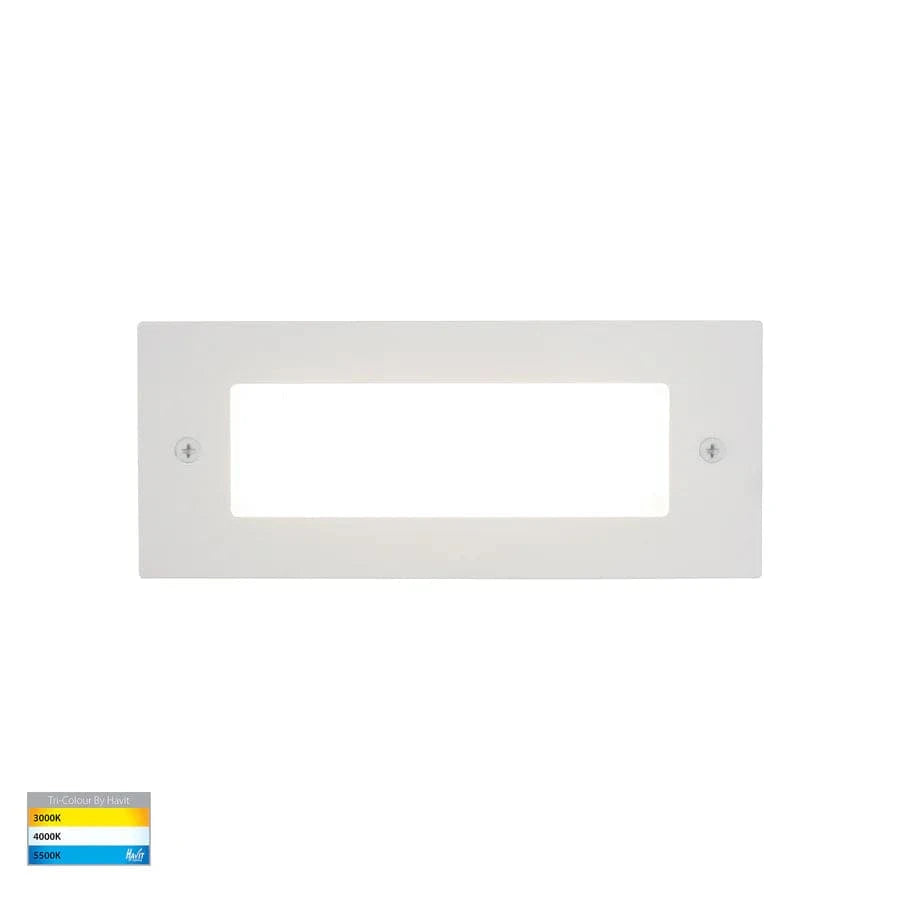

White is the finish that makes a recessed fitting vanish. Against rendered, painted or light-toned brickwork the powder-coated white Bata sits flush and reads as part of the wall by day — which is the whole point of recessing a light in the first place. It is the plain-face 6 W model: flat cover, clean rectangular aperture, nothing protruding into a path.

Cut it to these figures

The 6 W Bata is the model in this range with published apertures, and they are the numbers to fix before anything else happens on site. 159 × 58 mm with the canister, 155 × 50 mm without, and 60 mm of depth behind the finished face. On a render-over-block wall the depth is usually the constraint rather than the width — worth checking before the render goes on, not after. Cut and test-fit a single aperture before running the rest.

Canister or clips

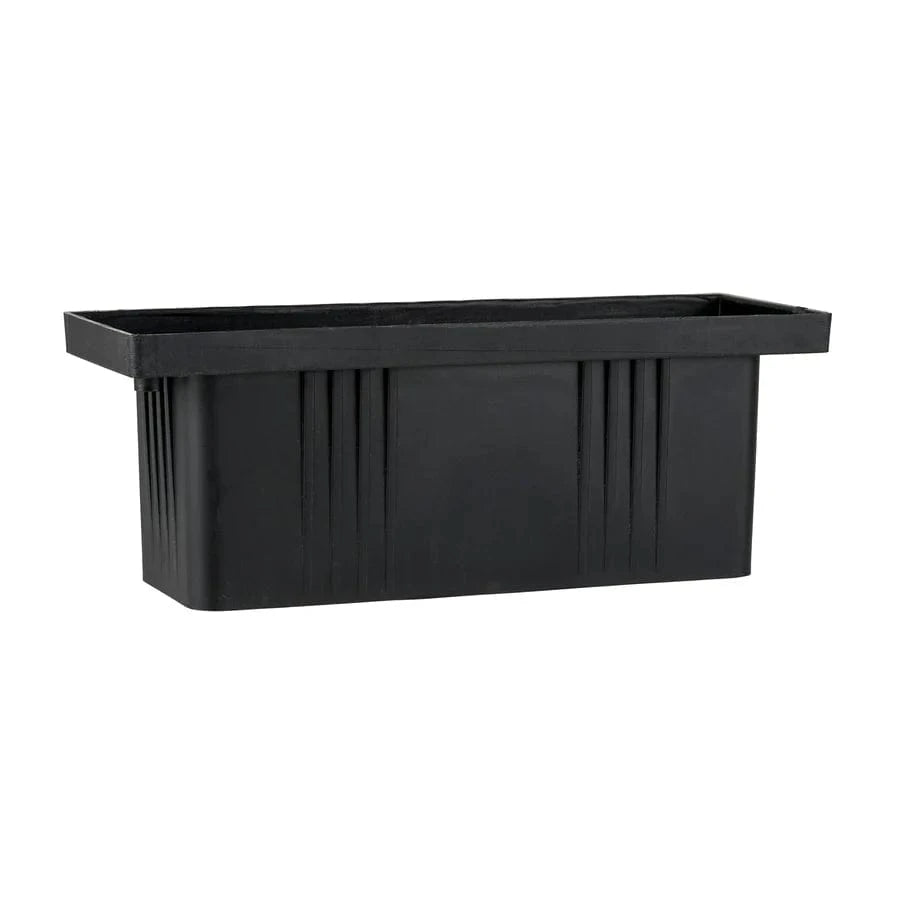

Unlike the 10 W Bata, this one is supplied with spring clips for gyprock as well as taking a canister. That gives one fitting for both a masonry garden wall and a lined entry soffit, and it is a genuine reason to choose the 6 W over the larger model when a job runs across both.

No dimming on this model

The data sheet and the installation instructions agree: Dimmable: No, on 240 V and on 12 V alike. Do not assume the 10 W behaviour carries down the range — the HV3003T is Triac dimmable on its 240 V code, and this fitting is not. If a dimmer is in the drawing, specify the larger model.

The two supply codes are different products

The 240 V code is Protection Class 1 and needs an earth. The 12 V DC code is Class 3, needs no earth, and requires a 12 V DC LED driver; the installation sheet states in capitals that a 12 V fitting must not be connected directly to mains. On 12 V the fitting cannot sit more than 25 m from its driver and supply must hold within ±5% of rated voltage, or the warranty is void. Wiring is parallel and the tail is 150 mm, so plan the joint position before the canister goes in.

Light, and the coastal caveat

IP54, IK06, frosted tempered glass, 120° beam, CRI above 80. The 6 W LED is built in on a replaceable panel — no globe and no socket — with a slide switch selecting 3000 K, 4000 K or 5500 K at install for 480, 510 and 540 lumens. White powder coat over 316 stainless is included in Havit's request that such fittings be kept 5 km from salt water, so on an oceanfront job take advice before specifying a painted finish.

Both voltages of the white 6 W Bata are stocked at Lights For You; the grilled version of the same fitting is the HV3006T-WHT.

Questions
What cut-out and depth does it need?

159 × 58 mm with the canister or 155 × 50 mm without, with 60 mm of depth behind the face. On rendered block the depth is usually the tighter constraint.

Can I fit it into plasterboard?

Yes — spring clips for gyprock are supplied alongside the masonry canister option, so one fitting covers both.

Will it dim?

No. Both Havit documents for this model record it as non-dimmable on either supply voltage. The 10 W HV3003T dims on 240 V; this one does not.

Does white yellow outdoors?

It is a poly powder coat over a 316 stainless cover, not a paint film. Havit does ask that powder-coated stainless fittings be kept 5 km from salt water, which is the more relevant limit for a coastal site.

Which supply code should I order?

240 V if the circuit is mains and earthed — it is Protection Class 1. 12 V DC if you are running a low-voltage garden circuit, in which case a 12 V DC LED driver is required.

How far from the driver can it go?

25 m maximum on 12 V, with supply within ±5% of rated voltage. Beyond that the sheet states the warranty is void.

Is a globe required?

No. The 6 W LED is built in on a replaceable panel and there is no socket to lamp.

Product Specifications
Product Specifications
x

Specifications

BrandHavit Lighting
Model / SKUHV3005T-WHT — in 240V and 12V
TypeOutdoor LED brick light — recessed
FacePlain (the grilled version is the HV3006T)
FinishPoly powder coated white over a 316 stainless steel cover
BodyPowder coated die-cast aluminium
DiffuserFrosted tempered glass
Installation TypeWall — recessed; canister, or the supplied clips in gyprock
Cut-Out — with canister159mm × 58mm
Cut-Out — without canister155mm × 50mm
Installation Depth60mm
Input Voltage240V AC or 12V DC, by order code
Wattage6W
Lumen Output480 lm at 3000K / 510 lm at 4000K / 540 lm at 5500K
Colour TemperatureTRI Colour: 3000K / 4000K / 5500K — slide switch on the LED panel, preset 3000K
Beam Angle120°
IP RatingIP54
IK RatingIK06
Lamp BaseBuilt-in LED — no globe or socket; the LED panel is replaceable
Protection Class240V = Class 1, earth required · 12V DC = Class 3, no earth required
DimmingNo — not dimmable on either supply voltage
Driver12V code requires a 12V DC LED driver; the 240V code requires none
Cable Length150mm
WiringParallel
CRI>80
Max Driver Distance25m on 12V, supply within ±5% (exceeding this voids the warranty)
Warranty3-year replacement

Variant specifications

Order codeSupplyEarthDriverDimmingColour tempLumens
HV3005T-WHT-240V240V ACrequired — Class 1not requiredNO3000K / 4000K / 5500K480 / 510 / 540 lm
HV3005T-WHT-12V12V DCnot required — Class 312V DC LED driver REQUIREDNO3000K / 4000K / 5500K480 / 510 / 540 lm
