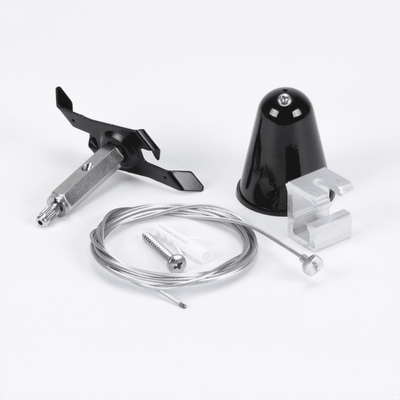

TRAK-3 CIRCUIT 3.0M SUSPENSION KIT

The Domus TRAK-3 3.0 m suspension kit is a suspension set for 3-circuit track — 3 m drop, ceiling plate 100 × 100 × 30 mm, in black or white.

⛔ Its length field records the plate, not the drop

• ⭐ The record publishes length 100 mm on a kit named for a 3 m drop. ⭐ 100 mm is the ceiling plate.
• ⭐⭐ WE MEASURED THE TRAK-3 KITS AND THE SPLIT IS CLEAN: 2 of 2 suspension kits record the plate, and 1 of 1 rod kits records its length correctly.
• ⭐ THAT NARROWING IS THE USEFUL PART. ⭐ The rod kit being right is what keeps this a suspension-kit fault rather than a “TRAK-3 accessories” one — and a narrower claim is a more useful one to act on.
• ⭐ TAKE THE DROP FROM THE PRODUCT NAME. ⚠ On a suspension kit the drop is the specification that matters, and the dimension fields describe the plate.
• ⚠ ITS SHEET IS ALSO CONTRADICTED — ⭐ a family sheet whose item table names track SKUs 22150–22153 rather than this kit. ⭐ The general information about the track system is true and useful; the specifics are not this part's.

⭐⭐ 3 metres is a serious drop — and the reason is optical

• ⭐ LIGHT FALLS OFF WITH THE SQUARE OF DISTANCE. ⭐ A spotlight at 6 m delivers roughly a quarter of what the same fitting delivers at 3 m, and about a ninth of what it delivers at 2 m.
• ⭐⭐ SO ON A HIGH CEILING, DROPPING THE TRACK IS CHEAPER THAN ADDING FITTINGS — and it is also better light, because the beams have less distance to spread and the pools stay tighter.
• ⭐ FROM A 6 m CEILING THIS BRINGS THE TRACK TO 3 m, ⭐ which is a working height for a warehouse conversion, a double-height retail space, a church hall or a gallery.
• ⚠ FROM ANYTHING UNDER ABOUT 4.5 m IT IS TOO MUCH. ⭐ A 3 m drop from a 4 m ceiling puts the track at head height. ⭐ The 1.5 m kit or a rod kit is the answer below that.
• ⚠ AND A LONG DROP SWAYS. ⭐ Three metres of suspension moves noticeably in air currents — under a large fan, near a roller door, or in a double-height space with convection, which is exactly where 3 m drops get used. ⭐ Ask about lateral restraint if the space moves air.

⭐ Quantity comes from the track, not the fittings

⭐⭐ SUSPENSION POINTS ARE SPACED BY THE TRACK'S OWN SPAN AND LOAD, NOT BY HOW MANY LIGHTS ARE ON IT. ⭐ A 2 m track with two heads and a 2 m track with eight need the same points, because the deflection is a property of the extrusion. ⭐ Plan a point near each end, at intervals along the run, and one at every joint — a joint is a hinge, and an unsupported joint is where a track visibly sags. ⚠ Confirm the spacing against the track's own load data before ordering quantities. ⭐ The kit is sold per point.

⭐ Match the finish to the track

⭐ Black or white. ⭐⭐ MATCH THE TRACK, BECAUSE THE SUSPENSION READS AS PART OF IT. ⭐ A white suspension on a black track is a visible interruption at every point. ⚠ The commonest mistake is matching the ceiling instead, which works only when the track matches the ceiling too. ⭐ At a 3 m drop the suspension is a genuinely visible element rather than a detail — three metres of wire or rod at every point is part of what the space looks like, so the choice matters more here than on a short drop.

⚠ Load, not just length

⭐ 3-circuit track carries high power loads and the whole assembly hangs from these points. ⭐⭐ THE STRUCTURE ABOVE MATTERS AS MUCH AS THE KIT. ⚠ A 3 m drop puts the load a long way from the fixing, and a ceiling that would happily carry a surface-mounted track may need checking for a suspended one — particularly a suspended plasterboard ceiling, which is not a structural surface. ⭐ Fix to structure, not to lining, and have the fixing method confirmed for the total load of track, fittings and suspension. ⚠ This is an electrician-plus-structure job on a high ceiling, not a single-trade one.

✅ What is published

Where it works

• ⭐⭐ Ceilings of 5.5–6.5 m — ⭐ warehouse conversions, galleries.
• ⭐ Where adding fittings would be the alternative — ⭐ dropping is cheaper.
• ⭐ At every track joint — ⭐ a joint is a hinge.
• ⚠ Not under 4.5 m — ⭐ it puts the track at head height.
• ⚠ Not fixed to a plasterboard lining — ⭐ fix to structure.

Specifying it

Suspension kit for TRAK-3 3-circuit track. 3 m drop. Ceiling plate 100 × 100 × 30 mm. 220–240 V, IP20. Black or white. Sold per suspension point. ⛔ ITS LENGTH FIELD RECORDS 100 mm ON A 3 m KIT — that is the ceiling plate, not the drop. Both TRAK-3 suspension kits do this and the rod kit records its length correctly, which is what keeps it a suspension-kit fault rather than a "TRAK-3 accessories" one. Take the drop from the product name. ⭐⭐ AND 3 METRES IS A SERIOUS DROP FOR AN OPTICAL REASON: light falls off with the square of distance, so a spotlight at 6 m delivers roughly a quarter of what it delivers at 3 m. On a high ceiling, dropping the track is cheaper than adding fittings and it is also better light. ⚠ BUT FROM ANYTHING UNDER ABOUT 4.5 m IT IS TOO MUCH, and a 3 m drop sways in moving air.

Supplied and supported by Lights For You.

Download Datasheet (PDF)
