Domus Lighting Backlit Panel Domus PANEL-BLT-306 Backlit Panel Troffer Light
Domus Lighting Backlit Panel Domus PANEL-BLT-306 Backlit Panel Troffer Light Lights-For-You
Domus Lighting Backlit Panel Domus PANEL-BLT-306 Backlit Panel Troffer Light
Domus Lighting Backlit Panel Domus PANEL-BLT-306 Backlit Panel Troffer Light Lights-For-You
Loading... + Add to wishlist - Remove from wishlist
Domus Lighting
SKU: 17617

Domus PANEL-BLT-306 Backlit Panel Troffer Light

3 Years Warranty
3 Years Warranty
IP20 – perfect for indoor use
IP20 – perfect for indoor use
L4Y Best Choice
L4Y Best Choice
Color Temprature Changing Technology
Color Temprature Changing Technology
Very bright – large areas
2200 lm Learn More!!
Color: White
$64.52
$92.34
$64.52
Product Description
Product Description
x

The Domus PANEL-BLT-306 is a 300 × 600 mm backlit LED panel — tri-colour switchable, 2200–2350 lm, IP20, with a harmonic filter for flicker-free operation, in Trio or DALI.

⛔⛔ Is it 16 W or 25 W? The lumens answer it.
  • ⭐ Its web address says 25 W. Its power field says 16 W. ⚠ Both cannot be right, and the difference matters for circuit loading and for running cost.
  • ⭐ The published output settles it without asking anyone. ⭐ Domus publishes 2200, 2300 and 2350 lm across the three colour settings:
If the power is… Efficacy ⭐ Verdict
⛔ 16 W 138 / 144 / 147 lm/W ⛔ Exceptional — ⚠ well above what a backlit panel achieves
⭐ 25 W ⭐ 88 / 92 / 94 lm/W ⭐ Ordinary and entirely credible
  • ⭐ A backlit LED panel typically runs between 80 and 110 lumens per watt. ⭐ 25 W lands squarely in that band; 16 W would put this panel well outside it.
  • ⭐ So we treat 25 W as correct and the 16 W field as an error. ⭐ Size the circuit at 25 W. ⚠ Offered as reasoning from the published figures rather than as a Domus statement — ⭐ but under-sizing a commercial circuit by a third is the mistake worth avoiding.
⭐ Backlit, not edge-lit — and why the word is in the name

⭐ An edge-lit panel puts the LEDs around the rim and pushes light across a guide plate. ⭐ A BACKLIT panel puts them across the whole back, firing forward through the diffuser. ⭐ Backlit gives a more even face with less fall-off at the centre, and it generally reaches better efficacy because the light travels a shorter distance through less material. ⚠ It is also the reason a backlit panel needs some depth — ⭐ the LEDs need room to blend before they reach the diffuser, exactly as a strip does in a profile.

⛔ It is sold with a DALI option and a field that says it does not dim

⭐ Two variants exist: Trio and DALI. ⛔ The dimmable field says “No”. ⭐ DALI is a dimming protocol, so a non-dimmable DALI fitting is a contradiction in terms. ⭐ The sensible reading is that the field describes the TRIO variant only, and the DALI variant dims — ⚠ but confirm which you are ordering, because it decides whether the ceiling needs a control cable.

✅ The published specification
Specification Value
Size 595 × 295 mm — ⭐ the 300 × 600 grid module
Power ⭐ 25 W at 220–240 V — ⛔ field says 16 W
Light output ⭐ 2200 / 2300 / 2350 lm by setting
Colour temperature 3000 / 4000 / 5700 K — ⭐ DIP switch on the power cable
IP rating IP20 — ⚠ dry interior only
Construction Powder-coated white trim, opal diffuser
⭐ Flicker ⭐ Harmonic filter — flicker-free
Variants Trio (17617) or DALI (21646)
Warranty 3 years
Where it works
  • T-bar grid ceilings — ⭐ the 300 × 600 module.
  • Offices, corridors and consulting rooms.
  • ⭐ Rooms used for video calls — ⭐ the flicker filter.
  • ⛔ Not in wet areas — ⚠ IP20.
  • ⚠ Not circuited at 16 W.
Specifying it

300 × 600 mm backlit LED panel troffer, 595 × 295 mm. 25 W at 220–240 V. 2200 / 2300 / 2350 lm at 3000 / 4000 / 5700 K, DIP switch on the power cable. IP20. Powder-coated white trim, opal diffuser. Harmonic filter, flicker-free. Trio or DALI. 3-year warranty. ⛔ THE HANDLE SAYS 25W AND THE POWER FIELD SAYS 16W, AND THE LUMENS ARBITRATE: at 16W the published output would be 138–147 lm/W, exceptional for a backlit panel; at 25W it is 88–94 lm/W, entirely ordinary. ⭐ SIZE THE CIRCUIT AT 25W. ⛔ It also publishes dimmable=No while selling a DALI variant — the field almost certainly describes the Trio only.

Supplied and supported by Lights For You.

Questions
Is it 16W or 25W?

25W. The web address says 25W and the power field says 16W, and the published lumens settle it: Domus publishes 2200, 2300 and 2350 lumens across the three colour settings. At 16W that would be 138 to 147 lumens per watt, which is exceptional and well above what a backlit panel achieves. At 25W it is 88 to 94 lumens per watt, which is ordinary and entirely credible.

Why does that matter?

Circuit loading and running cost. A backlit LED panel typically runs between 80 and 110 lumens per watt, so 25W lands squarely in that band while 16W would put this panel well outside it. Size the circuit at 25W — under-sizing a commercial circuit by a third is the mistake worth avoiding. That is reasoning from the published figures rather than a Domus statement.

What does "backlit" mean, and why is it in the name?

An edge-lit panel puts the LEDs around the rim and pushes light across a guide plate. A backlit panel puts them across the whole back, firing forward through the diffuser. Backlit gives a more even face with less fall-off at the centre, and it generally reaches better efficacy because the light travels a shorter distance through less material.

Can I dim it?

That depends which variant you order, and the listing is contradictory about it. Two variants exist, Trio and DALI, while the dimmable field says "No" — and DALI is a dimming protocol, so a non-dimmable DALI fitting is a contradiction in terms. The sensible reading is that the field describes the Trio variant only and the DALI variant dims. Confirm which you are ordering, because it decides whether the ceiling needs a control cable.

What is the harmonic filter for?

Flicker. Domus fits a harmonic filter to reduce total harmonic distortion, which reduces flicker and strobing. The practical benefit is on camera: standard drivers that are not flicker-free produce a rolling band effect in video recordings, which this removes. In a room used for video calls or recording that is a genuine specification point. No flicker percentage is published, so it is a claim without a number attached.

Where does it fit?

A 300 x 600mm T-bar grid module — the panel measures 595 x 295mm to drop into it. It suits offices, corridors and consulting rooms. It is IP20, so dry interiors only.

How does it compare with the 600 x 600 version?

The 606 is the square module at 35W and takes the same family features — same tri-colour switching, same harmonic filter, same T-bar or plaster-kit mounting. Choose by the grid you have: a 300 x 600 module for corridors and narrower bays, a 600 x 600 for open-plan and general office ceilings.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKUsPANEL-BLT-306 — 17617 Trio/White, 21646 Dali/White
⛔ HANDLE SAYS 25W · FIELD SAYS 16W⭐ The published lumens arbitrate
⛔ At 16W138 / 144 / 147 lm/W — ⚠ exceptional, above what a backlit panel achieves
⭐ At 25W⭐ 88 / 92 / 94 lm/W — ⭐ ordinary and credible
⭐ Typical backlit panel80–110 lm/W — ⭐ 25W lands squarely in the band
⭐ SO SIZE THE CIRCUIT AT 25W⚠ Under-sizing a commercial circuit by a third is the risk
⭐ BACKLIT vs edge-litLEDs across the whole BACK — ⭐ more even face, better efficacy
⛔ dimmable=No AND a DALI variant⭐ DALI IS a dimming protocol — ⚠ the field likely describes the Trio only
⭐ Flicker⭐ HARMONIC FILTER — ⭐ removes the rolling-band effect on camera
⚠ But no flicker percentageIs published — ⭐ a claim without a number
✅ Size / output595 × 295mm · ⭐ 2200 / 2300 / 2350 lm at 3000 / 4000 / 5700K
⚠ IP ratingIP20 — dry interior only

Variant specifications

PowerEfficacyVerdict
⛔ 16W (field)138–147 lm/W⛔ Implausible
⭐ 25W (handle)⭐ 88–94 lm/W⭐ Correct
Data Sheet & Manual
Data Sheet & Manual
x

This browser does not support PDFs. Please download the PDF to view it: Download PDF.

Download Datasheet (PDF)

This browser does not support PDFs. Please download the PDF to view it: Download PDF.

Download Datasheet (PDF)

Warranties, Return & Refund Policy
Warranties, Return & Refund Policy
x

Warranties

For all warranty claims please ensure you have your proof of purchase at hand, an invoice from your electrician from the installation and check the faulty product is within the applicable warranty period. Warranty is replacement only.

Lights For You is not responsible for damages caused by unprofessional installation, modified products or manipulated by the customer or by any other person not authorised by the manufacturer; as well as by improper use, manipulation and/or short circuits, apparent signs of improper treatment.

Faulty items: lodge warranty directly with the brand (manufacturer). Keep proof of purchase.

Damaged or Missing Items

Notification of any damages or missing items must be received by Lights For You within seven (7) days of receipt of the product. Please email photos to ashfield@lightsforyou.com.au.

If the product is to be repaired or replaced, it must correspond to the one originally sent by Lights For You and the customer must include the delivery note and/or invoice.

Returns

Change of Mind Returns

  • Customers who wish to return a product due to a change of mind or cancelled order may do so within thirty (30) days of receipt.
  • The customer is responsible for the shipping costs for a change of mind return, irrespective of any free, discounted or any other type of shipping promotion that may have been applicable at the time of your order. This includes any costs you incur for us shipping the product to you in the first place and the cost of shipping the product back to us.

Lodge a Return

You must lodge a return request via the below request form.

Excluded from Change of Mind

  • Clearance items
  • Discontinued items
  • Globes
  • Custom items
  • Made to Order (incl. custom cut profiles & LED strips)
  • Lamp shades
  • T4 fluorescent tubes
  • Gift cards

Credits will be issued in the form of store credit or gift voucher and will be equal to the price paid for the product minus the cost of shipping. Store credit vouchers are valid for six months from the date of issuance.

Our Rights

We reserve the right to refuse a return in cases where we cannot be reasonably satisfied that you purchased the product from us or where we are not responsible for the damage in accordance with our Faults & damages policy.

Cancellations

Customers who wish to cancel all or part of an order due to change of mind or incorrectly ordered may do subject to cancelling in within 12 hours, during business hours from time of purchase. Once products have been shipped, you cannot cancel them.

Your Options

  • Restocking fee: 20% will apply unless otherwise stated, or unless another order of equal or greater value is placed in lieu of this re-stocking fee.
  • Credit: will be issued in the form of store credit and will be equal to the price paid.

    Please refer to the following link to learn more about our policies

    Learn More
Compare color
  • white
Click on color/pattern to compare, click and drag images to reorder
  • 5 stars: 1 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
M
M.T. (Sydney, AU)
Trio / White

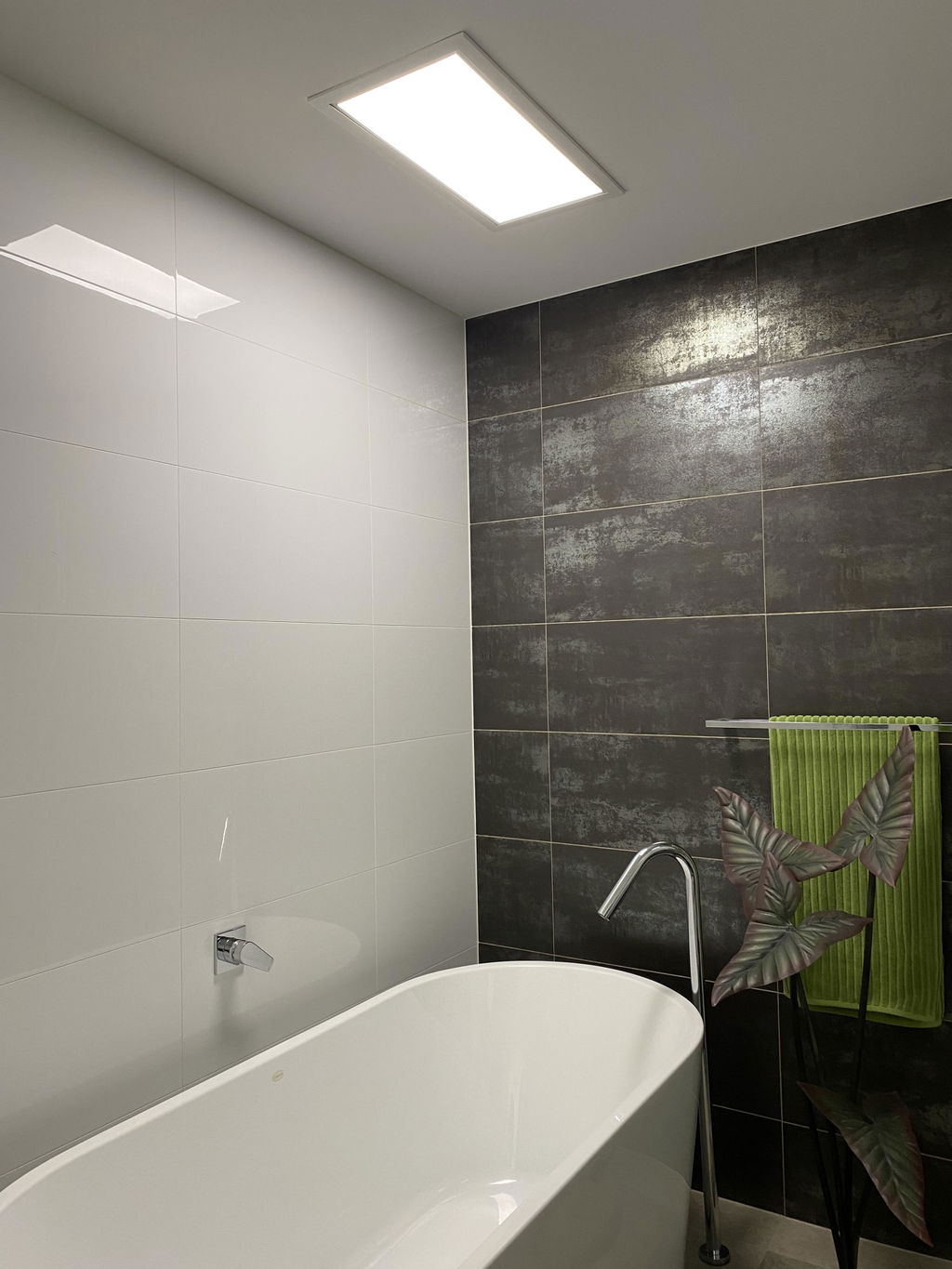

Better Than A Skylight
