Domus Lighting Fan Accessories 90Cm Downrod & Wiring Loom For Fresco Ceiling Fan
Domus Lighting Fan Accessories 90Cm Downrod & Wiring Loom For Fresco Ceiling Fan Lights-For-You 60106 9330772601060
Domus Lighting Fan Accessories 90Cm Downrod & Wiring Loom For Fresco Ceiling Fan
Domus Lighting Fan Accessories 90Cm Downrod & Wiring Loom For Fresco Ceiling Fan Lights-For-You 60106 9330772601060
Loading... + Add to wishlist - Remove from wishlist
Domus Lighting
SKU: 60105

90Cm Downrod & Wiring Loom For Fresco Ceiling Fan

1 Year Warranty
1 Year Warranty
Color: BLACK
$70.00
$94.37
$70.00
Product Description
Product Description
x

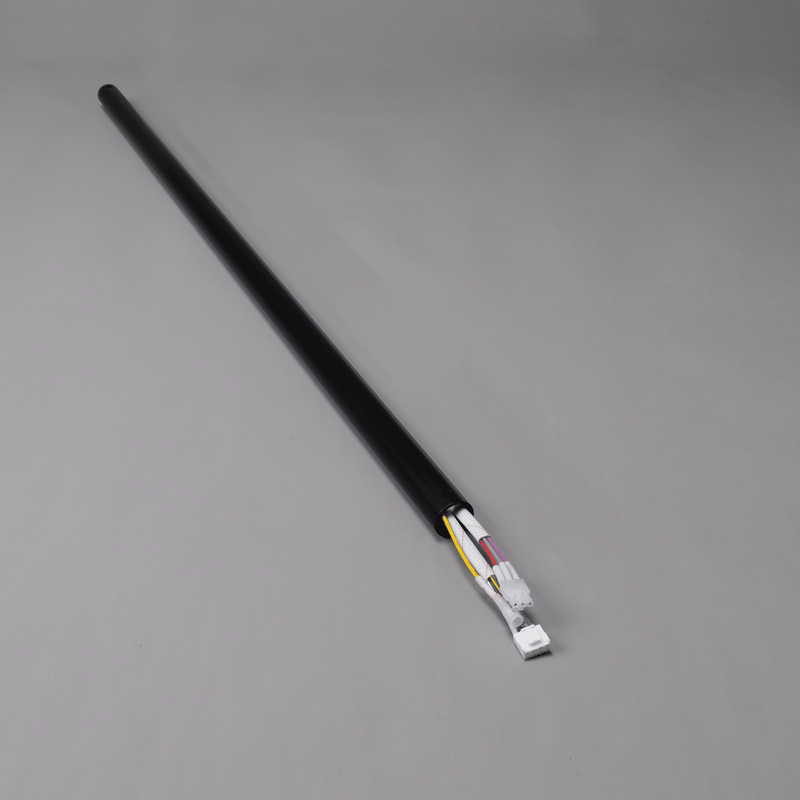

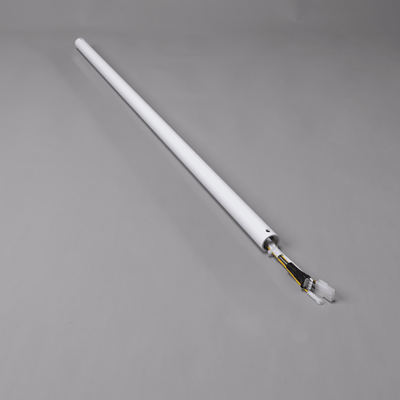

This is a 900 mm downrod and wiring loom for the Domus Fresco ceiling fan, with a 190 mm canopy, in black or white.

⛔ Confirm the fan model and your ceiling height with us before ordering. A downrod is a structural part — it holds a spinning fan above people — and there is no datasheet for it.

What we can tell you: it is 900 mm long, includes the wiring loom, has a 190 mm canopy, and is for the Fresco fan. Warranty one year.

What no source records: the rod diameter, the maximum fan weight it is rated for, the coupling type, and whether the mounting hardware is included. ⚠ Its record also holds a length of 900 mm and a height of 90 mm — a factor of ten apart, and only one of them describes the rod.

✅ Send us your fan's model number and the ceiling height and we will confirm the correct rod length and the fit with Domus.

⚠ There are two 900 mm downrods in this range, for different fans
Part For
CFA-DR2 (this) Fresco
CFA-DR1 Axis, Hover and Motion

⛔ Downrods are rarely interchangeable between ranges, because the coupling, the rod diameter and the loom connectors are all specific to the fan. Order by the fan, not by the length.

Why the rod length is a performance decision, not just a spacer
  • A ceiling fan needs air above it as well as below. Mounted too close to the ceiling it recirculates the same air and moves noticeably less of it.
  • ✅ 900 mm is a long rod, and it belongs on a high or raked ceiling — a void, a cathedral ceiling, or a flat ceiling of roughly 3 metres and above.
  • ⛔ On a standard 2.4 m ceiling a 900 mm rod would put the blades at roughly 1.6 m, which is head height. Do not fit this rod on a standard ceiling.
  • ✅ Tell us the ceiling height and we will work back to the right rod length rather than have you order the longest one available.
The wiring loom is part of the package
  • ✅ A longer rod needs a longer loom, made to length with the correct connectors at each end — which is why this is sold as a pair rather than as a bare tube.
  • ⛔ Do not extend a fan's wiring by splicing. A joined cable inside a rotating assembly is not a repair worth making.
  • ✅ Order the rod and loom together as this part rather than sourcing a rod separately.
⚠ A structural fixing as well as an electrical one
  • A ceiling fan is a fixed appliance on a 240 V circuit and a load hanging from the building's structure at the same time.
  • ⚠ On a long rod the loads at the fixing point are higher, because any wobble acts through a longer lever. The fixing has to be into structure, not into plasterboard.
  • ⚠ On a raked ceiling you may also need a sloped-ceiling kit — a standard canopy only takes a few degrees of pitch before the rod binds. Tell us the pitch as well as the height.
  • ✅ Ask us for the installation instructions with the quote so your electrician sees them before the visit.
Where it works
  • ✅ High flat ceilings — roughly 3 m and above — with a Fresco fan.
  • ✅ Raked and cathedral ceilings, where the fan must drop into the room.
  • ✅ Voids and double-height spaces.
  • ⛔ Not a standard 2.4 m ceiling — it would put the blades at head height.
  • ⛔ Not for Axis, Hover or Motion fans — that is the CFA-DR1.
  • ⛔ Not a DIY job — licensed electrician, fixed into structure.
Specifying it

900 mm downrod with wiring loom for the Domus Fresco ceiling fan. 190 mm canopy. Black or white. Warranty 1 year.

⛔ No datasheet exists for this part. The rod diameter, the maximum fan weight, the coupling type and the included hardware are all unrecorded, and we are not publishing figures we cannot stand behind on a structural part. ⚠ Its record holds a length of 900 mm and a height of 90 mm; only one describes the rod. ⚠ A companion part, the CFA-DR1, serves the Axis, Hover and Motion fans — order by the fan, not the length.

Send us your fan's model number and your ceiling height and we will confirm the correct rod length and the fit with Domus before you order. Installation by a licensed electrician.

Supplied and supported by Lights For You.

Questions
Will it fit my fan?

Only if it is a Fresco. There are two 900 mm downrods in this range — this CFA-DR2 for the Fresco, and the CFA-DR1 for the Axis, Hover and Motion fans. Downrods are rarely interchangeable between ranges because the coupling, the rod diameter and the loom connectors are all specific to the fan. Send us the model number from the motor housing and we will confirm before it ships.

Is 900 mm right for my ceiling?

Only on a high one. A 900 mm rod belongs on a ceiling of roughly 3 metres or more, or on a raked or cathedral ceiling where the fan has to drop into the room. On a standard 2.4 m ceiling it would put the blades at around 1.6 m, which is head height. Tell us the ceiling height and we will work back to the right length.

Why not mount the fan close to the ceiling?

Because a fan needs air above it as well as below. Mounted too close it recirculates the same air and moves noticeably less of it — so a fan on a high ceiling with no rod both performs worse and sits too far from the people it is meant to cool. The rod is a performance part, not just a spacer.

Does it include the wiring?

Yes — the wiring loom is included, made to the rod length with the correct connectors at each end, which is why it is sold as a pair rather than as a bare tube. Do not extend a fan's wiring by splicing: a joined cable inside a rotating assembly is not a repair worth making.

What weight of fan is it rated for?

Not recorded in any source we hold, and we will not estimate it on a structural part. Ask us and we will get it from Domus — your electrician will want it too, particularly on a long rod where any wobble acts through a longer lever and the loads at the fixing point are higher.

My ceiling is raked — is the rod enough?

Possibly not on its own. A standard canopy only takes a few degrees of pitch before the downrod binds against its edge, so a raked ceiling usually needs a sloped-ceiling kit as well. Tell us the pitch as well as the height and we will work out what the installation needs.

Can I fit it myself?

No. A ceiling fan is a fixed appliance on a 240 V circuit and a load hanging from the building's structure at the same time, and on a long rod the fixing has to be into structure rather than plasterboard. Ask us for the installation instructions with the quote so your electrician sees them before the visit.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKUsCFA-DR2 — 60105 (Black) · 60106 (White)
TypeDownrod with wiring loom for ceiling fans
Length900mm — ⚠ the record also holds a height of 90mm; only one describes the rod
Canopy190mm
Wiring loom✅ Included, made to the rod length
Compatible fanFresco — ⚠ the CFA-DR1 serves Axis, Hover and Motion
Rod diameter⛔ Not recorded — send us your fan model
Maximum fan weight⛔ Not recorded — ask us before ordering
Coupling type⛔ Not recorded
Mounting hardware⛔ Not recorded
Datasheet⛔ None exists in any source we hold
Suits ceiling heightRoughly 3m and above, or raked — ⛔ not a standard 2.4m ceiling
InstallationLicensed electrician; fixing into structure, not plasterboard
FinishesBlack · White
Warranty⚠ 1 Year

Variant specifications

Your fanDownrodNote
Fresco✅ CFA-DR2 (this)900mm, 190mm canopy
Axis, Hover or MotionCFA-DR1Also 900mm — order by the fan, not the length
Anything else⛔ Ask usCouplings are specific to the fan
