SM KIT 612X312 BACKLIT PANEL FRAME

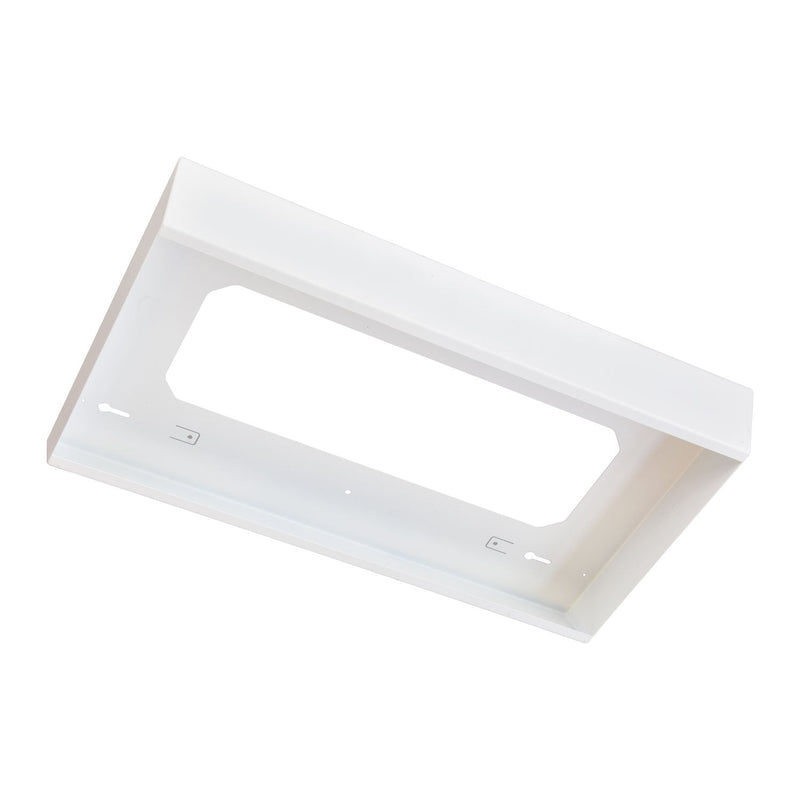

The Domus SM KIT 612×312 is a surface-mount frame for the PANEL-BLT-306 backlit panel — 355 × 600 × 66 mm, white, for ceilings that cannot take a recessed panel.

⭐ Its dimensions look wrong and are not — they describe the frame

• ⭐ The title says 612 × 312. The record says width 355 mm, length 600 mm, height 66 mm. ⚠ Neither figure matches the title.
• ⭐⭐ WE CHECKED THE WHOLE PANEL-FRAME FAMILY BEFORE CALLING IT A FAULT, AND THE FIELDS ARE INTERNALLY CONSISTENT:
  • ⭐ SM KIT 612×312 → 355 × 600
  • ⭐ SM KIT 1212×312 → 355 × 1200
  • ⭐ SM KIT 612×612 → 655 × 600
• ⭐⭐ THE PATTERN IS CLEAR: length is the title's first figure rounded to the panel module (612→600, 1212→1200), and width is the second figure plus about 43 mm of flange (312→355, 612→655).
• ⭐ SO THE RECORD DESCRIBES THE FRAME'S OWN OUTSIDE DIMENSIONS and the title names the panel size it takes. ⭐ Both are correct; they are answering different questions.
• ⭐ WE ARE RECORDING THIS AS A CHECKED-AND-CLEAN RESULT rather than a fault, ⚠ because a buyer comparing the title with the dimensions would reasonably suspect the data. ⭐ The figure you need for the ceiling is the frame's: 355 × 600 mm, standing 66 mm proud.

⭐ What a surface-mount kit is for

• ⭐ A backlit panel is designed to drop into a T-bar grid ceiling, where the grid holds it and the void hides the driver.
• ⭐⭐ THIS KIT PUTS THE SAME PANEL ON A CEILING THAT HAS NO GRID AND NO VOID. ⭐ Concrete soffits, plasterboard over a slab, garage and basement ceilings, and retrofit commercial spaces where the ceiling cannot be opened.
• ⭐ THE SHEET LISTS THREE MOUNTING ROUTES for these panels: recessed into a standard grid, a plaster trim kit for plasterboard, or this surface/suspended kit. ⭐ Choosing between them is a ceiling question rather than a lighting one — the panel, its output and its colour switching are identical in all three.
• ⚠ THE 66 mm HEIGHT IS THE TRADE. ⭐ A recessed panel sits flush; this stands 66 mm below the ceiling, which is visible and which matters under a low soffit or where a door swings close to the ceiling line.

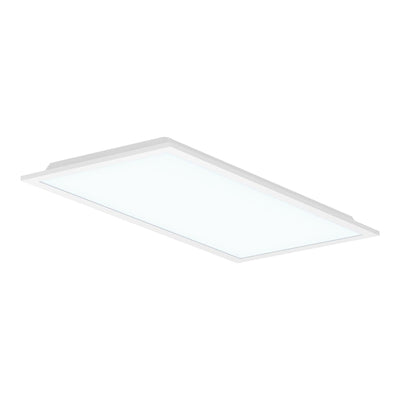

⭐ The panel it frames: 16 W, 1,300–1,500 lm, and a harmonic filter

• ⭐ The PANEL-BLT-306 is 16 W giving 1,300 lm at 3000 K, 1,500 at 4000 and 1,400 at 5700, with CRI ≥80 and a 120° beam. ⚠ Note 4000 K is the brightest, not 5700.
• ⭐⭐ THE SHEET NAMES A HARMONIC FILTER, WHICH IS UNUSUAL AND WORTH READING. ⭐ It reduces total harmonic distortion, which reduces flicker and strobing.
• ⭐ THAT MATTERS MORE IN THE ROOMS THESE PANELS GO IN THAN ALMOST ANYWHERE ELSE. ⭐ Offices and commercial spaces are where people sit under the same light for eight hours, and where flicker is associated with headaches and eye strain — and where rotating machinery makes strobing a safety question rather than a comfort one.
• ⭐ IT IS A GENUINE SPECIFICATION RATHER THAN MARKETING, and it is the reason to prefer this panel over a cheaper one in a workplace.

⚠ Backlit rather than edge-lit — and why that is the better construction

⭐ “Backlit” means the LEDs sit behind the diffuser across the whole panel area; edge-lit panels put them around the rim and use a light guide. ⭐⭐ BACKLIT PANELS ARE MORE EVEN, because every part of the diffuser has an emitter behind it rather than depending on light travelling sideways through acrylic. ⭐ They also age more evenly — an edge-lit panel's light guide can yellow unevenly and show as a gradient. ⚠ The trade is thickness: a backlit panel needs depth behind the diffuser, which is part of why this frame stands 66 mm proud.

⛔ IP20 and not dimmable

⭐ IP20 means indoor only, with no water protection. ⛔ Not for a covered outdoor area, a carpark soffit that gets wind-driven rain, or a wash-down space. ⭐ The sheet says dimmable = No, so do not put it on a dimmer circuit. ⚠ In an office that is rarely a loss; ⚠ in a space that wants daylight-linked dimming it rules the panel out and a DALI panel is the answer. ⭐ 50,000 hrs. ⚠ Note the sheet carries a warranty disclaimer — ask us for the current terms rather than reading the three-year figure as unconditional.

✅ What is published

Where it works

• ⭐⭐ Concrete soffits and slab ceilings — ⭐ no void needed.
• ⭐ Retrofit offices — ⭐ where the ceiling cannot be opened.
• ⭐ Workplaces — ⭐ the harmonic filter earns its keep.
• ⚠ Not under a low soffit — ⭐ it stands 66 mm proud.
• ⛔ Not outdoors or on a dimmer — ⚠ IP20, not dimmable.

Specifying it

Surface-mount frame kit for the PANEL-BLT-306 backlit panel. Frame 355 × 600 × 66 mm, white. Panel: 16 W at 240 V, 1,300/1,500/1,400 lm at 3000/4000/5700 K, CRI ≥80, 120° beam, IP20, not dimmable, 50,000 hrs, with a harmonic filter. 3-year warranty per the sheet's disclaimer. ⭐ ITS DIMENSIONS LOOK WRONG AGAINST ITS TITLE AND ARE NOT. We checked the whole panel-frame family before calling it a fault: length is the title's first figure rounded to the panel module (612→600, 1212→1200) and width is the second figure plus about 43 mm of flange (312→355, 612→655). So the record describes the FRAME'S own outside dimensions and the title names the PANEL size it takes — both correct, answering different questions. We record it because a buyer comparing the two would reasonably suspect the data. ⭐ THE FIGURE YOU NEED FOR THE CEILING IS THE FRAME'S: 355 × 600 mm, standing 66 mm proud.

Supplied and supported by Lights For You.
