Domus Lighting
SKU: 22150

DOMUS TRAK-3 CIRCUIT TRACK SM 2M

3 Years Warranty
3 Years Warranty
Color: Black
$101.95
$135.83
$101.95
Product Description
Product Description
x

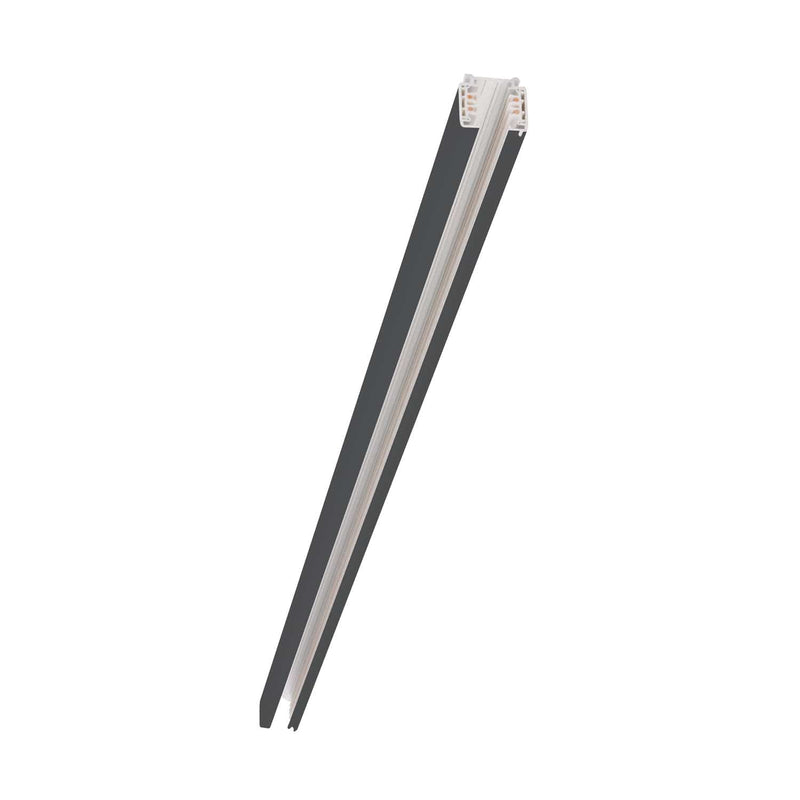

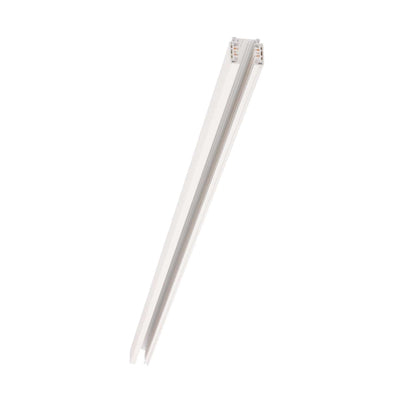

The Domus TRAK is a 2 metre three-circuit lighting track in black or white — 40 × 40 mm, surface mounted to a ceiling or wall, 240 V, IP20.

✅ “Three circuit” is the whole point, and it is worth understanding before you buy.

A single-circuit track switches every fitting on it together. A three-circuit track carries three independently switched supplies in the same extrusion, and each spotlight is set to one of them when it is clipped in.

  • ✅ One run of track, three lighting scenes. In a shop: the window on circuit one, the general wash on two, the feature display on three — from three switches, with no separate track runs.
  • ✅ Change the scheme without an electrician. Move a fitting along the track, or re-assign it to a different circuit, and the zoning changes. That flexibility is why retail and galleries use track.
  • ⚠ The fittings must be three-circuit adaptors to use it. A single-circuit head on a three-circuit track will not select. Tell us the heads you plan to use and we will confirm compatibility.

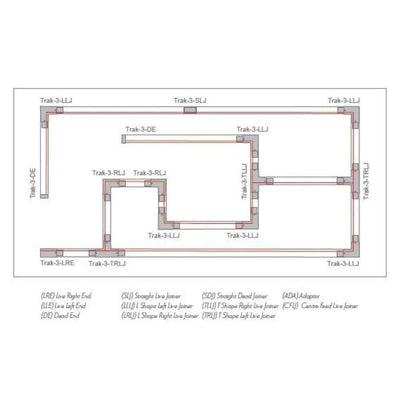

Planning a run

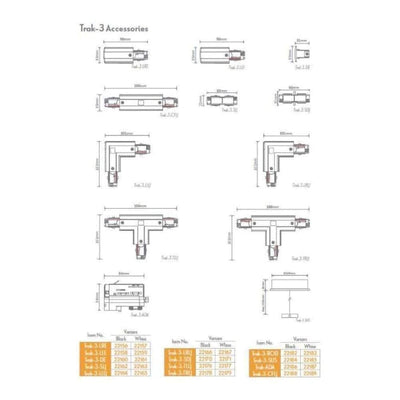

  • 2 metre lengths, joined with connectors to make longer runs. The TRAK range includes live and dead ends, straight joiners, centre feeds, and mini joiners — so a run can be fed from an end or from the middle.
  • Ceiling or wall mounted, and it can be suspended where the ceiling is high — ask us about the fixings.
  • ✅ Any required height, as Domus put it — a suspended run in a high space puts the fittings where the light is needed.
  • ⚠ Plan the feed position first. A centre feed halves the current in each direction and is usually the better choice on a long run.
⚠ What we cannot tell you — and on a track it matters

The record for this product holds the length, the section, the voltage and IP20, and nothing else. In particular it does not record:

  • The current rating per circuit — which is the figure that decides how many fittings you can put on a run. A track carrying twenty 35 W heads is a different proposition from one carrying six.
  • The maximum load, and whether it differs between the three circuits.
  • Which adaptors and heads are compatible beyond the Domus range.

Ask us before you design a run, and we will get the current rating from Domus. On a commercial fitout this is not a detail — it is the constraint the whole layout works within.

IP20 — indoor and dry

Indoor and dry locations only. Track is an open conductor system by design, so this is not a fitting for a bathroom, a covered outdoor area or anywhere damp. ⚠ It is also live along its length when energised: it should be positioned where it cannot be touched casually, and isolated before any head is added or moved.

40 × 40 mm section — slim enough to read as a line rather than a beam. Black or white: black reads as deliberate against a white ceiling and is the retail default; white nearly disappears. Warranty 3 years. Licensed electrician for the supply connection.

Where it works
  • Retail, galleries and showrooms — where the display changes and the lighting must follow.
  • Kitchens and open-plan homes, where flexibility is worth more than a fixed layout.
  • High spaces, suspended, with the fittings brought down to useful height.
  • ⛔ IP20 — indoor and dry only.
  • ⚠ Ask us for the current rating before designing a run.
Specifying it

2 metre three-circuit track, 40 × 40 mm, black or white, surface mounted to ceiling or wall, or suspended. 240 V, IP20 — indoor and dry only. Joined with the TRAK range of live and dead ends, straight and mini joiners, and centre feeds. ⚠ Three-circuit adaptors are required on the fittings. ⚠ The current rating per circuit and the maximum load are not recorded — ask us before designing a run. Warranty 3 years.

Supplied and supported by Lights For You.

Questions
What does "three circuit" mean?

The extrusion carries three independently switched supplies, and each spotlight is set to one of them when it is clipped in. So one run of track gives three lighting scenes — in a shop, the window on circuit one, the general wash on two, the feature display on three, from three switches with no separate track runs. A single-circuit track switches everything on it together.

Will my existing track heads fit?

Only if they are three-circuit adaptors. A single-circuit head on a three-circuit track will not select a circuit. Tell us the heads you plan to use and we will confirm compatibility.

How many fittings can I put on a run?

That depends on the current rating per circuit, and it is not recorded anywhere in our data — which on a track system is the figure the whole layout works within. A track carrying twenty 35 W heads is a different proposition from one carrying six. Ask us before you design a run and we will get the rating from Domus.

How do I make a longer run?

Join 2-metre lengths with the TRAK connectors — live and dead ends, straight joiners, mini joiners and centre feeds. Plan the feed position first: a centre feed halves the current in each direction and is usually the better choice on a long run.

Can it be suspended?

Yes — Domus note it can be installed at any required height, and in a high space a suspended run puts the fittings where the light is actually needed rather than at the ceiling. Ask us about the fixings.

Can it go in a bathroom or outside?

No. IP20, indoor and dry only — track is an open conductor system by design. It is also live along its length when energised, so it should be positioned where it cannot be touched casually, and isolated before any head is added or moved.

Black or white?

Black reads as deliberate against a white ceiling and is the retail default; white nearly disappears. At 40 by 40 mm the section is slim enough to read as a line rather than a beam either way.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKUsTRAK 3-Circuit 2M — 22150 (Black) · 22151 (White)
TypeThree-circuit lighting track — surface mounted or suspended
Circuits✅ THREE independently switched supplies in one extrusion
Length2,000mm — joined with TRAK connectors for longer runs
Section40 × 40mm
Current rating⛔ NOT RECORDED — this decides how many fittings fit on a run. Ask us
Maximum load⛔ NOT RECORDED — ask us before designing a run
Fittings⚠ Three-circuit adaptors required. Tell us your heads and we will confirm
MountingCeiling or wall, or suspended at any required height
AccessoriesLive and dead ends, straight and mini joiners, centre feeds
IP RatingIP20 — indoor and dry only. Live along its length when energised
Input Voltage240V AC — licensed electrician for the supply connection
Warranty3 Years

Variant specifications

CircuitTypical retail useSwitched
1Window and entry displayIndependently
2General floor washIndependently
3Feature or promotional displayIndependently
Data Sheet & Manual
Data Sheet & Manual
x

This browser does not support PDFs. Please download the PDF to view it: Download PDF.

Download Datasheet (PDF)
