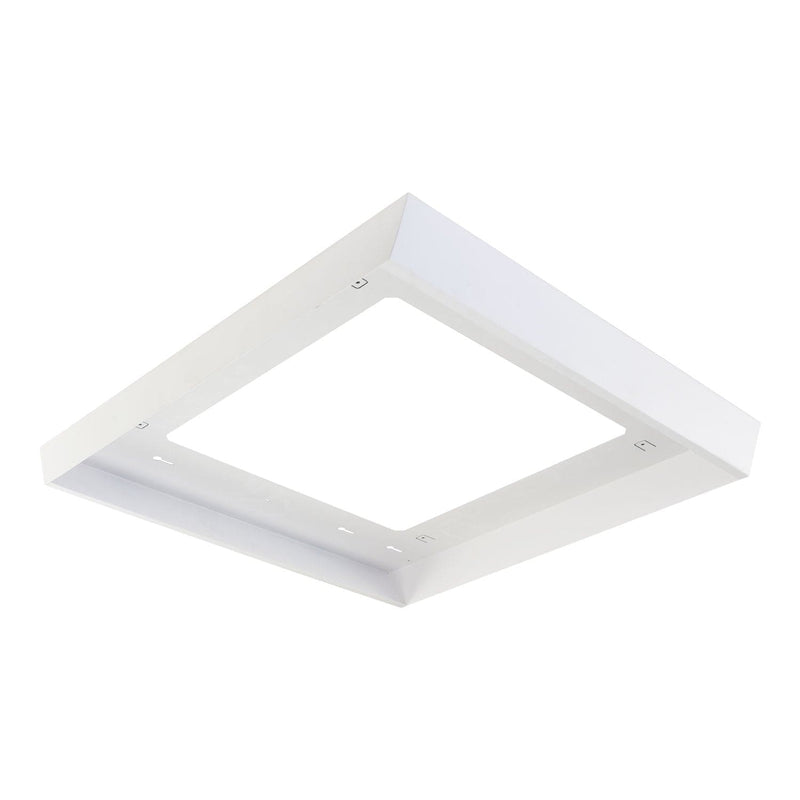

The Domus SM KIT-606 is a surface-mount frame for 612 × 612 mm backlit LED panels — 655 × 600 mm, 66 mm deep, in white.

⛔⛔ It is a frame. Its datasheet describes a panel.
  • ⭐ The sheet held against this product publishes 36 W, 3,145–3,500 lumens, CRI ≥80 and three colour temperatures.
  • ⭐ THIS PRODUCT IS A MOUNTING FRAME. ⭐ IT EMITS NO LIGHT. ⭐ It has a size, a depth and a finish. ⭐ The figures belong to the PANEL-606-BLT panel that the frame holds.
  • ⭐ WE CHECKED WHETHER THIS IS ISOLATED: 4 of 4 frame products in the catalogue hold a sheet publishing panel specifications. ⭐ And two of those four sheets are flagged verified.
  • ⭐⭐ WHICH IS THE SAME POINT THIS PROGRAMME FOUND ON THE SHADOW FAMILY, NOW ON A DIFFERENT ONE: the verification flag records that a sheet BELONGS to a SKU, not that its contents describe it. ⭐ A verified sheet still needs reading.
  • ⭐ WE HAVE PUBLISHED THIS PRODUCT AS WHAT IT IS — a frame — and quoted the panel's figures only as context for what it will hold.
⭐ What a surface-mount frame is actually for
  • ⭐ A backlit LED panel is designed to drop into a suspended grid ceiling, where the grid holds it. ⭐ IN A PLASTERBOARD OR CONCRETE CEILING THERE IS NO GRID — ⭐ so the panel has nothing to sit in.
  • ⭐⭐ A SURFACE-MOUNT FRAME LETS THE PANEL BE FIXED ON TO THE CEILING RATHER THAN INTO IT. ⭐ The panel sits inside the frame and the frame fixes to the surface, giving a 66 mm-deep box on the ceiling instead of a flush recess.
  • ⭐ THAT IS THE ONLY WAY TO USE A GRID PANEL IN A DOMESTIC OR CONCRETE CEILING — ⭐ and it is why the frame exists. ⭐ The alternatives are a plaster trim kit, which recesses the panel properly and costs more work, or wire suspension, which hangs it below the ceiling.
  • ⭐ THE VISUAL RESULT IS DIFFERENT AND WORTH PICTURING. ⭐ A recessed panel is flush and almost invisible when off; a surface-mounted one is a 66 mm-deep white box. ⭐ In an office ceiling that is unremarkable; in a home it reads as a commercial fitting.
⭐ 612 × 612 mm — check what you are matching

⭐ This frame suits 612 × 612 mm panels — the standard 600 mm grid module. ⭐ The frame's own outside dimension is 655 × 600 mm. ⚠ THOSE TWO NUMBERS ARE NOT SQUARE, WHICH IS WORTH NOTICING ON A PRODUCT DESCRIBED AS 612 × 612 — ⭐ it suggests the recorded dimensions may include packaging or a mounting flange on one axis only. ⭐ Before ordering, confirm the frame's finished face size with us if it has to align with anything.

⭐ What the panel it holds will do

⭐ For context rather than as this product's specification: the matching 606 panel is 36 W, 3,145 lm at 3000 K, 3,500 at 4000 K and 3,260 at 5700 K, CRI ≥80, switchable by a dip switch on the cable. ⭐ It uses a flicker-free driver with a harmonic filter, which matters in an office: standard drivers can produce a strobing effect that some people find genuinely uncomfortable over a working day. ⭐ It is not dimmable.

⛔ The warranty excludes diffuser discolouration

⭐ The sheet is explicit: the three-year warranty does not cover discolouration of the diffuser. ⭐⭐ THAT IS AN UNUSUALLY SPECIFIC EXCLUSION AND IT TELLS YOU SOMETHING. ⭐ Opal diffusers yellow slowly under UV and heat, and the exclusion is the manufacturer saying so plainly. ⭐ In practice it matters most where panels sit near windows or run continuously — ⭐ and it is a reason to buy all the panels for one space at once, so they age together rather than a replacement standing out against neighbours.

✅ What is published
Specification Value
⭐ What it is ⭐ A surface-mount FRAME — ⭐ it emits no light
⛔ Its datasheet describes ⛔ A panel — 36 W, lumens, CRI
⭐ Scope, measured ⭐ 4 of 4 frames do this — ⚠ 2 flagged verified
Suits ⭐ 612 × 612 mm backlit panels
Frame dimensions 655 × 600 mm · ⭐ 66 mm deep
⚠ Note ⚠ Not square — ⭐ confirm the finished face size
⭐ Why it exists ⭐ Lets a grid panel go on a plasterboard or concrete ceiling
⭐ Alternatives ⭐ Plaster trim kit (recessed) · ⭐ wire suspension
Panel it holds 36 W · 3,145–3,500 lm · CRI ≥80 · ⛔ not dimmable
⛔ Warranty 3 years — ⛔ excludes diffuser discolouration
Where it works
  • ⭐ Plasterboard and concrete ceilings — ⭐ where there is no grid.
  • ⭐ Offices and commercial fitouts.
  • ⭐ Retrofits — ⭐ no ceiling cutting required.
  • ⚠ Not in a home unless a 66 mm box is wanted — ⭐ it reads commercial.
  • ⛔ Not on its own — ⭐ the panel is a separate purchase.
Specifying it

Surface-mount frame for 612 × 612 mm backlit LED panels. 655 × 600 mm, 66 mm deep, white. Panel not included. ⛔⛔ THIS IS A MOUNTING FRAME AND ITS DATASHEET DESCRIBES A PANEL — 36 W, 3,145 to 3,500 lumens, CRI ≥80, on an accessory that emits no light. 4 of 4 frame products in the catalogue hold a sheet publishing panel specifications, and TWO OF THE FOUR ARE FLAGGED VERIFIED — the same point this programme found on the SHADOW family, now on a different one: the flag records that a sheet BELONGS to a SKU, not that its contents describe it. ⭐ WHAT THE FRAME ACTUALLY DOES is let a grid panel go on to a plasterboard or concrete ceiling, where there is no grid to hold it.

Supplied and supported by Lights For You.

Questions
Does this product produce light?

No — it is a mounting frame. Its datasheet publishes 36W, 3,145 to 3,500 lumens, CRI ≥80 and three colour temperatures, but those belong to the PANEL-606-BLT panel the frame holds. The frame has a size, a depth and a finish.

Is that a one-off mix-up?

No. We checked: 4 of 4 frame products in the catalogue hold a sheet publishing panel specifications, and two of those four sheets are flagged verified. That is the same point this programme found on the SHADOW family — the verification flag records that a sheet belongs to a SKU, not that its contents describe it. A verified sheet still needs reading.

What is a surface-mount frame for?

A backlit LED panel is designed to drop into a suspended grid ceiling, where the grid holds it. In a plasterboard or concrete ceiling there is no grid, so the panel has nothing to sit in. This frame lets the panel be fixed on to the ceiling rather than into it — the panel sits inside the frame and the frame fixes to the surface.

What are the alternatives?

A plaster trim kit, which recesses the panel properly and costs more work, or wire suspension, which hangs it below the ceiling. The surface-mount frame is the simplest of the three and requires no ceiling cutting.

What will it look like?

A 66mm-deep white box on the ceiling rather than a flush recess. In an office ceiling that is unremarkable; in a home it reads as a commercial fitting. Worth picturing before committing — a recessed panel is almost invisible when off and a surface-mounted one is not.

Do I need to check the dimensions?

Yes. The frame suits 612 x 612mm panels but its own recorded outside dimension is 655 x 600mm, which is not square on a product described as 612 x 612. That suggests the recorded figures may include packaging or a mounting flange on one axis only. Confirm the finished face size with us if it has to align with anything.

What does the warranty not cover?

Diffuser discolouration, stated explicitly. That is an unusually specific exclusion and it tells you something: opal diffusers yellow slowly under UV and heat, and the manufacturer is saying so plainly. It matters most where panels sit near windows or run continuously — and it is a reason to buy all the panels for one space at once, so they age together rather than a replacement standing out.
