Domus PLEX-COB-15-20M - 20M Roll Pack 15W LED Per Metre 640LED True Dotless Striplight IP54 24V - DRIVER REQUIRED

The Domus PLEX-COB-15-20M is a 24 V COB LED strip — 15 W per metre, 640 LEDs per metre, 180° beam, IP54, dimmable, 20 m roll.

⭐ Twenty metres at 15 W is 300 watts — and that is the figure people miss

• ⭐ Strip is specified per metre, so the total load stays invisible until someone adds it up. ⭐ Twenty metres at 15 W per metre is 300 W.
• ⚠ That is a substantial connected load for what reads as a decorative detail — ⭐ comparable to fifteen or twenty downlights. ⭐ It wants to be on the circuit schedule as a real number rather than as “strip lighting”.
• ⭐ And it does not arrive as one 300 W load. ⭐ At a 5 m single-feed maximum, twenty metres is FOUR separate runs — ⭐ so four drivers of about 90 W each, four feed points, four cable routes and four places for a driver to live.
• ⛔ None of that is stated on the listing. ⭐ The wattage is per metre, the roll length is in the title, and the run limit is in the family description — and nothing multiplies them together.

⭐ Where four drivers actually go

• ⭐ Grouping the drivers is almost always the right answer — ⭐ it costs more cable and saves every future service visit.
• ⚠ The driver is the part that fails first in any low-voltage installation, ⭐ and four of them sealed into a ceiling is four future problems.

⭐ 15 W across twenty metres — is it the right wattage?

⭐ Worth asking, because the answer is often no. ⭐ At 15 W per metre this is task-level light, and twenty metres of task-level light is a lot of building to be working on. ⚠ If most of the run is decorative — a cove, a shadow gap, a shelf line — the 5 W version gives a third of the load, a third of the drivers, and reaches further. ⭐ Mixing wattages across a job is entirely reasonable: task level where you work, low level where you do not. ⭐ Tell us what each run is doing.

✅ What is published

⛔ Made to order, cut to length

No lead time is published. Call our team to confirm. ⭐ We will.

Where it works

• ⭐ Multiple task runs across a fitout — ⭐ four from one roll.
• Kitchens, joinery and workbenches.
• ⭐ Where the drivers can be grouped.
• ⛔ Not with drivers in the cove — ⚠ 90 W will not fit.
• ⚠ Not at 15 W throughout if most of the run is decorative.

Specifying it

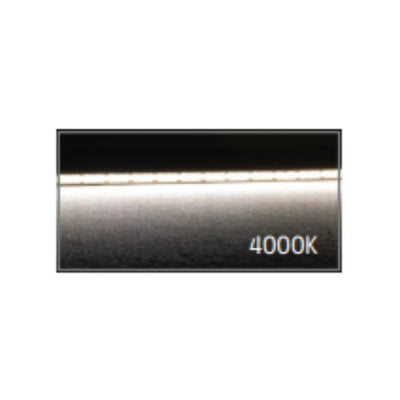

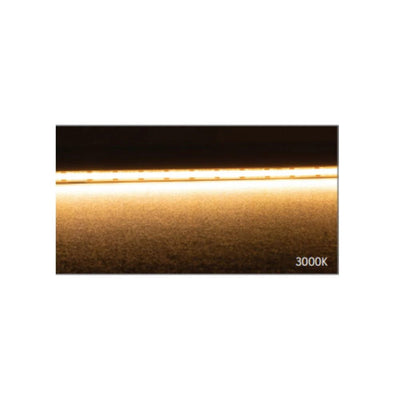

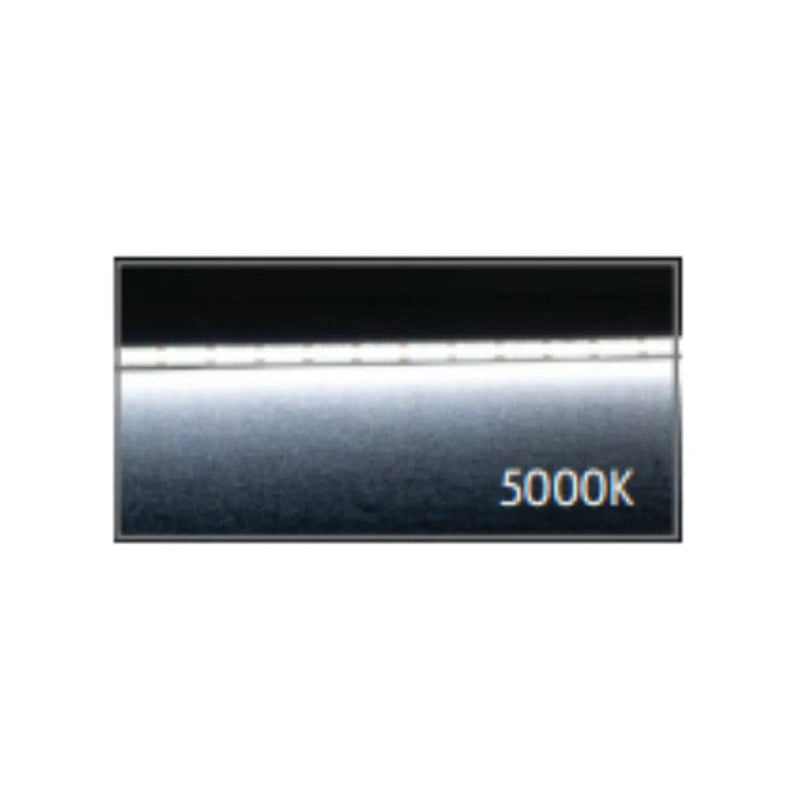

COB LED strip, 20 m roll. 15 W per metre at 24 V DC, 300 W total. 640 LEDs per metre, dotless. 3000 / 4000 / 5000 K. 180° beam. IP54. Dimmable. Four drivers at approximately 90 W. 3-year warranty. ⭐ TWENTY METRES AT 15 W IS 300 WATTS, AND THAT IS THE FIGURE PEOPLE MISS — strip is specified per metre so the total stays invisible until someone adds it up. It is comparable to fifteen or twenty downlights and belongs on the circuit schedule as a real number. ⭐ AND IT DOES NOT ARRIVE AS ONE LOAD: at a 5 m single-feed maximum this is FOUR runs, four drivers, four feed points and four places for a driver to live. ⭐ Group them in one cupboard.

Supplied and supported by Lights For You.

Download Datasheet (PDF)
