Domus Lighting Aluminium Profile Domus NOVA-24-Surface Mounting LED Profile
Domus Lighting Aluminium Profile Domus NOVA-24-Surface Mounting LED Profile Lights-For-You 22434 9330772224344
Domus Lighting Aluminium Profile Domus NOVA-24-Surface Mounting LED Profile Lights-For-You 22435 9330772224351
Domus Lighting Aluminium Profile Domus NOVA-24-Surface Mounting LED Profile Lights-For-You 22436 9330772224368
Domus Lighting Aluminium Profile Domus NOVA-24-Surface Mounting LED Profile
Domus Lighting Aluminium Profile Domus NOVA-24-Surface Mounting LED Profile Lights-For-You 22434 9330772224344
Domus Lighting Aluminium Profile Domus NOVA-24-Surface Mounting LED Profile Lights-For-You 22435 9330772224351
Domus Lighting Aluminium Profile Domus NOVA-24-Surface Mounting LED Profile Lights-For-You 22436 9330772224368
Loading... + Add to wishlist - Remove from wishlist
Domus Lighting
SKU: 22434

Domus NOVA-24-Surface Mounting LED Profile

Color Temprature Changing Technology
Color Temprature Changing Technology
Color: Aluminum
$24.95
$32.50
$24.95
Product Description
Product Description
x

The Domus NOVA-24 Surface Mounting Profile is a surface-mounted aluminium LED profile — 23.5 mm wide, 11 mm high, with a flat opal PMMA diffuser, in three finishes, 2.5 m.

⭐ Of the two NOVA-24 listings sharing one width, this is the one it fits
  • ⭐ Both the recessed and the surface NOVA-24 listing publish 23.5 mm. ⛔ They cannot both be right, because a recessed profile carries a FLANGE and a surface one does not.
  • ⭐ The evidence points at this listing being the correct one. ⭐ On the NOVA-17, the surface profile is 17 mm — exactly the number in the range name — and the recessed one is 23 mm, 6 mm wider for the flange. ⭐ Here 23.5 mm sits right beside the 24 in the range name, exactly as the pattern predicts for a SURFACE profile.
  • ⭐ So this page's dimension is usable, and the recessed listing's is not. ⚠ Offered as reasoning from the family pattern, not as a Domus statement.
  • ⭐ The practical upshot is reassuring: on a surface profile the width is not a routing dimension anyway. ⭐ You are fixing to a face, not cutting into one — ⭐ so even if it were a half-millimetre out, nothing is permanent. ⭐ It is the recessed version where the same uncertainty has consequences.
⭐ The widest Domus strip channel

⭐ At 24 mm nominal this is the widest of the Nova and Omega profiles — ⭐ against 17 mm on the Nova-17 and Omega-17, and 20 mm on the Nova-20. ⭐ Width decides which strip fits, and a wider channel accepts a wider strip — ⭐ which generally means more LEDs per metre, more output, and more choice of product. ⚠ The cost is a broader visible line, ⭐ which on a delicate shelf edge can read as heavy. ⭐ At 11 mm deep it also blends well, so a wide channel and good mixing come together here.

⛔ And the length is published as “2.5mm”

⭐ It is 2.5 metres. ⚠ Six Domus products carry the same unit error, and it is not consistent — ⭐ the BLOC-42 and CURVE profiles publish “2500mm” for the same real length.

⭐ This listing has the datasheet

⭐ NOVA-24 is sold under two product categories. ⭐ The listings with order codes and diffuser choices carry no datasheet; this one and its recessed twin do. ⭐ So the dimensions here are the authoritative ones — ⚠ which is exactly why the recessed twin sharing them is a problem.

✅ The specification
Specification Value
Installation ⭐ Surface mounted — no groove
⭐ Width ⭐ 23.5 mm — ⭐ credible for a surface profile
Height 11 mm — ⭐ good blending depth
Length ⭐ 2.5 m — ⚠ published as “2.5mm”
Diffuser Flat opal PMMA

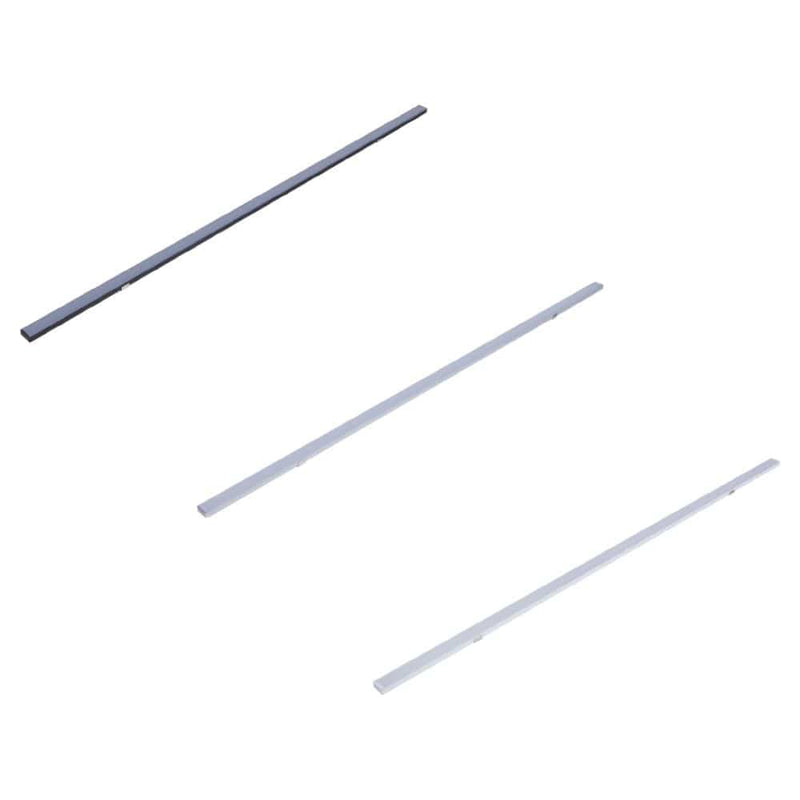

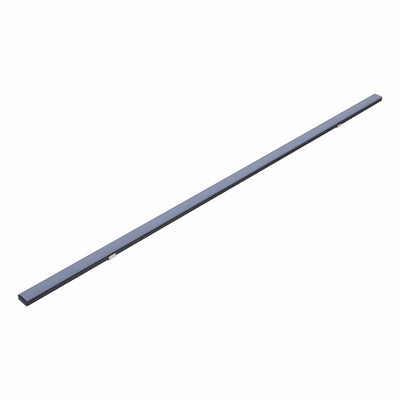

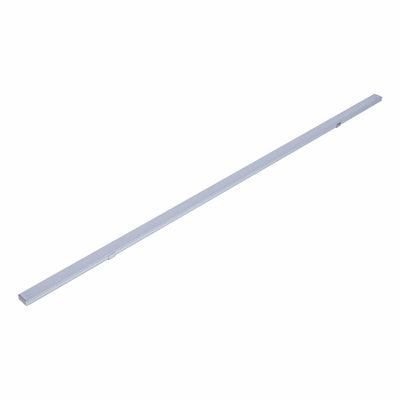

Material / finishes Aluminium — 22434 aluminium, 22435 black, 22436 white
⭐ Datasheet ⭐ Yes
Order code LP-2410-SM — ⚠ ⛔ not on this listing; ⭐ on its LED Profiles twin
⛔ Strip / driver ⛔ Neither included — Domus IP54 range
Where it works
  • ⭐ Where a wider, brighter strip is wanted — ⭐ the widest channel offered.
  • Under-bench, shelving and pelmets.
  • ⭐ Retrofit — no routing, so the width question is harmless here.
  • ⚠ Not on a delicate shelf edge — ⚠ the line reads broad.
  • ⛔ Not without a strip and driver.
Specifying it

Surface-mounted LED mounting profile. 23.5 mm wide × 11 mm high, 2.5 m. Flat opal PMMA diffuser. Aluminium, black or white. For the Domus IP54 strip range. Order code LP-2410-SM. ⭐ BOTH NOVA-24 LISTINGS PUBLISH 23.5mm AND THEY CANNOT BOTH BE RIGHT — and the evidence points at THIS one being correct. On the NOVA-17 the surface profile is 17mm, exactly the range name, with the recessed 6mm wider for the flange; here 23.5 sits right beside the 24, exactly as the pattern predicts for a surface profile. ✅ And on a surface profile the width is not a routing dimension anyway, so nothing here is permanent — it is the recessed version where the same uncertainty has consequences.

Supplied and supported by Lights For You.

Questions
Both NOVA-24 listings say 23.5mm — which is right?

This one, on the evidence. They cannot both be right, because a recessed profile carries a flange and a surface one does not. On the NOVA-17 the surface profile is 17mm — exactly the number in the range name — and the recessed one is 23mm, 6mm wider for the flange. Here 23.5mm sits right beside the 24 in the range name, exactly as the pattern predicts for a surface profile.

How much does that uncertainty cost me here?

Nothing, and that is the reassuring part. On a surface profile the width is not a routing dimension — you are fixing to a face rather than cutting into one, so even if it were half a millimetre out nothing is permanent. It is the recessed version where the same uncertainty has real consequences, because a groove cannot be un-cut.

Why choose the NOVA-24 over the narrower profiles?

Width. At 24mm nominal this is the widest of the Nova and Omega profiles, against 17mm on the Nova-17 and Omega-17 and 20mm on the Nova-20. Width decides which strip fits, and a wider channel accepts a wider strip — which generally means more LEDs per metre, more output, and more choice of product.

Is there a downside to the width?

A broader visible line, which on a delicate shelf edge can read as heavy. If the joinery is fine and the lit line is meant to be a detail rather than a feature, a Nova-17 or Omega-17 at 17mm sits better. If the run is doing real work, the wider channel is the better starting point.

Does it blend well?

Yes — at 11mm deep it sits in the useful middle for blending, so a wide channel and good mixing come together here. Depth is what turns a row of separate LEDs into a continuous line, and 11mm is enough for a normal-density strip behind an opal diffuser.

The length says 2.5mm — is that right?

No, it is 2.5 metres. Six Domus products carry the same unit error, and it is not even consistent: the BLOC-42 and CURVE profiles publish "2500mm" for the same real length. Two units in one field in one category.

Why buy from this listing rather than the other NOVA-24 pages?

For the datasheet. NOVA-24 is sold under two product categories: the listings with order codes and diffuser choices carry no datasheet, while this one and its recessed twin do. So the dimensions here are the authoritative ones — which is exactly why the recessed twin sharing them is a problem worth flagging.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKUsNOVA-24 Surface — 22434 Aluminium, 22435 Black, 22436 White
⭐ BOTH NOVA-24 LISTINGS PUBLISH 23.5mm⛔ And they cannot both be right
⭐ The evidence points at THIS oneSurface profiles have no flange
⭐ The NOVA-17 patternSurface 17mm = the range name · ⭐ recessed 23mm = +6mm flange
⭐ So 23.5 beside a "24"Is exactly what a SURFACE profile should read
✅ And here the uncertainty is harmless⭐ Width is not a routing dimension on a surface profile
⚠ It is the RECESSED versionWhere the same uncertainty cannot be un-cut
⭐ THE WIDEST DOMUS STRIP CHANNEL24mm nominal — ⭐ vs 20mm (Nova-20) and 17mm (Nova-17/Omega-17)
⭐ Width decides which strip fits⭐ Wider = more LEDs/m, more output, more product choice
⚠ The costA broader visible line — ⚠ reads heavy on a delicate shelf edge
⭐ 11mm deep⭐ Good blending — ⭐ wide channel and good mixing together
⛔ Length published as "2.5mm"⭐ It is 2.5 metres — ⚠ BLOC-42/CURVE say "2500mm"

Variant specifications

ProfileNominal widthStrip choice
⭐ Nova-24 (this)⭐ 24mm — widest⭐ Most options, most output
Nova-2020mmGood
Nova-17 / Omega-1717mm⚠ Narrowest
