Domus Lighting
SKU: 22430

Domus NOVA-24-Recessed LED Mounting Profile

L4Y Best Choice
L4Y Best Choice
Color Temprature Changing Technology
Color Temprature Changing Technology
Color: Aluminum
$24.95
$32.50
$24.95
Product Description
Product Description
x

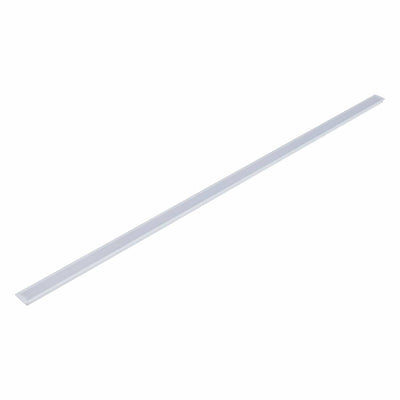

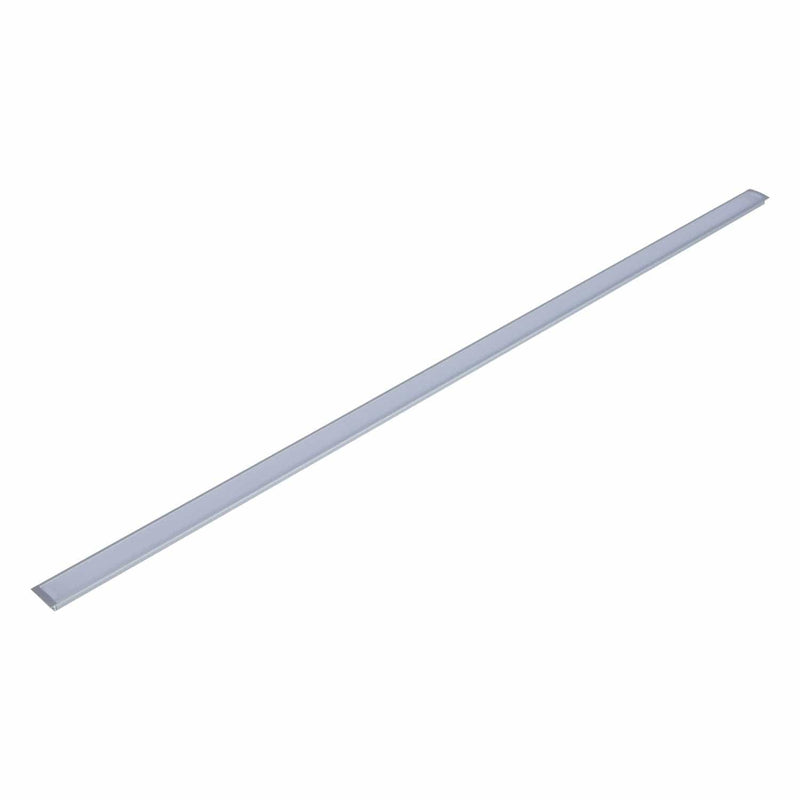

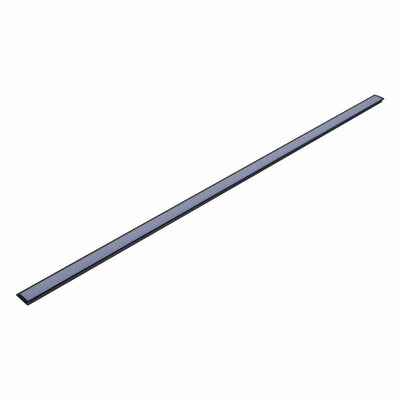

The Domus NOVA-24 Recessed Mounting Profile is a recessed aluminium LED profile — 11 mm deep, with a flat opal PMMA diffuser, in three finishes, 2.5 m.

⛔⛔ Its published width cannot be right — and here is how we know
  • ⭐ This recessed listing publishes 23.5 mm wide. So does the SURFACE listing. ⭐ Identical figures.
  • ⭐ They cannot both be correct, because a recessed profile has a FLANGE and a surface one does not. ⭐ The flange is a lip that sits on the finished surface and covers the edge of your groove — ⭐ so a recessed profile is always wider than its surface twin.
  • ⭐ The NOVA-17 pair proves the pattern: recessed 23 mm, surface 17 mm — a 6 mm difference, which IS the flange. ⭐ Applying the same 6 mm to the NOVA-24's 23.5 mm surface figure would put this recessed profile near 30 mm.
  • ⚠ Offered as reasoning, not as a published fact. ⭐ What we can say with confidence is that ONE of the two NOVA-24 figures is copied from the other, and 23.5 mm is much more likely to belong to the surface version — ⭐ because 23.5 sits right next to the 24 in the range name, exactly as the NOVA-17's surface profile is 17 mm.
  • ⛔ The consequence is a routed groove. ⚠ If you set out at 23.5 mm and the profile is really 30 mm across the flange, the groove is wrong and joinery cannot be un-cut. ⭐ Ask us for the recessed width before anything is routed. We will get it from Domus.
⛔ Two more faults in the same set of fields
  • ⛔ Its published length is “2.5mm”. ⭐ It is 2.5 METRES — metres entered as millimetres.
  • ⚠ And that error is not even consistent. ⭐ Within the same product category, the BLOC-42 and CURVE profiles publish “2500mm” for the same real length, while BLOC20, both NOVA-17s and both NOVA-24s publish “2.5mm”. ⚠ Two units, one field, one category — ⭐ which is harder to correct than a uniform error, because no single rule fixes it.
  • ⛔ A third, on a neighbouring listing: the BLOC-42 profile publishes a WIDTH of 2500 mm — ⭐ the length value copied into the width field.
✅ What is reliable here
Specification Value Confidence
Installation Recess mounted ✅ High
Height / depth ⭐ 11 mm ✅ High — ⭐ consistent with the 24×10 name
Diffuser Flat opal PMMA ✅ High
Material / finishes Aluminium — 22430 aluminium, 22431 black, 22432 white ✅ High
Length ⭐ 2.5 m — ⚠ published as “2.5mm” ✅ High once corrected
⛔ WIDTH ⛔ Published 23.5 mm — ⚠ likely the SURFACE figure ⛔ Low — ask us
Order code ⭐ LP-2410-RC — ⚠ ⛔ not on this listing; ⭐ on its LED Profiles twin ✅ High
⛔ Strip / driver ⛔ Neither included — ⭐ Domus IP54 strip range ✅ High
Where it works
  • Under-bench, joinery reveals and plasterboard — ⭐ where the flange hides the cut.
  • ⭐ Wider strip and higher output than the Nova-17.
  • Runs to 2.5 m in one piece.
  • ⛔ Not routed until we confirm the recessed width.
  • ⛔ Not without a strip and driver.
Specifying it

Recessed LED mounting profile, 11 mm deep, 2.5 m. Flat opal PMMA diffuser. Aluminium, black or white. For the Domus IP54 strip range. Order code LP-2410-RC. ⛔ ITS PUBLISHED WIDTH IS THE SAME AS THE SURFACE VERSION'S (both 23.5mm), AND TWO PROFILES THAT DIFFER BY A FLANGE CANNOT SHARE A WIDTH — on the NOVA-17 the same pair differ by 6mm, which is the flange. ⭐ So one figure is copied from the other, and 23.5mm most likely belongs to the surface version. ⛔ ASK US BEFORE ANYTHING IS ROUTED — a groove cut to the wrong width cannot be un-cut. ⚠ Its length is also published as "2.5mm" for 2.5 metres.

Supplied and supported by Lights For You.

Questions
Why do you say the published width is wrong?

Because this recessed listing and the surface listing publish identical figures — both 23.5mm — and they cannot both be correct. A recessed profile has a flange, a lip that sits on the finished surface and covers the edge of your groove; a surface profile does not. So a recessed profile is always wider than its surface twin.

How do you know how much wider?

From the NOVA-17 pair, which publishes both properly: recessed 23mm, surface 17mm — a 6mm difference, which is the flange. Applying the same 6mm to the NOVA-24's 23.5mm surface figure would put this recessed profile near 30mm. That is offered as reasoning rather than a published fact, but it shows the size of the gap.

Which of the two figures is more likely correct?

The surface one. 23.5mm sits right next to the 24 in the range name, exactly as the NOVA-17's surface profile is 17mm in a range called Nova-17. So the pattern suggests 23.5mm is the surface width and it has been copied onto the recessed listing.

What should I do before ordering?

Ask us for the recessed width, and do it before anything is routed. If you set out a groove at 23.5mm and the profile is really 30mm across the flange, the groove is wrong and joinery cannot be un-cut. It is the one dimension on this product with a permanent consequence.

Is the length really 2.5mm?

No — it is 2.5 metres. Metres have been entered as millimetres. What is more awkward is that the error is not consistent: within the same product category the BLOC-42 and CURVE profiles publish "2500mm" for the same real length, while BLOC20, both NOVA-17s and both NOVA-24s publish "2.5mm". Two units in one field in one category is harder to correct than a uniform error, because no single rule fixes it.

What can I rely on from this listing?

The depth of 11mm, which is consistent with the 24x10 name; the flat opal PMMA diffuser; the three finishes; and the 2.5m length once the unit is corrected. The width is the one figure to treat as unconfirmed. Everything else is straightforward.

Does it come with a strip?

No, and no driver. It is the profile with its diffuser. It is designed for the Domus IP54 strip range. Tell us the run lengths and we will quote profile, strip and driver together so nothing arrives without its partner.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKUsNOVA-24 Recessed — 22430 Aluminium, 22431 Black, 22432 White
⛔ PUBLISHED WIDTH 23.5mm⛔ IDENTICAL to the SURFACE listing — ⭐ they cannot both be right
⭐ Why notA recessed profile has a FLANGE; a surface one does not
⭐ The NOVA-17 pair proves the patternRecessed 23mm · surface 17mm — ⭐ a 6mm difference = the flange
⭐ So this recessed profile is likelyNear 30mm — ⚠ offered as reasoning, not published fact
⛔ THE CONSEQUENCEA groove routed to 23.5mm — ⚠ and joinery cannot be un-cut
⭐ ASK US BEFORE ROUTINGWe will get the recessed width from Domus
⛔ Length published as "2.5mm"⭐ It is 2.5 METRES
⚠ And the unit error is INCONSISTENTBLOC-42 and CURVE say "2500mm" — ⭐ same category, two units
⛔ A third fault nearbyBLOC-42 publishes width=2500mm — ⭐ the LENGTH copied into the width field
✅ ReliableDepth 11mm · flat opal PMMA diffuser · 3 finishes · 2.5m length
⛔ Strip / driverNeither included — Domus IP54 strip range

Variant specifications

RangeRecessed WSurface WDifference
✅ NOVA-1723mm17mm⭐ 6mm — the flange
⛔ NOVA-2423.5mm23.5mm⛔ ZERO — impossible
⭐ Expected≈30mm23.5mm⭐ 6mm
