Domus Lighting
SKU: 66100

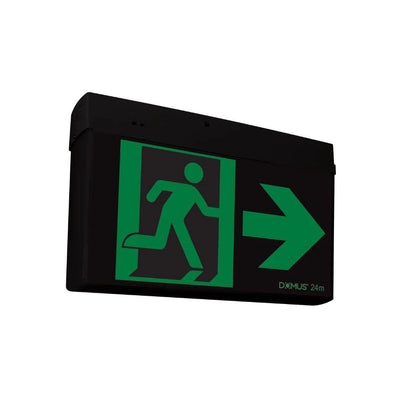

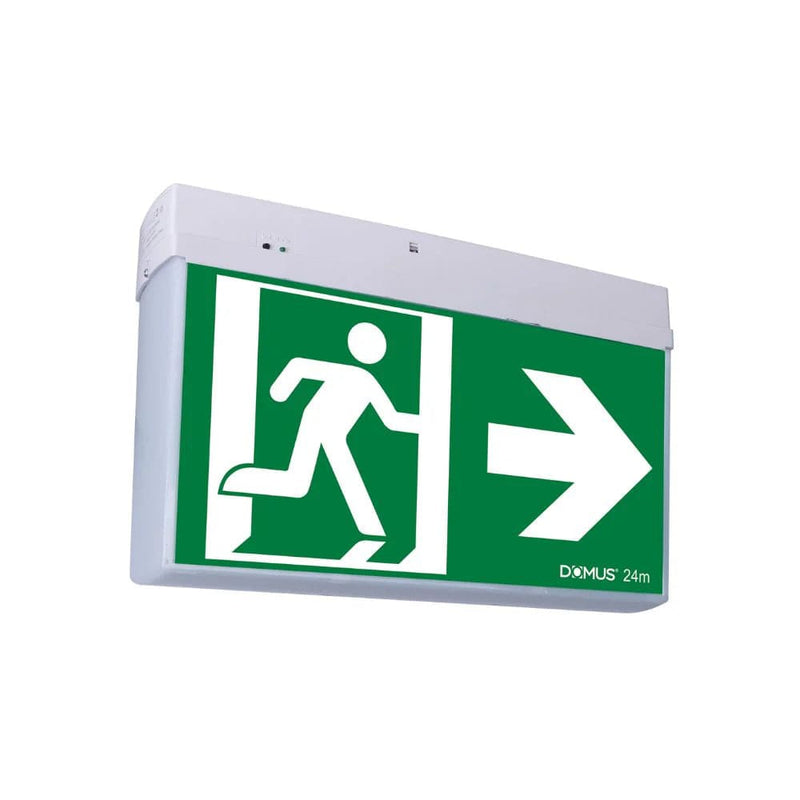

Domus EXIT-SM-24M - 3.5W LED Wall/Ceiling Surface Mounted Exit Sign

4 Years Warranty
4 Years Warranty
IP20 – perfect for indoor use
IP20 – perfect for indoor use
L4Y Best Choice
L4Y Best Choice
Beam angle for focused or wide lighting
120° Beam angle for focused or wide lighting
Color: Black
$99.00
$131.00
$99.00
Product Description
Product Description
x

The Domus EXIT-SM-24M is a 3.5 W surface-mounted LED exit sign in black or white — 24 metre viewing distance, a 2-hour LiFePO₄ battery, 53,000 hours, mountable on a wall, a ceiling or suspended, with single and double-sided decals included.

This is a life-safety fitting, so two things matter more than the usual.

  • The 24 metre viewing distance is the specification that decides how many you need and where they go. Under AS/NZS 2293 an exit must be visible from anywhere in the space it serves — so the sign's rated viewing distance sets the spacing, not the room's appearance.
  • The 2-hour battery duration is the AS/NZS 2293 requirement for emergency operation. It is not a bonus figure; it is the compliance one.

⚠ Your certifier signs off the installation, and the design of an emergency lighting scheme is their work, not a product page's.

✅ The features that make it quick to install and cheap to own
  • Single and double-sided decals are included. One product covers a corridor sign seen from both directions and a wall sign seen from one — you are not stocking two SKUs.
  • Quick-release decal fitting — the legend and arrows are applied on site, so the direction is decided at installation rather than at order.
  • Fast-fit mounting for wall, ceiling or suspended, from the same fitting.
  • ✅ The battery is replaceable, with an easy-replacement function. That is the important one: batteries are the part of an emergency fitting that fails first, and a sign whose battery can be changed has a much longer service life than one that has to be replaced whole.
  • LiFePO₄ rather than the older nickel chemistries — longer cycle life and better behaviour at the temperatures a ceiling void reaches.
⚠ A correction: it is 6000 K, not 5000 K

Our record says 5000 K; the datasheet says 6000 K. On an exit sign the colour is not a decorating choice — it is a cold white chosen so the green legend reads crisply at distance, and 6000 K is what it is.

The numbers, and what they are for
  • 3.5 W, 80 lm, SMD2835. A sign is not meant to light a room — 80 lm is enough to make the legend legible and nothing more.
  • 53,000 hours, which is longer than most fittings here and appropriate for something that runs continuously.
  • 0–40 °C operating range — ⚠ worth checking against a roof space or an unconditioned plant room in an Australian summer.
  • IP20 — indoor and dry only. ✅ For an undercover outdoor position, the EXIT-WPBOX is a weatherproof IP65 and IK10 housing made specifically for this sign. Ask us — the two products belong together and neither page said so.

⚠ The recorded warranty is four years, which does not match any other term in this catalogue — the others run one, three or five. We have published it as recorded and flagged it. Ask us to confirm before you quote a project, since on a compliance fitting the warranty period tends to be part of the specification.

Where it works
  • Apartment complexes, retail and commercial interiors.
  • Corridors and stairwells — double-sided decals for a corridor run.
  • Wall, ceiling or suspended, from the same fitting.
  • ✅ Undercover outdoor areas — with the EXIT-WPBOX housing.
  • ⚠ Spacing is set by the 24 m viewing distance and your certifier, not by appearance.
Specifying it

Surface-mounted LED exit sign, black or white, wall, ceiling or suspended. 3.5 W, 80 lm, 6000 K (our record said 5000 K), SMD2835, 53,000 hrs. 24 m viewing distance. 2-hour emergency duration, LiFePO₄ battery, easy replacement. Single and double-sided decals included, quick-release fitting. 240 V AC, 50 Hz, 0–40 °C, IP20 — indoor and dry only; use the EXIT-WPBOX for undercover outdoor positions. ⚠ Warranty recorded as 4 years — ask us to confirm. Installation and certification to AS/NZS 2293 remain with your certifier.

Supplied and supported by Lights For You.

Questions
How many do I need and where do they go?

That is set by the 24-metre viewing distance and by AS/NZS 2293, not by appearance — an exit must be visible from anywhere in the space it serves, so the rated viewing distance sets the spacing. Your certifier designs and signs off the scheme.

How long does the battery last in an outage?

Two hours, which is the AS/NZS 2293 requirement for emergency operation — it is the compliance figure rather than a bonus. The battery is LiFePO₄ and, importantly, replaceable with an easy-replacement function: batteries are the part of an emergency fitting that fails first, so a sign whose battery can be changed has a much longer service life than one replaced whole.

Is it 5000K or 6000K?

6000 K. Our record says 5000 and the datasheet says 6000, so we have published 6000. On an exit sign the colour is not a decorating choice — it is a cold white chosen so the green legend reads crisply at distance.

Do I need to order single or double sided?

Neither — both decals are included, and they are applied on site with a quick-release fitting. One product covers a corridor sign seen from both directions and a wall sign seen from one, and the direction is decided at installation rather than at order.

Can it go outside?

Not on its own — it is IP20, indoor and dry only. For an undercover outdoor position, the EXIT-WPBOX is a weatherproof IP65 and IK10 housing made specifically for this sign. The two products belong together, and neither page said so. Ask us and we will quote them as a pair.

Can it go in a hot roof space or plant room?

Check the temperature first — it is rated 0 to 40°C, which an unconditioned roof space or plant room can exceed in an Australian summer.

What is the warranty?

Recorded as four years, which does not match any other term in this catalogue — the others run one, three or five. We have published it as recorded and flagged it, and on a compliance fitting the warranty tends to be part of the specification, so ask us to confirm before you quote a project.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKUsEXIT-SM-24M — 66100 (Black) · 66101 (White)
TypeSurface-mounted LED exit sign — wall, ceiling or suspended
Viewing Distance24m — this sets the spacing under AS/NZS 2293
Emergency Duration2 hours — the AS/NZS 2293 requirement
BatteryLiFePO₄ — ✅ replaceable, easy-replacement function
Wattage3.5W SMD2835
Lumen Output80lm — enough to make the legend legible, no more
Colour Temperature6000K — ⚠ our record said 5000K
DecalsSingle AND double sided included; quick-release fitting
IP RatingIP20 — indoor and dry only. Use the EXIT-WPBOX for undercover outdoor
Operating Temp0–40°C — ⚠ check against a hot roof space
Lifespan53,000hrs
ComplianceInstallation and certification to AS/NZS 2293 remain with your certifier
Warranty⚠ Recorded as 4 Years — matches no other term here. Ask us to confirm

Variant specifications

PositionProductRating
Indoor corridor, stairwell, ceilingEXIT-SM-24M aloneIP20
Undercover outdoor — breezeway, car parkEXIT-SM-24M + EXIT-WPBOXIP65 and IK10
Data Sheet & Manual
