DOMUS CHESTER WALL BRACKET UP S-ARM

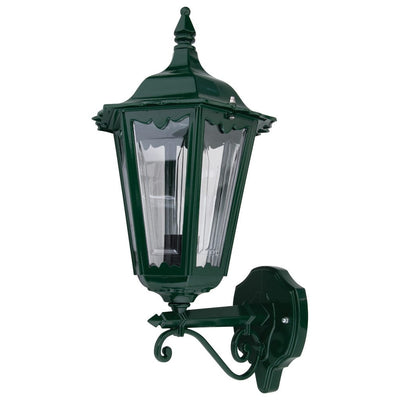

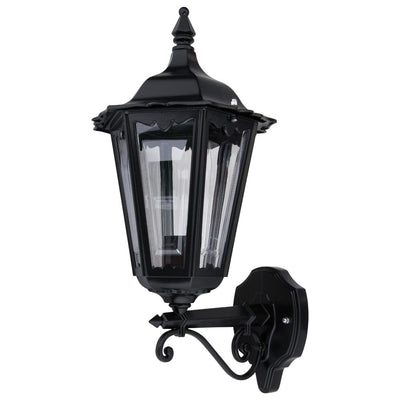

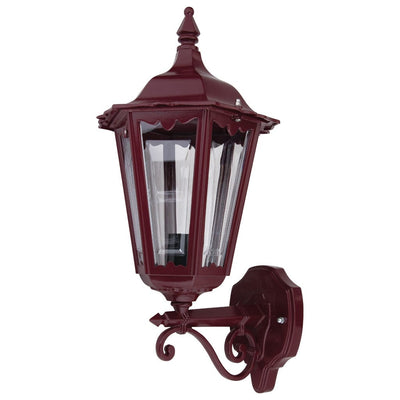

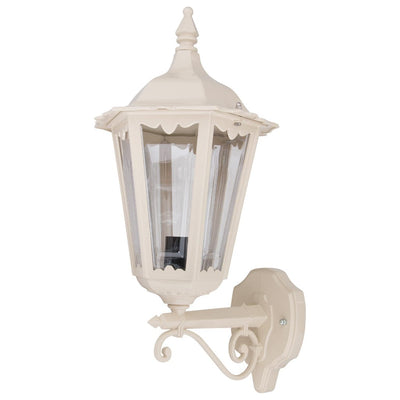

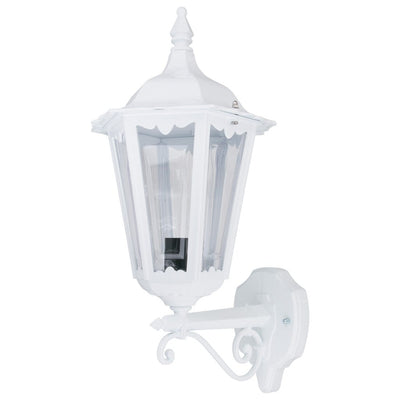

The Domus CHESTER wall bracket, straight arm facing up, holds the CHESTER lantern above a straight arm — 300 mm wide × 510 mm high × 305 mm projection, die-cast aluminium with a moulded acrylic lens, IP43, taking one B22 lamp.

⛔ This item is made to order

Domus builds this fitting to order and asks for up to 10 business days for production before it ships. It is not picked off a shelf.

• ⭐ That is the trade-off for the finish choice. The body is powder-coated in the colour you pick after you order, which is why the range offers five rather than one stocked colour.
• ⚠ Plan the lead time into the job. If it is needed for a handover, a settlement or a booked electrician, tell us the date when you order and we will confirm the production window with Domus.
• ⚠ Order the whole set together. On a property using several of these, a second order placed later starts its own ten days — and a later powder-coat batch is not guaranteed to match the first.

✅ The one CHESTER bracket that records everything

⭐ Two of the four record all three dimensions and two do not — and the two gaps sit on different fields, so between them the family is fully described even though the individual listings are not. ✅ This one you can specify straight off the page.

⭐ Straight arm, facing up: what that gives you

• ✅ The shallowest projection of the four at 305 mm, tied with its down-facing twin. ⭐ So this is the bracket for a narrow passage, a side entry or a doorway reveal — the curved arms go out to around 370 mm.
• ✅ The tallest of the four at 510 mm, which reads as upright and formal.
• ✅ Lantern above the arm, so light goes up the wall as well as down and the facade becomes part of the lit surface.
• ⚠ Less light lands directly below than a down-facing bracket. For a step or a threshold, choose down-facing.
• ⚠ The lens is angled towards the eye, so use a warm 9–11 W B22 LED rather than something bright and cool.

⭐ There is a replacement lens for every CHESTER, and no listing says so

The “Requires: Lamp GT-131 Wall Bracket Straight Arm Facing Up” line on the datasheet is not a parts list. GT-131 is the CHESTER series code — every traditional-lantern family in this catalogue has one, and each has a matching GTA replacement diffuser. For CHESTER that is the GTA-131 panel set, sold separately.

• ⭐ The acrylic is the part that fails on these lanterns. UV yellows and embrittles it over years while the cast aluminium body lasts decades.
• ⭐ So a tired-looking CHESTER is usually one needing a lens, not a new fitting — and on a property with several, that is the difference between a cheap refresh and a re-spend.
• ✅ Nothing extra is required to install this bracket. The sheet line is “Requires: Lamp” (true — the lamp is not included) plus the series code plus a diagram caption, run together.

⛔ A B22 holder with no maximum wattage

One B22 lamp, not included, and no maximum recorded anywhere in the CHESTER family. ✅ B22 LED at 9–11 W, warm, enclosed and damp rated, is what we would fit. ⚠ Ask us before anything above about 15 W.

⭐ Sixteen CHESTER listings, plus a CHESTER-LARGE range

Four wall brackets, a pillar mount, a post top, a chain pendant and nine post arrangements — and a CHESTER-LARGE family in the same style at a bigger scale, with its own GTA-161 diffuser. ⚠ No listing mentions any of the others.

Where it works

• Either side of a front door, as a formal matched pair.
• Narrow passages, side entries and doorway reveals, where 305 mm is the whole argument.
• Along a facade, repeated, with light washing up the wall.
• Matched with CHESTER pillar mounts and posts across a property.
• ⚠ Not for lighting a step — use a down-facing bracket.
• ⚠ IP43 — not a wash-down or coastal front-line position.

Specifying it

Wall bracket, straight arm, lantern facing UP. Die-cast aluminium with a moulded acrylic lens. IP43. 220–240 V AC. One B22 lamp — not included. 300 mm wide × 510 mm high × 305 mm projection — ✅ all three recorded. Made in Italy, assembled and powder-coated in Australia. Beige, Black, Burgundy, Green or White. ⚠ Warranty 1 year. ⛔ No maximum lamp wattage recorded, as across the whole CHESTER family. ⭐ A GTA-131 replacement acrylic panel set is sold separately — the acrylic is what fails on these lanterns.

Supplied and supported by Lights For You.

Download Datasheet (PDF)
