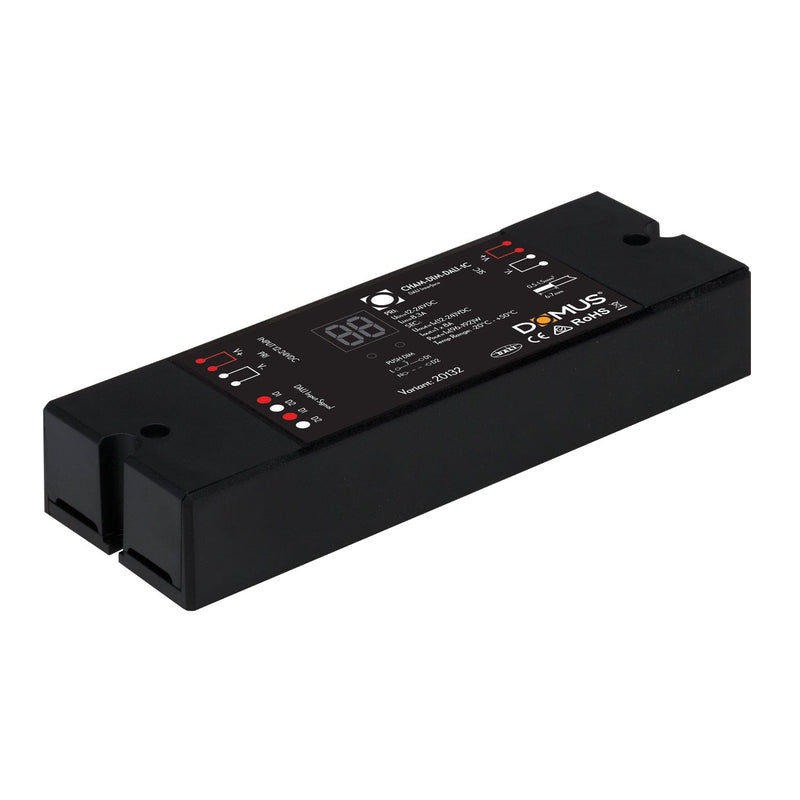

Domus Lighting LED Strip Controllers CHAM-DIM-DALI-1C - Master Universal 1 Channel Single
Domus Lighting LED Strip Controllers CHAM-DIM-DALI-1C - Master Universal 1 Channel Single
Loading... + Add to wishlist - Remove from wishlist
Domus Lighting
SKU: 20132

CHAM-DIM-DALI-1C - Master Universal 1 Channel Single

Color Temprature Changing Technology
Color Temprature Changing Technology
$177.81
$279.71
$177.81
Product Description
Product Description
x

The Domus CHAM-DIM-DALI-1C is a single-channel DALI and PUSH DIM interface for 12–24 V DC constant-voltage LED, handling 96 W at 12 V or 192 W at 24 V. 180 × 60 × 34 mm.

✅ One channel, single colour — and that is the whole point of it. Where the four-channel version of this interface handles RGB and RGBW, this one does one thing: dim a single-colour LED installation, cleanly, from a DALI system or a plain wall switch.

⚠ Our record flags this device as colour-changing. It cannot be — a single-channel interface has nothing to mix, and the product's own name says single colour. If you need colour control, the four-channel CHAM-DIM-DALI-4C is the one.

⚠ Its datasheet did not yield readable figures, so everything on this page comes from the product record and Domus's own description. Ask us if any figure is load-bearing on your specification and we will get the document from Domus.

DALI or push-dim — it does both
  • DALI — accepts a standard DALI signal from any automation system, with auto or manual addressing. ✅ Auto-addressing a floor of devices is far faster at commissioning than assigning each by hand.
  • PUSH DIM — a plain retractive wall switch dims it, with no DALI system at all.
  • ✅ That dual capability is the practical argument for this part. The same interface serves a commissioned commercial building and a house with one dimmer, so the hardware choice does not lock you into a control system.
  • ⚠ Push-dim needs a retractive (momentary) switch, not a standard toggle. Hold to dim, press to toggle. Tell your electrician at rough-in, because it is a different switch.
The load, and why the two figures differ
Supply Maximum load
12 V DC 96 W
24 V DC 192 W
  • ✅ The device is current-limited, not power-limited — at twice the voltage it carries twice the power for the same current.
  • ✅ That is another reason to run 24 V rather than 12 V wherever the strip allows: double the capacity from the same interface, and less voltage drop along the run.
  • ⚠ Work out the load before ordering. A 10 W/m strip at 24 V gives you roughly 19 metres on one interface; a 20 W/m strip roughly 9 m. Tell us the strip and the run and we will check it.
⚠ It is an interface, not a driver — despite the category
  • The chain is three parts: a constant-voltage driver converting mains to 12 or 24 V DC; this interface, which takes the control signal; and the LED strip.
  • ⛔ The driver and the strip are both separate purchases, and the driver must be sized above the load with headroom.
  • ✅ Tell us the whole chain and we will specify it together — that is the part people most often get wrong on a dimmed strip installation.
Single colour or four channel?
DALI-1C (this) DALI-4C
Channels 1 4
Handles Single colour Single colour (4 zones), tunable white, RGB, RGBW
Voltage 12–24 V DC 12–36 V DC
Load 96 W / 192 W 4 × (96–288 W)

✅ Choose this one where the installation is genuinely single colour — a cove, an under-cabinet run, a handrail. There is no advantage in paying for channels you will not use.

Installing it
  • 180 × 60 × 34 mm — it fits in a ceiling void, a joinery cavity or beside the driver.
  • ⚠ Keep it dry and accessible. Do not bury it behind sealed joinery; it is an electronic part and it will not outlive the building.
  • ⚠ No warranty term is recorded for this device, where its four-channel sibling records three years. Ask us and we will confirm it in writing.
Where it works
  • ✅ Single-colour LED strip installations at 12 or 24 V DC.
  • ✅ Buildings with a DALI system — addressed, auto or manual.
  • ✅ Houses and small jobs with no DALI at all — via PUSH DIM from a retractive switch.
  • ⛔ Not for colour control — use the four-channel version.
  • ⛔ Not a driver — a constant-voltage driver is still required upstream.
  • ⚠ Dry, accessible position; do not bury it.
Specifying it

CHAM-DIM-DALI-1C single-channel DALI and PUSH DIM interface. 180 × 60 × 34 mm. 12–24 V DC constant voltage. Maximum load 96 W at 12 V, 192 W at 24 V. One channel — single colour. Accepts a standard DALI signal from any automation system, with auto or manual addressing, or dims from a retractive wall switch via PUSH DIM.

⛔ A constant-voltage LED driver is required upstream and is not included, and the LED strip is separate again. ⚠ Our record flags this device as colour-changing; a single-channel interface has nothing to mix. ⚠ No warranty term is recorded — ask us and we will confirm it in writing. ⚠ Figures here are from the product record and Domus's description; the datasheet did not yield readable values.

Supplied and supported by Lights For You.

Questions
Can it control colour?

No — and our record says otherwise, which is why we are leading with it. This is a single-channel interface: it has one output and nothing to mix, and the product's own name says single colour. The colour-changing flag on its record simply does not apply. If you need colour control, the four-channel CHAM-DIM-DALI-4C handles RGB and RGBW.

Do I need a DALI system to use it?

No, and that is the practical argument for this part. It accepts a standard DALI signal from any automation system, and it also works in PUSH DIM mode, where a plain retractive wall switch dims it with no DALI system at all. So the same interface serves a commissioned commercial building and a house with one dimmer.

What kind of wall switch does push-dim need?

A retractive — also called momentary — switch, not a standard toggle. You hold it to dim and press it to toggle. It is a different switch from the usual one, so tell your electrician at rough-in rather than at fit-off, because changing it afterwards means opening the wall plate again.

How much strip can it run?

96 W at 12 V or 192 W at 24 V — the device is current-limited rather than power-limited, so at twice the voltage it carries twice the power for the same current. In practice a 10 W/m strip at 24 V gives you roughly 19 metres on one interface and a 20 W/m strip roughly 9 metres. Tell us the strip and the run and we will check it.

Is this a driver?

No, despite the category. It is an interface that takes the control signal and sits between a constant-voltage driver and the LED strip. The driver and the strip are both separate purchases, and the driver has to be sized above the load with headroom. Tell us the whole chain and we will specify it together — that is the part people most often get wrong on a dimmed strip installation.

Should I get this or the four-channel version?

This one where the installation is genuinely single colour — a cove, an under-cabinet run, a handrail. There is no advantage in paying for channels you will not use. The four-channel version handles tunable white, RGB and RGBW, or up to four separate single-colour zones, and it takes a wider 12–36 V input with much more load capacity.

What warranty does it have?

Not recorded on this listing, which is unusual — its four-channel sibling records three years. Ask us and we will confirm it with Domus in writing before you order rather than assume the same term applies.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKUsCHAM-DIM-DALI-1C — 20132
Type⚠ Single-channel DALI / PUSH DIM interface — NOT a driver, despite the category
Channels1 — single colour. ⛔ Our record's colour-changing flag cannot apply
Input voltage12–24V DC constant voltage
Maximum load96W at 12V · 192W at 24V — current-limited, so 24V doubles the capacity
ControlDALI addressed (auto or manual), or PUSH DIM from a ⚠ retractive wall switch
Dimensions180 × 60 × 34mm — ⚠ dry, accessible position; do not bury it
Driver⛔ A constant-voltage LED driver is required upstream — not included
LED strip⛔ Separate purchase
Four-channel versionCHAM-DIM-DALI-4C — RGB / RGBW, 12–36V, 4 × (96–288W)
Datasheet⚠ Did not yield readable figures — values here are from the record and supplier prose
Warranty⛔ Not recorded — ask us; the 4-channel version records 3 years

Variant specifications

DALI-1C (this)DALI-4C
Channels1 — single colour4
HandlesSingle colour onlySingle colour ×4 zones, tunable white, RGB, RGBW
Voltage12–24V DC12–36V DC
Load96W / 192W4 × (96–288W)
