DOMUS CHESTER WALL BRACKET DN S-ARM

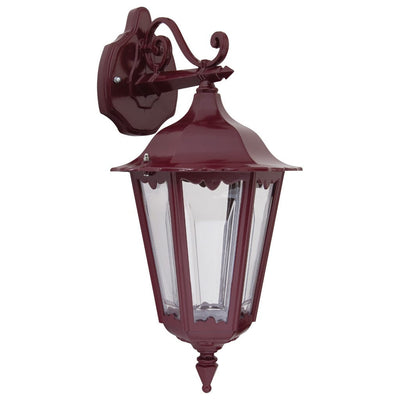

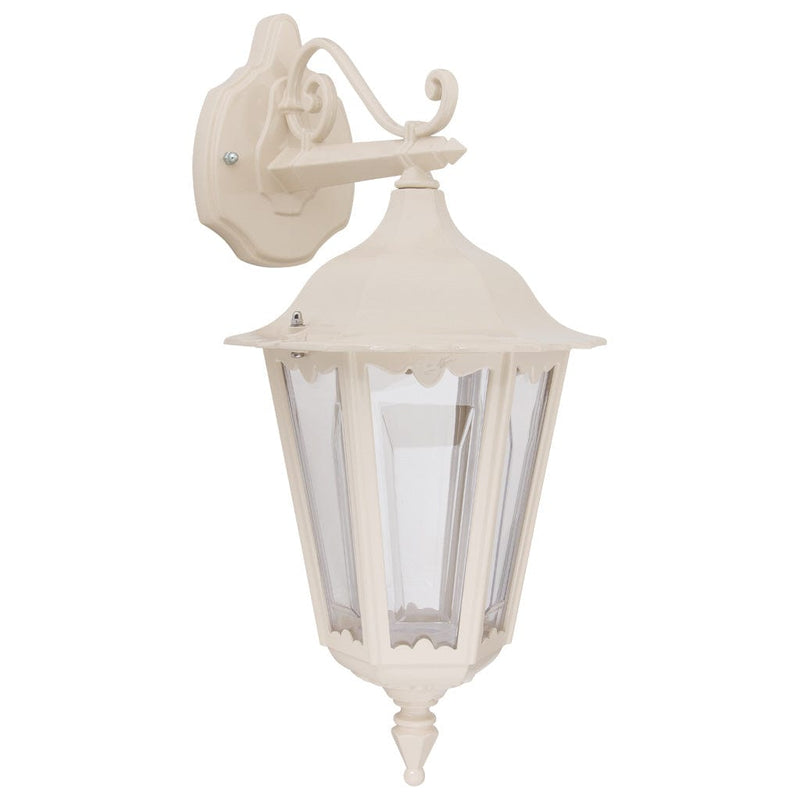

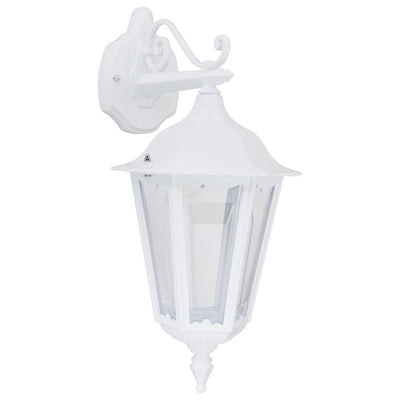

The Domus CHESTER wall bracket, straight arm facing down, holds the CHESTER lantern below a straight arm — 510 mm high × 305 mm projection, die-cast aluminium with a moulded acrylic lens, IP43, taking one B22 lamp.

⛔ This item is made to order

Domus builds this fitting to order and asks for up to 10 business days for production before it ships. It is not picked off a shelf.

• ⭐ That is the trade-off for the finish choice. The body is powder-coated in the colour you pick after you order, which is why the range offers five rather than one stocked colour.
• ⚠ Plan the lead time into the job. If it is needed for a handover, a settlement or a booked electrician, tell us the date when you order and we will confirm the production window with Domus.
• ⚠ Order the whole set together. On a property using several of these, a second order placed later starts its own ten days — and a later powder-coat batch is not guaranteed to match the first.

⛔ The width is not recorded — ⭐ but its twin almost certainly answers it

• ⛔ Our record holds a 510 mm height and a 305 mm projection and no width.
• ⭐ Its up-facing straight-arm twin records 300 mm at the identical 510 mm height and 305 mm projection — the same arm inverted.
• ⚠ So 300 mm is a well-supported estimate, and we have deliberately not put it in the dimensions. They are different products and something separates them; if that something is the width, the estimate is exactly wrong.
• ⭐ Ask us and we will measure one if the position is tight.

⚠ And its web address is just a number

The handle is “14978”. ⚠ Of 843 Domus products only two have a handle like that, and both are CHESTER. Searching “CHESTER wall bracket down” will not find this page by its address — bookmark it or ask us for it by name.

⭐ Choosing between the four CHESTER wall brackets

• ⭐ The straight arms are the taller pair at 510 mm and the shallower pair at 305 mm projection — so a straight arm is the better choice where wall clearance is tight and height is not.
• ⭐ Down-facing puts the lantern closer to what you are lighting — a door, a step, a path.
• ⚠ A straight arm reads more upright and formal than the curve. On a period frontage the curve usually suits better; on rendered modern brickwork the straight arm can look cleaner.

⛔ A B22 holder with no maximum wattage

• One B22 lamp, not included, no maximum recorded anywhere in the CHESTER family.
• ✅ B22 LED at 9–11 W, warm, enclosed and damp rated.
• ⭐ Down-facing beside a door puts the lantern near eye level, so warm and modest beats bright.

⭐ There is a replacement lens for it

The “Requires: Lamp GT-131…” line is the CHESTER series code, and the series has a GTA-131 replacement acrylic panel set. ⭐ The acrylic is the part that fails; the cast body lasts decades. ✅ Nothing extra is needed to install it.

Where it works

• Beside a front or garage door, where the shallower 305 mm projection helps.
• Narrow passages and side entries, where the curved arm’s 370 mm would be too much.
• Repeated along a boundary wall, matched with CHESTER posts at the gate.
• ⚠ Confirm the width with us if it is going between two fixed points.
• ⚠ IP43 — not a wash-down or coastal front-line position.

Specifying it

Wall bracket, straight arm, lantern facing DOWN. Die-cast aluminium with a moulded acrylic lens. IP43. 220–240 V AC. One B22 lamp — not included. 510 mm high × 305 mm projection. Made in Italy, assembled and powder-coated in Australia. Beige, Black, Burgundy, Green or White. ⚠ Warranty 1 year. ⛔ No width recorded; its up-facing twin records 300 mm at the same height and projection, which is our estimate rather than a measurement — ask us. ⛔ No maximum lamp wattage recorded. ⚠ Its web address is the SKU number. ⭐ A GTA-131 replacement acrylic panel set is sold separately.

Supplied and supported by Lights For You.
