Domus Lighting LED Downlights Pico-7 Mini Round Led Tricolour Downlight
Domus Lighting LED Downlights Pico-7 Mini Round Led Tricolour Downlight Lights-For-You 21665 9330772216653
Domus Lighting LED Downlights Pico-7 Mini Round Led Tricolour Downlight
Domus Lighting LED Downlights Pico-7 Mini Round Led Tricolour Downlight Lights-For-You 21665 9330772216653
Loading... + Add to wishlist - Remove from wishlist
Domus Lighting
SKU: 21666

Pico-7 Mini Round Led Tricolour Downlight

3 Years Warranty
3 Years Warranty
IP54 – dust and splashproof
IP54 – dust and splashproof
Beam angle for focused or wide lighting
24ᵒ Beam angle for focused or wide lighting
Color: BLACK
$103.95
$225.59
$103.95
Product Description
Product Description
x

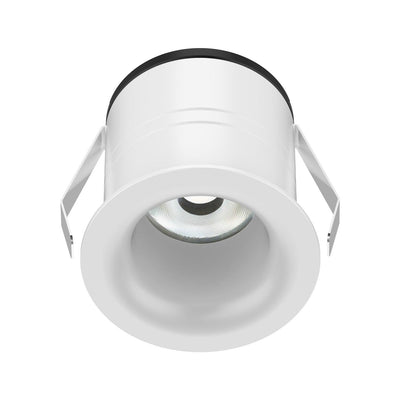

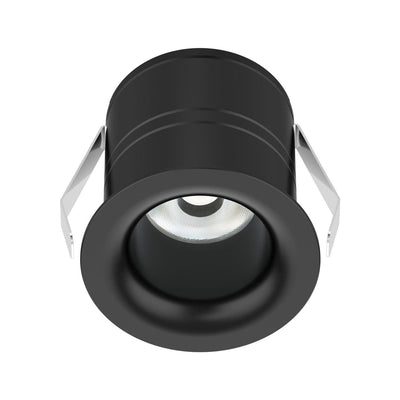

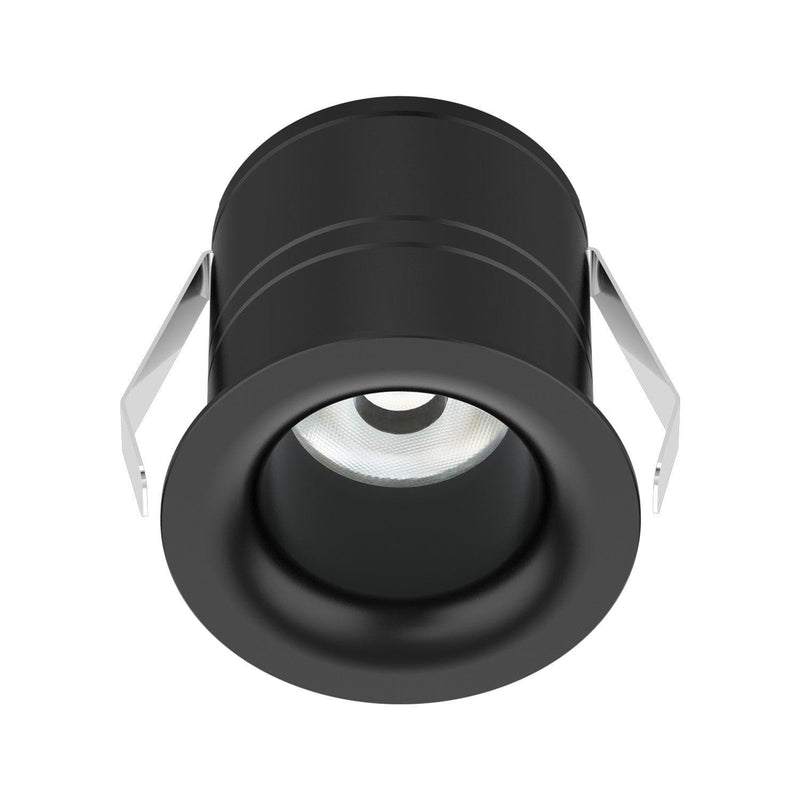

The Domus PICO-7 is a 7 W miniature deep-set downlight in black or satin white — a Ø50 mm cutout, 470 lumens, a 24° beam, IP54, in TRIO or DALI.

✅ The black model gives about 10% less light than the white one — the datasheet says so, and almost no manufacturer publishes this. A black reflector absorbs light a white one bounces. 470 lm from the white; roughly 425 from the black. Choose the finish for the look, but do the arithmetic on the figure that matches what you are buying.

The bigger PICO — and when to step up from the 3 W
PICO-3 PICO-7
Cutout Ø35 mm Ø50 mm
Output 210 lm 470 lm
Frame Fixed or tilt Deep set
IP IP40 IP54 from the underside
  • ✅ More than double the light for 15 mm more hole. If the 3 W was not enough for a display or a shelf, this is the answer.
  • ✅ Deep set rather than tilt — the source is recessed, so this one is the anti-glare member of the family. It aims straight down and does not swivel.
  • ✅ IP54 rather than IP40 — dust protection, which matters in a joinery void or a kitchen where a small aperture collects grease and dust.

⚠ Our record lists this as a tilt fitting. The datasheet describes the 7 W as the deep-set frame; it is the 3 W that comes fixed or tilt. If you need to aim it, ask us before ordering.

The 24° beam — still the tightest here

Both PICOs share it, and at 470 lm it becomes genuinely useful:

  • Display and cabinet lighting — a contained pool on the object with very little spill onto the shelf around it. That contrast is what makes a display read.
  • Highlighting a picture, a sculpture, a bottle, a bench section.
  • Tight-line wall washing — place them close to the wall so the narrow cones overlap into a band.
  • ⚠ Still not room lighting. 470 lm at 24° is an accent; for general light, the BOOST or DECO.
⚠ IP54, from the underside

The datasheet qualifies it: the IP54 applies from the underside once the fitting is installed into the ceiling. The face is protected; the back is not.

  • ✅ Fine in a kitchen, a joinery void, a bathroom outside the shower zone.
  • ⛔ Not where water can reach behind it.
The numbers
  • 390 lm at 3000 K, 470 lm at 4000 K, 460 lm at 5700 K (white model; black about 10% lower).
  • 67 lm/W, CRI ≥80, COB, 50,000 hours.
  • ⚠ The top setting is 5700 K, colder than the 5000 K many expect, set before installation.
  • Fully dimmable with a suitable dimmer, supplied with a micro-sized LED driver and flex-and-plug — ✅ which matters, because a full-size driver defeats the point of a small fitting when you are working inside joinery.
TRIO or DALI

TRIO for a house, dimming from a suitable dimmer. DALI for addressable control on a bus — ⛔ it will not dim at all without a DALI system.

Where it works
  • Display, cabinet and shelf lighting — where the 3 W was not enough.
  • Joinery, bulkheads, plinths and reveals.
  • Kitchens — IP54 keeps dust and grease out of a small aperture.
  • ⚠ It is deep set, not tiltable — ask us if you need to aim it.
  • ⚠ Not room lighting — 470 lm at 24°.
Specifying it

Cutout Ø50 mm, deep-set frame, black or satin white. 7 W COB LED giving 390 / 470 / 460 lm at 3000 K / 4000 K / 5700 K switchable — ✅ the black model is about 10% lower. CRI ≥80, 24° beam, 50,000 hrs. Fully dimmable with a suitable dimmer; micro LED driver and flex-and-plug supplied. TRIO or DALI. 220–240 V AC, IP54 from the underside once installed. Warranty 3 years.

Supplied and supported by Lights For You.

Questions
Is the black one dimmer than the white?

Yes, by about 10% — the datasheet says so, and almost no manufacturer publishes it. A black reflector absorbs light a white one bounces, so the white gives 470 lumens at 4000 K and the black roughly 425. Choose the finish for the look, but use the figure that matches what you are buying.

PICO-3 or PICO-7?

The 7 gives more than double the light — 470 lumens against 210 — for 15 mm more hole, Ø50 against Ø35. It is also the deep-set, anti-glare member of the family, and IP54 rather than IP40. If the 3 W was not enough for a display or a shelf, this is the answer.

Does it tilt?

The datasheet describes the 7 W as the deep-set frame — it is the 3 W that comes fixed or tilt. Our record lists this one as a tilt fitting, which looks like a field copied from the sibling. If you need to aim it, ask us before ordering.

Can I light a room with them?

No. 470 lumens through a 24° beam is accent lighting — a contained pool on the object with very little spill, which is what makes a display read. For general light use the BOOST or DECO.

Can it go in a kitchen or bathroom?

The IP54 applies from the underside once the fitting is installed into the ceiling — the face is protected, the back is not. That is fine in a kitchen, a joinery void or a bathroom outside the shower zone, and not where water can reach behind it. The dust protection matters in a kitchen, where a small aperture collects grease.

Where does the driver go?

It comes with a micro-sized LED driver, which matters — a full-size driver defeats the point of a small fitting when you are working inside joinery. You still need somewhere for it to sit, so plan that with your cabinetmaker.

TRIO or DALI?

TRIO for a house — it dims from a suitable dimmer. DALI is addressable control on a two-wire bus and will not dim at all without a DALI system and controller.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKUsPICO-7 — 21581/21582 (TRIO, Black/White) · 21666/21665 (DALI, Black/White)
TypeMiniature DEEP-SET COB downlight — display, cabinet and accent
CutoutØ50mm — the PICO-3 is Ø35mm
Wattage7W COB LED
Lumen Output390lm @3000K · 470lm @4000K · 460lm @5700K
⚠ Finish and output✅ The BLACK model is about 10% LOWER than the white — disclosed by Domus
Efficacy67 lm/W
Beam Angle24° — the tightest here. Accent, not room lighting
FrameDeep set — ⚠ our record says "Tilt", which describes the 3W sibling
Colour Temperature3000K / 4000K / ⚠ 5700K switchable, set before installation
Colour RenderingCRI ≥80
IP RatingIP54 FROM THE UNDERSIDE once installed — the back is not protected
DimmingFully dimmable with a suitable dimmer; MICRO driver and flex-and-plug supplied
ControlTRIO or DALI
Warranty3 Years

Variant specifications

FittingCutoutOutputFrame
PICO-7 — this oneØ50mm470lmDeep set, anti-glare
PICO-3Ø35mm210lmFixed or tilt
