Domus Lighting LED Downlights Pico-3 Dimmable Mini Round Tricolour Downlight
Domus Lighting LED Downlights Pico-3 Dimmable Mini Round Tricolour Downlight Lights-For-You 21662 9330772216622
Domus Lighting LED Downlights Pico-3 Dimmable Mini Round Tricolour Downlight
Domus Lighting LED Downlights Pico-3 Dimmable Mini Round Tricolour Downlight Lights-For-You 21662 9330772216622
Loading... + Add to wishlist - Remove from wishlist
Domus Lighting
SKU: 21575

Pico-3 Dimmable Mini Round Tricolour Downlight

3 Years Warranty
3 Years Warranty
IP40 – basic solid object protection
IP40 – basic solid object protection
L4Y Best Choice
L4Y Best Choice
Beam angle for focused or wide lighting
24ᵒ Beam angle for focused or wide lighting
Dimmable
Dimmable
Color: BLACK
$45.90
$60.59
$45.90
Product Description
Product Description
x

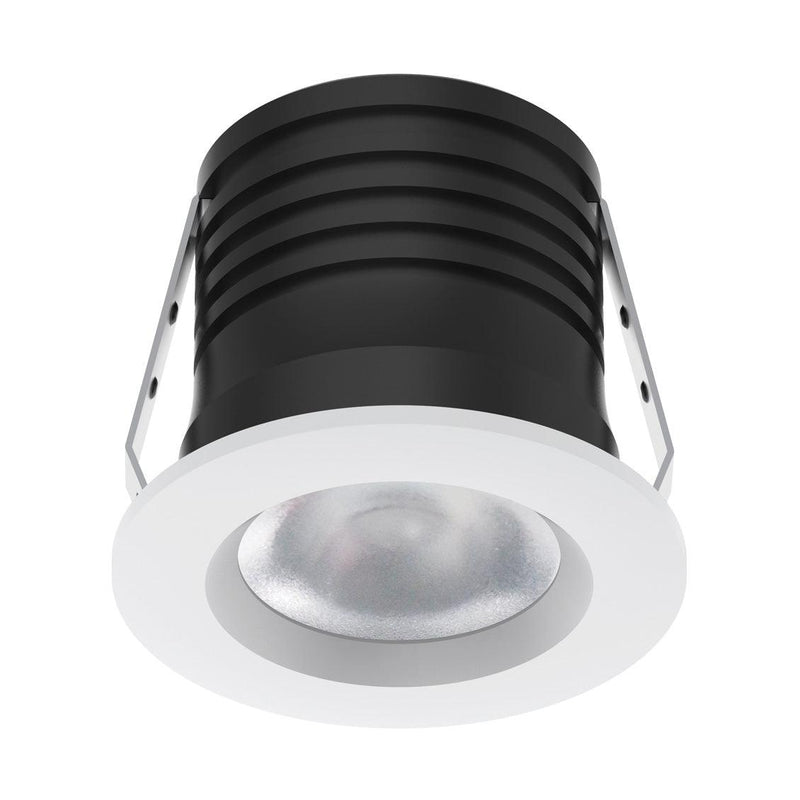

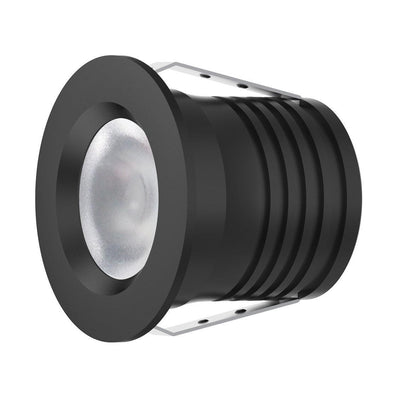

The Domus PICO-3 is a 3 W miniature downlight in black or satin white — a Ø35 mm cutout, a 24° beam, switchable 3000 K / 4000 K / 5700 K, dimmable, in TRIO or DALI.

✅ The black model gives about 10% less light than the white one. The datasheet says so plainly, and almost no manufacturer publishes this.

It is real physics — a black reflector absorbs light a white one bounces — and it matters if you are counting lumens across a run of cabinet or display lighting, or mixing the two finishes in one space. 210 lm from the white; roughly 190 from the black. Choose the finish for the look, but do the arithmetic on the white figure only if you are buying white.

A Ø35 mm cutout — this is a different class of fitting

Every other downlight in this catalogue takes a hole between 75 and 170 mm. The PICO takes 35 mm, and that opens up places a normal downlight cannot go:

  • Inside cabinetry — the underside of an overhead cupboard, a display shelf, a wardrobe, a bookcase.
  • Joinery and bulkheads, where a 90 mm hole would weaken or dominate the panel.
  • Stair risers, plinths and reveals.
  • Ceilings where a run of small apertures is wanted instead of a row of large ones.
The 24° beam — what it is for

This is a narrow, deliberate beam — the tightest in this catalogue:

  • Display and cabinet lighting — a contained pool on the object, and very little spill onto the shelf around it. That contrast is what makes a display read.
  • Wall washing in a tight line — the datasheet names this use, and with a 24° beam it means placing them close to the wall so the cones overlap into a continuous band.
  • Highlighting a single object, a picture, a bottle, a sculpture.
  • ⚠ It is not room lighting. 210 lm at 24° will not light a space; you would need a great many. For general light, use the BOOST or DECO.
Fixed or tilt, and the 7 W sibling
  • 3 W fixed — straight down, nothing to knock out of alignment. Right inside cabinetry.
  • 3 W tilt — aimable, for display and wall washing.
  • 7 W deep-set — a larger sibling for the same family of uses when 210 lm is not enough. Ask us.
The numbers
  • 180 lm at 3000 K, 210 lm at 4000 K and 5700 K (white model; black about 10% lower).
  • 70 lm/W, CRI ≥80, COB, 50,000 hours.
  • IP40 — dust protected, no water rating. Indoor and dry.
  • Fully dimmable with a suitable dimmer, supplied with a micro-sized LED driver and flex-and-plug.

✅ The micro driver is the practical detail — a full-size driver defeats the point of a 35 mm fitting when you are working inside a cabinet. ⚠ You still need somewhere for it to sit; plan that with your cabinetmaker.

Where it works
  • Cabinet, display and shelf lighting — the job it was made for.
  • Joinery, bulkheads, stair risers, plinths and reveals.
  • Tight-line wall washing, placed close to the wall.
  • ⚠ Not room lighting — 210 lm at 24°.
  • ⚠ IP40, indoor and dry only.
Specifying it

Cutout Ø35 mm, black or satin white, fixed or tilt frame. 3 W COB LED giving 180 / 210 / 210 lm at 3000 K / 4000 K / 5700 K switchable — ✅ the black model is about 10% lower. CRI ≥80, 24° beam, 50,000 hrs. Fully dimmable with a suitable dimmer; micro LED driver and flex-and-plug supplied. TRIO or DALI. 220–240 V AC, IP40 — indoor and dry only. A 7 W deep-set version is available. Warranty 3 years.

Supplied and supported by Lights For You.

Questions
Is the black one really dimmer than the white?

Yes, by about 10% — the datasheet says so, and almost no manufacturer publishes this. A black reflector absorbs light a white one bounces. So the white gives 210 lumens at 4000 K and the black roughly 190. Choose the finish for the look, but if you are counting lumens across a run, or mixing finishes in one space, use the right figure.

What is a 35mm downlight for?

Places a normal downlight cannot go. Inside cabinetry — the underside of an overhead cupboard, a display shelf, a wardrobe. Joinery and bulkheads where a 90 mm hole would weaken or dominate the panel. Stair risers, plinths and reveals. Or ceilings where you want a run of small apertures rather than a row of large ones.

Can I light a room with them?

No. 210 lumens through a 24° beam is display and accent lighting — you would need a great many to light a space, and it would still look wrong. For general light use the BOOST or DECO.

How do I use the 24° beam for wall washing?

Place them close to the wall so the narrow cones overlap into a continuous band. The datasheet names wall washing as an intended use, but with a beam this tight the spacing and the setback are what make it work.

Fixed or tilt?

Fixed for inside cabinetry, where nothing should be knocked out of alignment. Tilt for display and wall washing, where aiming is the point. There is also a 7 W deep-set sibling for the same kinds of use when 210 lumens is not enough — ask us.

Where does the driver go?

It comes with a micro-sized LED driver, which is the practical detail — a full-size driver defeats the point of a 35 mm fitting when you are working inside a cabinet. You still need somewhere for it to sit, so plan that with your cabinetmaker.

Can it go in a bathroom?

No — IP40 is dust protected with no water rating, so indoor and dry only.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKUsPICO-3 — 21575/21576 (TRIO, Black/White) · 21662/21661 (DALI, Black/White)
TypeMiniature COB downlight — cabinet, display and accent
CutoutØ35mm — the smallest in this catalogue
Wattage3W COB LED
Lumen Output180lm @3000K · 210lm @4000K and @5700K
⚠ Finish and output✅ The BLACK model is about 10% LOWER than the white — disclosed by Domus
Beam Angle24° — the tightest here. Display and accent, not room lighting
Colour Temperature3000K / 4000K / ⚠ 5700K switchable
Colour RenderingCRI ≥80
FrameFixed or tilt — a 7W deep-set version is also available
DimmingFully dimmable with a suitable dimmer; MICRO driver and flex-and-plug supplied
IP RatingIP40 — indoor and dry only
ControlTRIO or DALI
Lifespan50,000hrs
Warranty3 Years

Variant specifications

FinishOutput @4000KNote
Satin White210lmThe brighter of the two
Black~190lm✅ About 10% lower — disclosed by Domus, rare to see published
