3 Years Warranty
240 lm
Learn More!!
Product Description

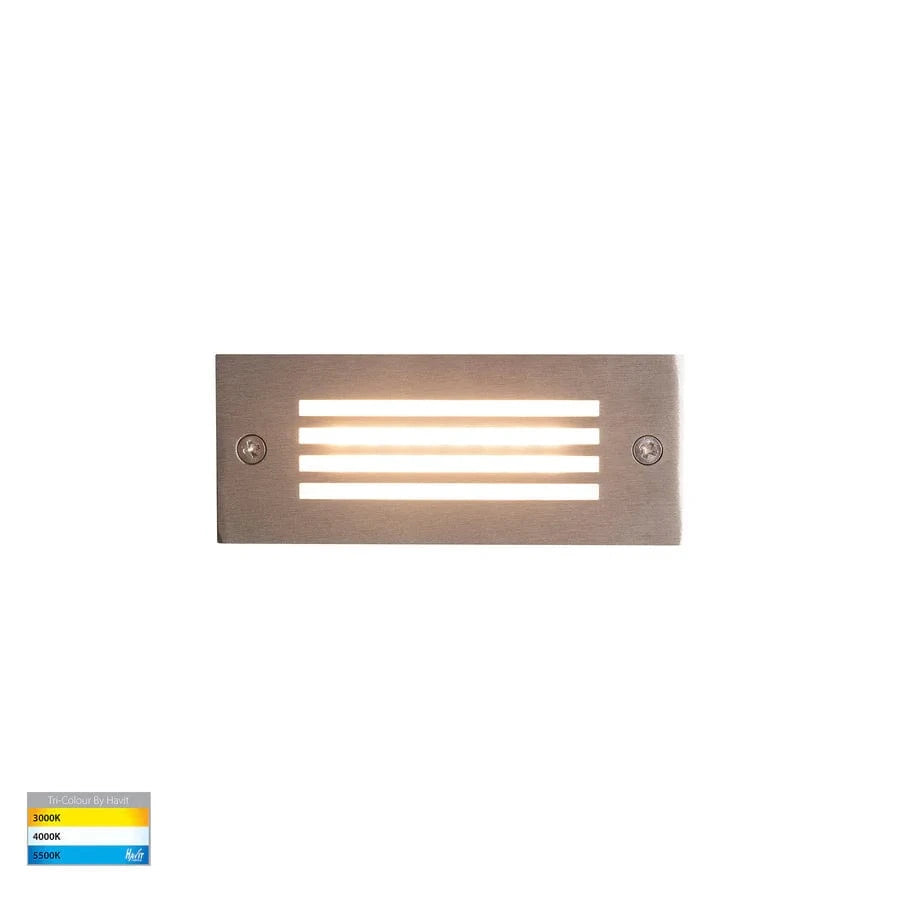

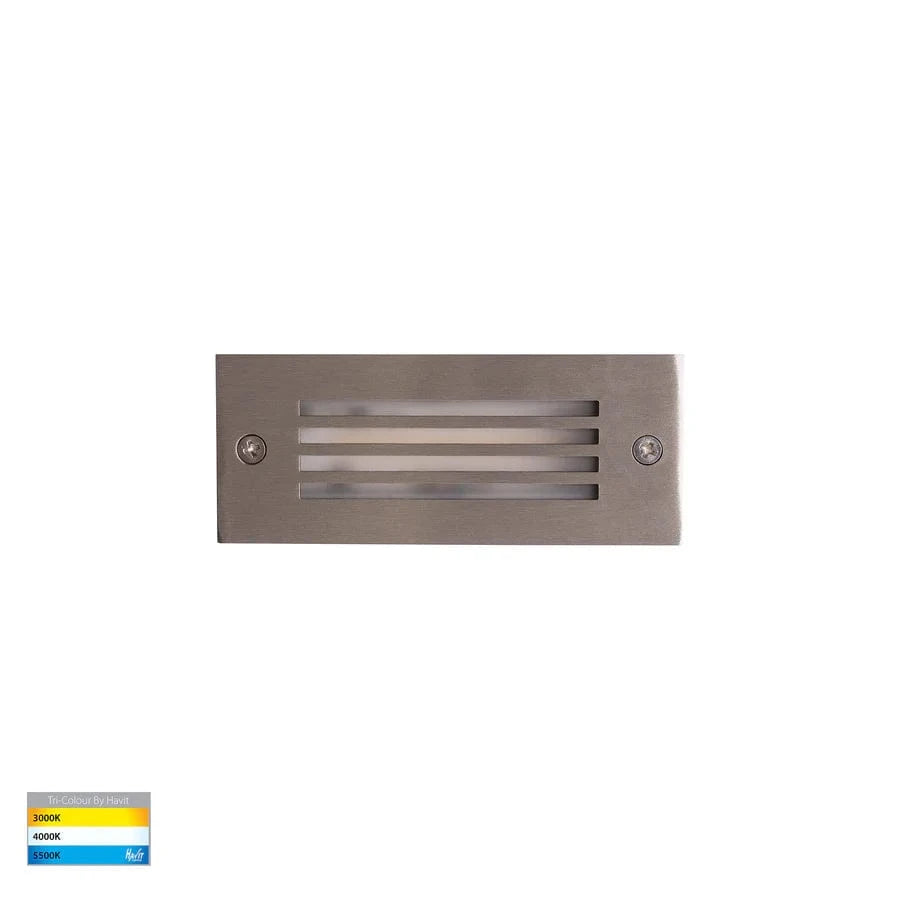

xThe grilled 3 W Bata in bare 316 marine-grade stainless is the version that ends up on coastal and poolside work. 316 carries molybdenum, which is what separates it from the 304 stainless that pits and browns near salt air, and the grill keeps the LED panel out of direct view at the height a brick light actually sits. It needs only a 105 × 41 mm aperture, which is what makes it viable in coping, a low retaining wall or a single skin of blockwork.
What the blades do on a brushed face
Two things. They cut the glare, which matters most where the fitting is approached head-on — a path, a pool surround, a set of steps. And they give the brushed metal edges to catch light on, so the face reads as a detail in daylight instead of a blank plate. Dimensionally and electrically it is identical to the plain-faced HV3007T-SS316; the choice is visual.
The maintenance that protects the warranty
Havit's sheet requires that all 316 stainless fittings have regular cleaning maintenance to avoid tea staining, and states that tea staining is not covered by the warranty. A grilled face has more edges and shaded pockets for airborne salt to settle into than a plain one, so on a beachfront job treat the rinse as part of the maintenance schedule rather than an afterthought. Part HV9971 is Havit's stainless kit — a rejuvenating paste plus a protective spray — for a face that has already bloomed. The same sheet asks that aluminium, 304 stainless and powder-coated 316 stainless fittings be kept 5 km from salt water; this cover is uncoated 316, but the body behind it is aluminium.
Cutting for it

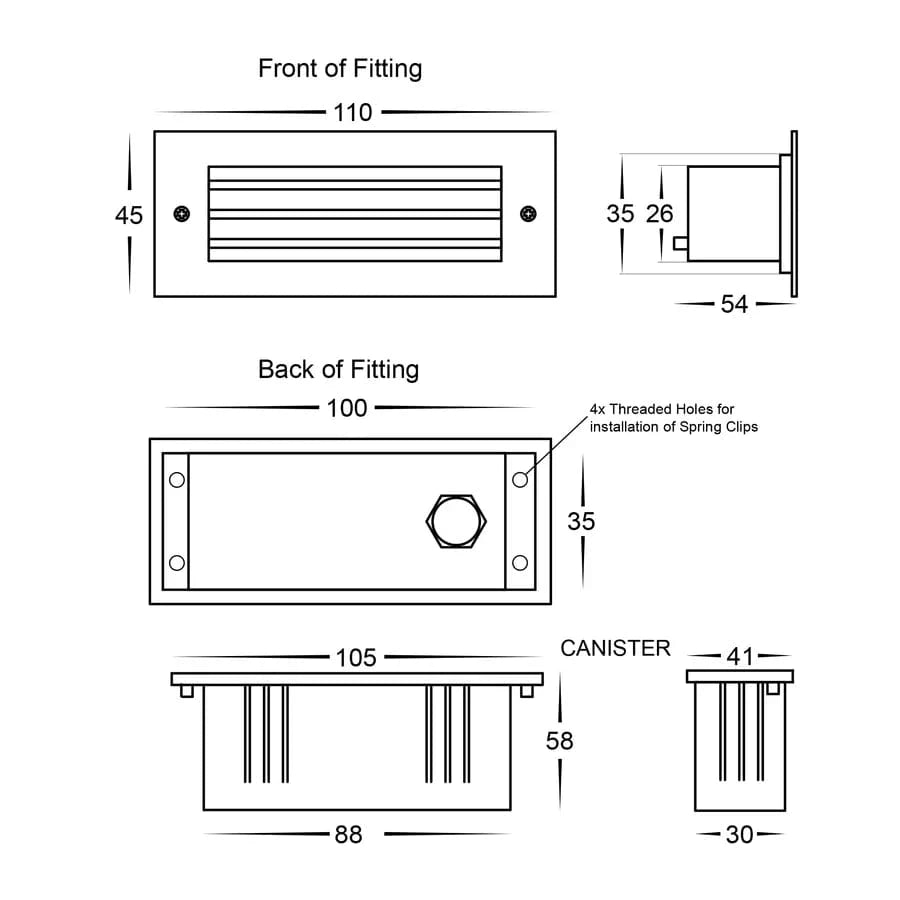

105 × 41 mm with the canister, 103 × 35 mm without, 58 mm of depth. The installation sheet and Havit's product page agree exactly, which is not true of every fitting in this range. The 6 W Bata takes 159 × 58 mm, so the two sizes cannot be exchanged in a finished wall. Spring clips for gyprock ship alongside the canister option.
Electrical
240 V is Protection Class 1 and requires an earth. 12 V DC is Class 3, no earth, and must run from a 12 V DC LED driver — never straight off mains. Keep a 12 V fitting within 25 m of that driver and supply within ±5% of rated voltage, or the warranty is void. Wiring is parallel; Havit lists gel-filled IP67 connectors (HV9911, HV9912, HV9913) for sealing the 150 mm tail if you would rather not solder and heat-shrink inside a wall cavity.
Numbers
IP54, IK06, 120° beam, CRI above 80, frosted tempered glass, and a built-in 3 W LED on a replaceable panel with no globe and no socket. The slide switch gives 3000 K, 4000 K or 5500 K at 240, 255 and 270 lumens. It does not dim on either supply.
Lights For You carries the stainless grilled Bata in both voltages with a three-year replacement warranty.
Questions
Why choose 316 over 304 stainless?
316 contains molybdenum and resists chloride attack. Near salt air 304 pits and browns within a season or two.
Is tea staining covered by the warranty?
No. Havit requires regular cleaning of 316 stainless fittings to prevent it and excludes it explicitly. The HV9971 kit is listed for restoring a bloomed face.
What aperture and depth does it need?
105 × 41 mm with the canister, 103 × 35 mm without, and 58 mm of depth.
Can it be dimmed?
No, on either supply voltage — both Havit documents for this model say so.
How should the cable joint be made?
Soldered and heat-shrunk, or with a gel-filled IP67 connector — Havit lists the HV9911, HV9912 and HV9913. An unsealed joint voids the warranty.
Will it fit a 6 W Bata’s hole?
No. The 6 W takes 159 × 58 mm against this fitting’s 105 × 41.
What is the maximum run from the driver?
25 m on 12 V with supply within ±5% of rated voltage.
Product Specifications
xSpecifications
| Brand | Havit Lighting |
|---|---|
| Model / SKU | HV3008T-SS316 — in 240V and 12V |
| Type | Outdoor LED brick light — recessed |
| Face | Grill (the plain-faced version is the HV3007T) |
| Finish | Bare 316 marine-grade stainless steel face and grill |
| Body | Powder coated die-cast aluminium |
| Diffuser | Frosted tempered glass |
| Installation Type | Wall — recessed; canister, or the supplied clips in gyprock |
| Cut-Out — with canister | 105mm × 41mm |
| Cut-Out — without canister | 103mm × 35mm |
| Installation Depth | 58mm |
| Input Voltage | 240V AC or 12V DC, by order code |
| Wattage | 3W |
| Lumen Output | 240 lm at 3000K / 255 lm at 4000K / 270 lm at 5500K |
| Colour Temperature | TRI Colour: 3000K / 4000K / 5500K — slide switch on the LED panel, preset 3000K |
| Beam Angle | 120° |
| IP Rating | IP54 |
| IK Rating | IK06 |
| Lamp Base | Built-in LED — no globe or socket; the LED panel is replaceable |
| Protection Class | 240V = Class 1, earth required · 12V DC = Class 3, no earth required |
| Dimming | No — not dimmable on either supply voltage |
| Driver | 12V code requires a 12V DC LED driver; the 240V code requires none |
| Cable Length | 150mm |
| Wiring | Parallel |
| CRI | >80 |
| Maintenance | Regular cleaning required — tea staining is excluded from the warranty (kit HV9971) |
| Max Driver Distance | 25m on 12V, supply within ±5% (exceeding this voids the warranty) |
| Warranty | 3-year replacement |
Variant specifications
| Order code | Supply | Earth | Driver | Dimming | Colour temp | Lumens |
|---|---|---|---|---|---|---|
| HV3008T-SS316-240V | 240V AC | required — Class 1 | not required | NO | 3000K / 4000K / 5500K | 240 / 255 / 270 lm |
| HV3008T-SS316-12V | 12V DC | not required — Class 3 | 12V DC LED driver REQUIRED | NO | 3000K / 4000K / 5500K | 240 / 255 / 270 lm |
